| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2L-00771 | PUMP ASS'Y | 60041-60091 | ||
| 708-2L-00770 | PUMP ASS'Y | 60001-60040 | ||

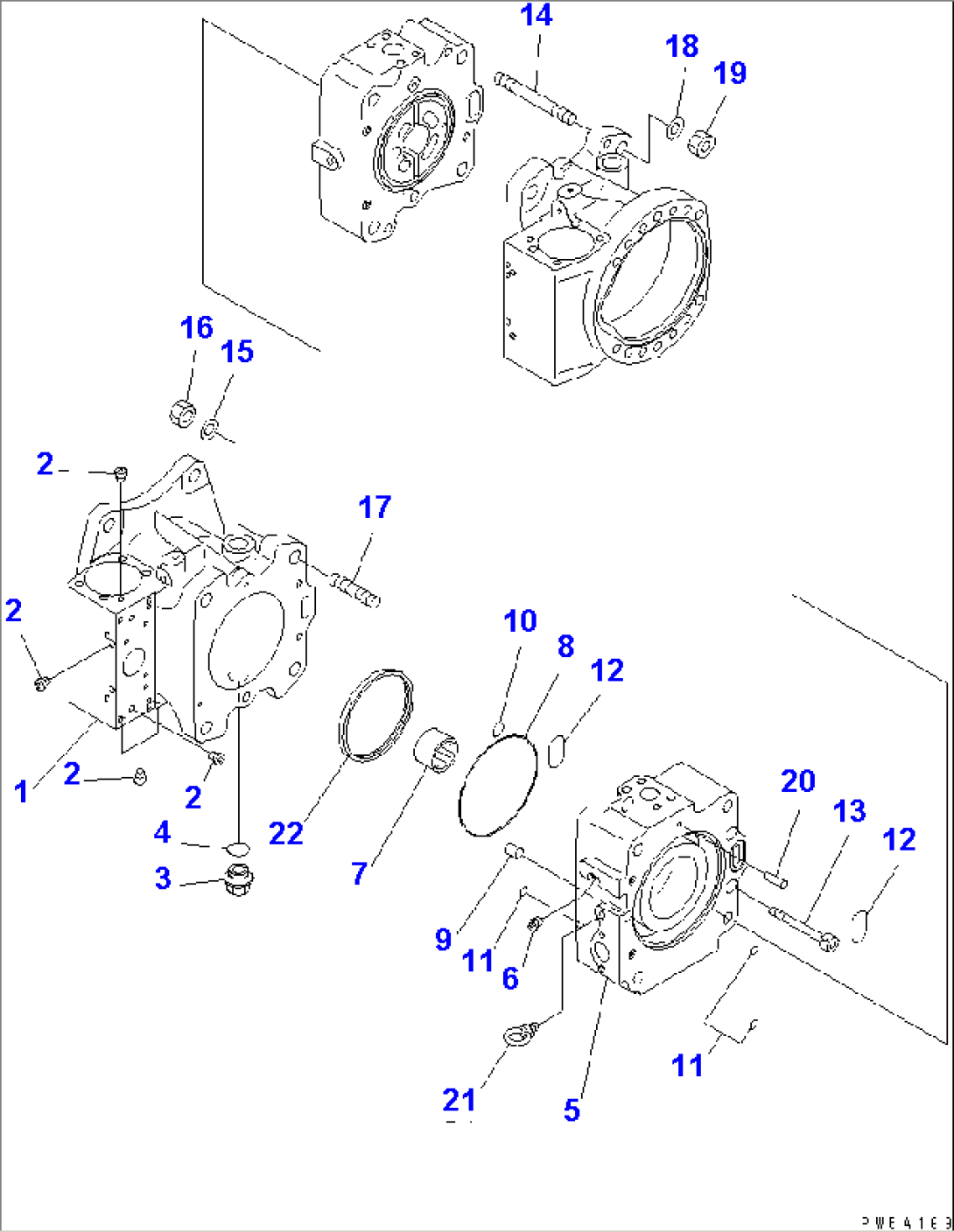

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0. | ||||
| (\7\708-2L-01632) | PUMP SUB ASS'Y | 60001-60091 | ||
| (\7\708-2L-04950) | CASE ASS'Y,FRONT | 60001-@ | ||
| 1 | \6\ | CASE,FRONT | 60001-@ | |
| 2 | \6\ | PLUG | 60001-@ | |
| 3 | 07044-12412 | PLUG | 60001-@ | |
| 4 | 07002-62434 | O-RING | 60001-@ | |
| (\7\708-2L-04970) | END CAP ASS'Y,FRONT | 60001-60091 | ||
| 5 | \6\ | CAP,END | 60001-60091 | |
| 6 | \6\ | PLUG | 60001-@ | |
| 7 | (\7\708-2L-32260) | BEARING | 60001-@ | |
| 8 | (\7\07000-B2135) | O-RING | 60001-@ | |
| 9 | (\7\6130-21-1910) | PIN,DOWEL | 60001-@ | |
| 10 | (\7\07000-B2015) | O-RING | 60001-60091 | |
| 11 | (\7\07000-B1009) | O-RING | 60001-@ | |
| 12 | (\7\07000-B3032) | O-RING | 60001-@ | |
| 13 | (\7\708-25-12530) | BOLT | 60001-@ | |
| 14 | (\7\01141-81620) | STUD | 60001-@ | |
| 15 | (\7\01643-31645) | WASHER | 60001-@ | |
| 16 | (\7\01582-01613) | NUT | 60001-@ | |
| 17 | (\7\01140-81645) | STUD | 60001-@ | |
| 18 | (\7\01643-31645) | WASHER | 60001-@ | |
| 19 | (\7\01582-01613) | NUT | 60001-@ | |
| 20 | (\7\720-68-19610) | PIN | 60001-@ | |
| 21 | 04530-11018 | BOLT,EYE | 60001-@ | |
| 22 | (\7\708-25-13630) | RING | 60001-@ |
