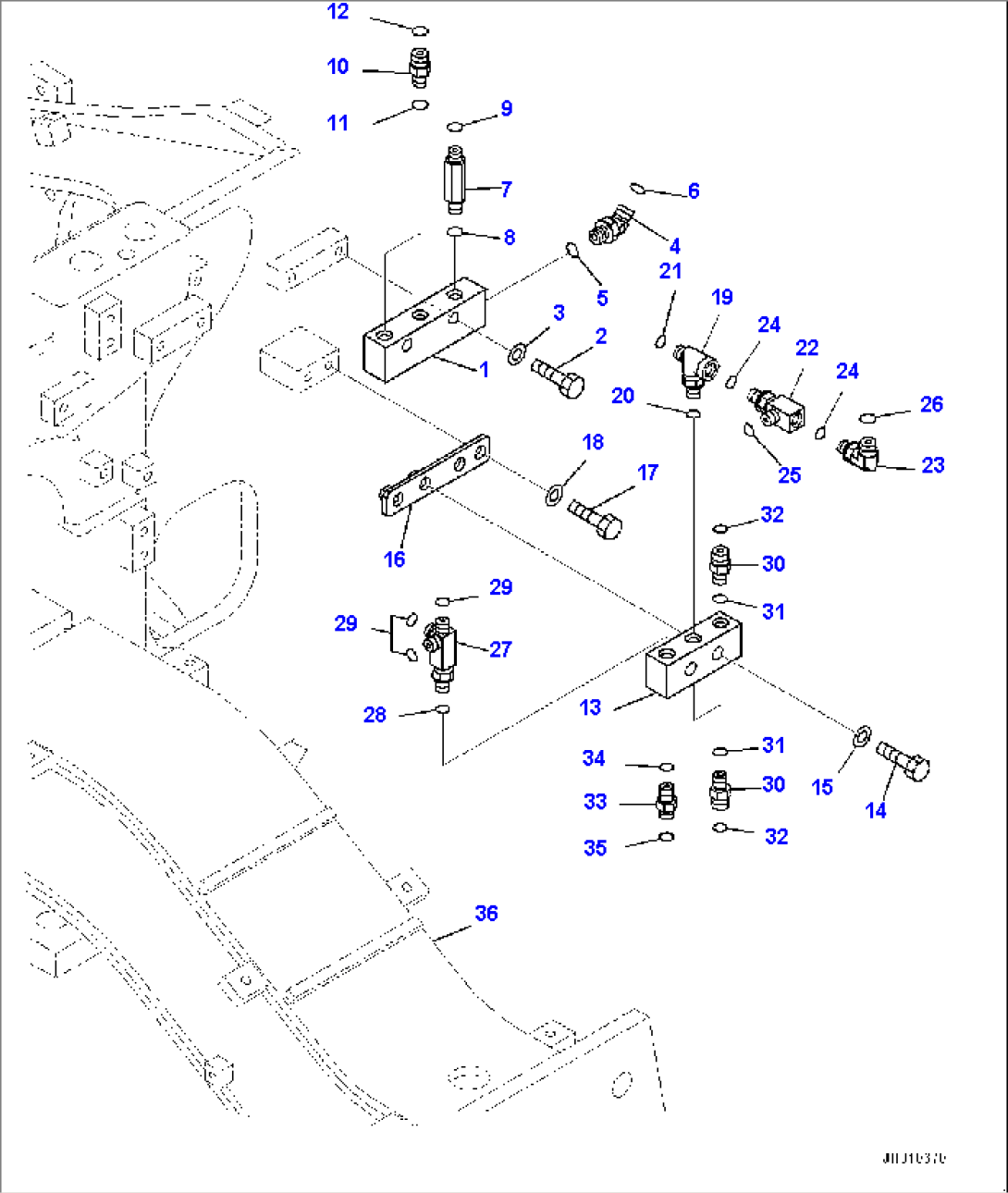

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 196-61-22211 | Block | 15479- | |
| 2 | 01010-81255 | Bolt | 15479- | |
| 3 | 01643-31232 | Washer | 15479- | |
| 4 | 02783-10210 | Elbow | 15479- | |
| 5 | 07002-51423 | O-ring | 15479- | |
| 6 | 02896-51008 | O-ring | 15479- | |
| 7 | 11Y-62-12780 | Nipple | 15479- | |
| 8 | 07002-51423 | O-ring | 15479- | |
| 9 | 02896-51008 | O-ring | 15479- | |
| 10 | 02781-0031D | Union | 15479- | |
| 11 | 07002-51423 | O-ring | 15479- | |
| 12 | 02896-51009 | O-ring | 15479- | |
| 13 | 196-61-22221 | Block | 15479- | |
| 14 | 01010-81255 | Bolt | 15479- | |
| 15 | 01643-31232 | Washer | 15479- | |
| 16 | 196-61-22230 | Bracket | 15479- | |
| 17 | 01010-81230 | Bolt | 15479- | |
| 18 | 01643-31232 | Washer | 15479- | |
| 19 | 22B-62-15840 | Tee | 15479- | |
| 20 | 07002-51423 | O-ring | 15479- | |
| 21 | 02896-51008 | O-ring | 15479- | |
| 22 | 20Y-62-45720 | Tee | 15479- | |
| 23 | 02782-10311 | Elbow | 15479- | |
| 24 | 07002-51423 | O-ring | 15479- | |
| 25 | 02896-51008 | O-ring | 15479- | |
| 26 | 02896-51009 | O-ring | 15479- | |
| 27 | 196-61-22380 | Tee | 15479- | |
| 28 | 07002-51423 | O-ring | 15479- | |
| 29 | 02896-51008 | O-ring | 15479- | |
| 30 | 02781-0031D | Union | 15479- | |
| 31 | 07002-51423 | O-ring | 15479- | |
| 32 | 02896-51009 | O-ring | 15479- | |
| 33 | 02781-0021D | Union | 15479- | |
| 34 | 07002-51423 | O-ring | 15479- | |
| 35 | 02896-51008 | O-ring | 15479- | |
| 36 | (196-71-51120) | Frame | - |
