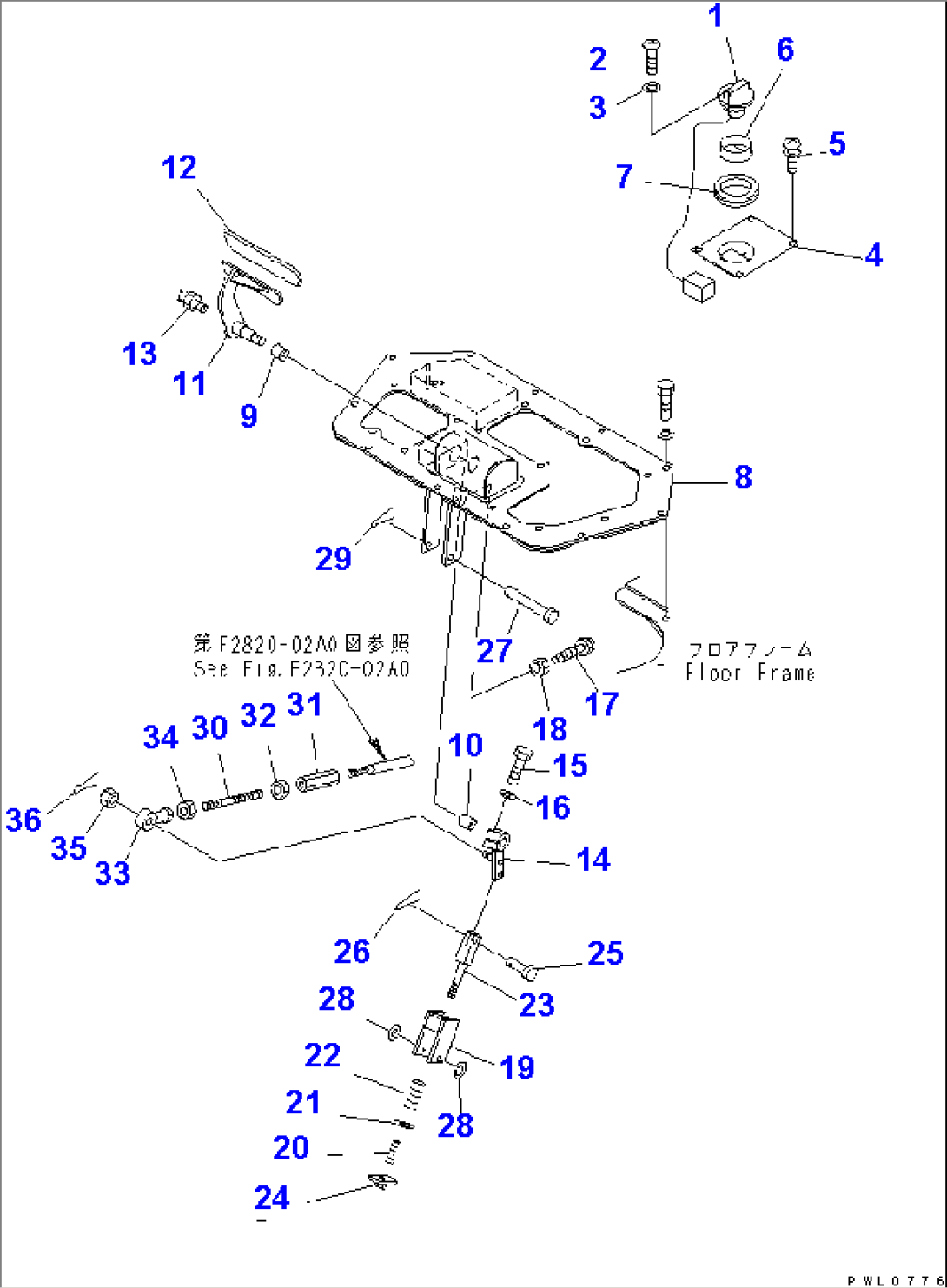

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7825-30-1301 | DIAL,FUEL | 10601- | |
| 2 | 01220-40408 | SCREW | 10601- | |
| 3 | 01641-20405 | WASHER | 10601- | |
| 4 | 17A-54-16731 | COVER | 10601- | |
| 5 | 01023-20812 | SCREW | 10601- | |
| 6 | 17A-06-11410 | COVER | 10601- | |
| 7 | 581-35-15430 | GROMMET | 10601- | |
| 8 | 198-43-51192 | FLOOR | 10601- | |
| 9 | 06124-03020 | BEARING | 10601- | |
| 10 | 06124-02020 | BEARING | 10601- | |
| 11 | 17A-43-24130 | PEDAL | 10601- | |
| 12 | 14X-43-12110 | PEDAL CAP | 10601- | |
| 13 | 07020-00000 | FITTING,GREASE | 10601- | |
| 14 | 17A-43-24140 | LEVER | 10601- | |
| 15 | 01010-81245 | BOLT | 10601- | |
| 16 | 01643-51232 | WASHER | 10601- | |
| 17 | 113-43-21340 | BUMPER | 10601- | |
| 18 | 01580-11008 | NUT | 10601- | |
| 19 | 14X-43-12250 | HOLDER | 10601- | |
| 20 | 205-43-51470 | SPRING | 10601- | |
| 21 | 01641-21223 | WASHER | 10601- | |
| 22 | 700-84-11660 | SPRING | 10601- | |
| 23 | 04244-41212 | ROD | 10601- | |
| 24 | 14X-43-12260 | PLATE | 10601- | |
| 25 | 04205-11238 | PIN | 10601- | |
| 26 | 04050-13022 | PIN,COTTER | 10601- | |
| 27 | 14X-43-11270 | PIN | 10601- | |
| 28 | 01641-21223 | WASHER | 10601- | |
| 29 | 04050-13022 | PIN,COTTER | 10601- | |
| 30 | 14X-43-12410 | ROD | 10601- | |
| 31 | 17A-43-24160 | JOINT | 10601- | |
| 32 | 01508-41408 | NUT | 10601- | |
| 33 | 04250-81474 | END | 10601- | |
| 34 | 01582-11411 | NUT | 10601- | |
| 35 | 01593-31411 | NUT | 10601- | |
| 36 | 04050-13022 | PIN,COTTER | 10601- |
