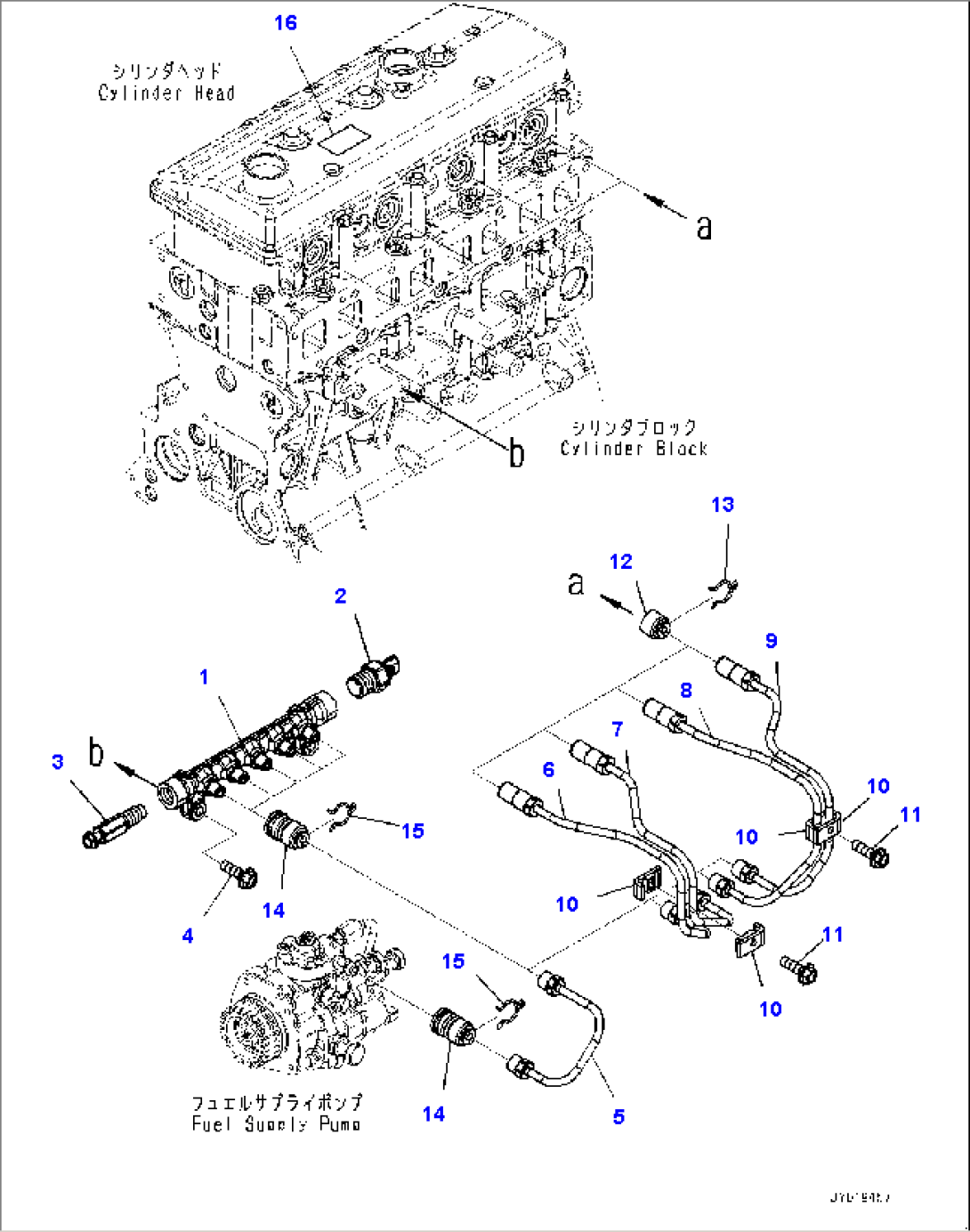

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6276-71-1210 | Common Rail Assembly | 800001- | |
| 2 | 6275-71-2210 | Sensor, Pressure | 800001- | |
| 3 | 6275-71-2310 | Valve | 800001- | |
| 4 | 01435-01035 | Bolt | 800001- | |
| 5 | 6275-71-5210 | Tube | 800001- | |
| 6 | 6276-71-5110 | Tube | 800001- | |
| 7 | 6276-71-5120 | Tube | 800001- | |
| 8 | 6276-71-5130 | Tube | 800001- | |
| 9 | 6276-71-5140 | Tube | 800001- | |
| 10 | 6217-71-6650 | Clamp | 800001- | |
| 11 | 01435-00630 | Bolt | 800001- | |
| 12 | 6275-71-9711 | Cover | 800001- | |
| 13 | 6754-71-5750 | Clip | 800001- | |
| 14 | 6217-71-9791 | Cover | 800001- | |
| 15 | 6754-71-5750 | Clip | 800001- | |
| 16 | 6271-81-2981 | Plate, Caution | 800001- |
