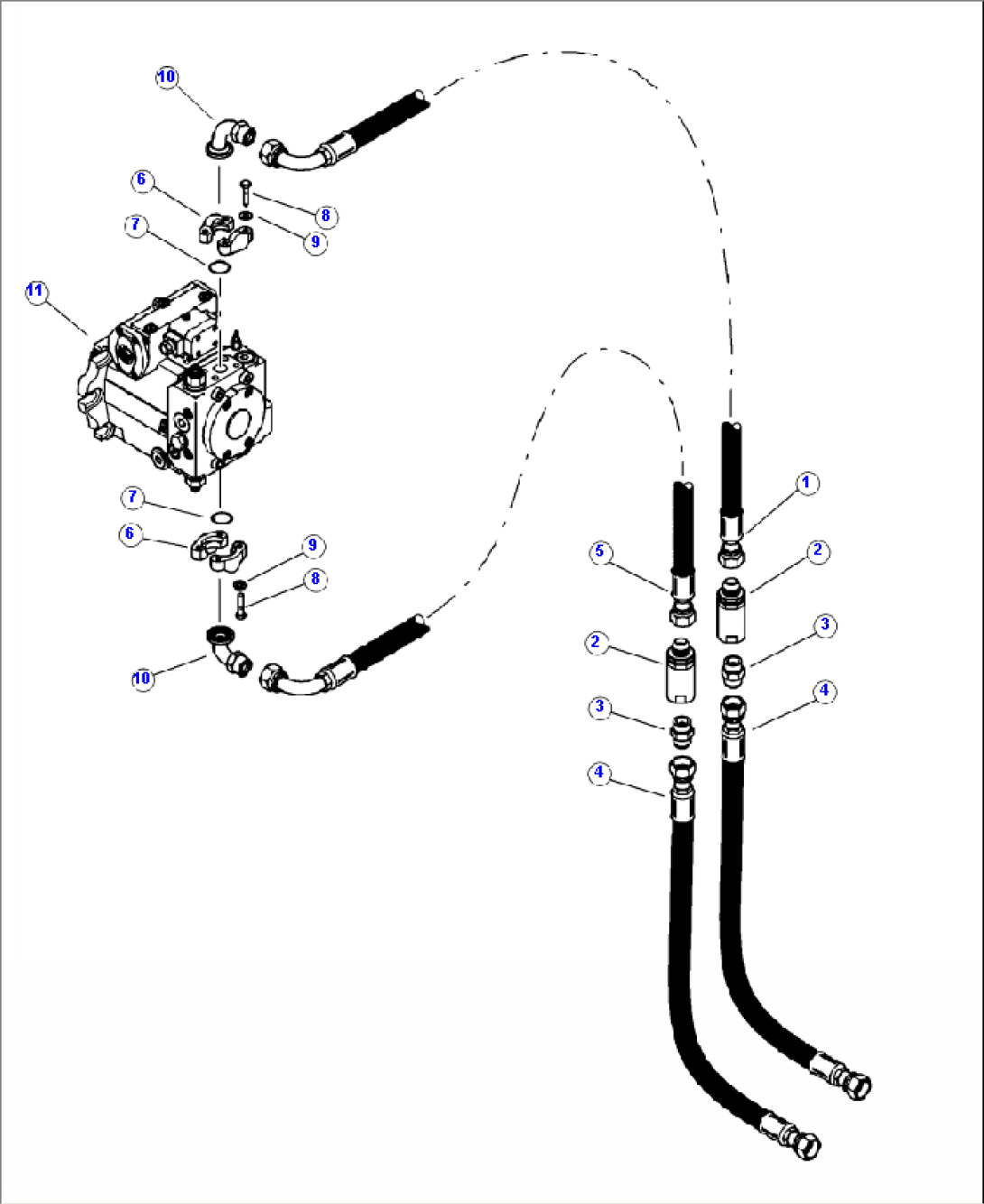

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17074KF | HOSE ASSEMBLY (6081-16-16JS-16J9) | ||
| 2 | 19541KF | SWIVEL, INLINE (PS1610310-16-16-716) | ||
| 3 | 15497KF | CONNECTOR, STR (6400-16) | ||
| 4 | 17026KF | HOSE ASSEMBLY (16HT6KW-16FJ-51 IN) | ||
| 5 | 17073KF | HOSE ASSEMBLY (6075-16-16JS-16J9) | ||
| 15113KF | FLANGE KIT, SPLIT | |||
| 6 | (NSS) | FLANGE | ||
| 7 | (NSS) | O-RING | ||
| 8 | (NSS) | BOLT | ||
| 9 | (NSS) | WASHER | ||
| 10 | 17688KF | ELBOW, 90 DEGREE | ||
| 11 | PUMP, LEFT TRACK DRIVE (NON-THRU) ( SEE FIG. H0242-01A0 ) |
