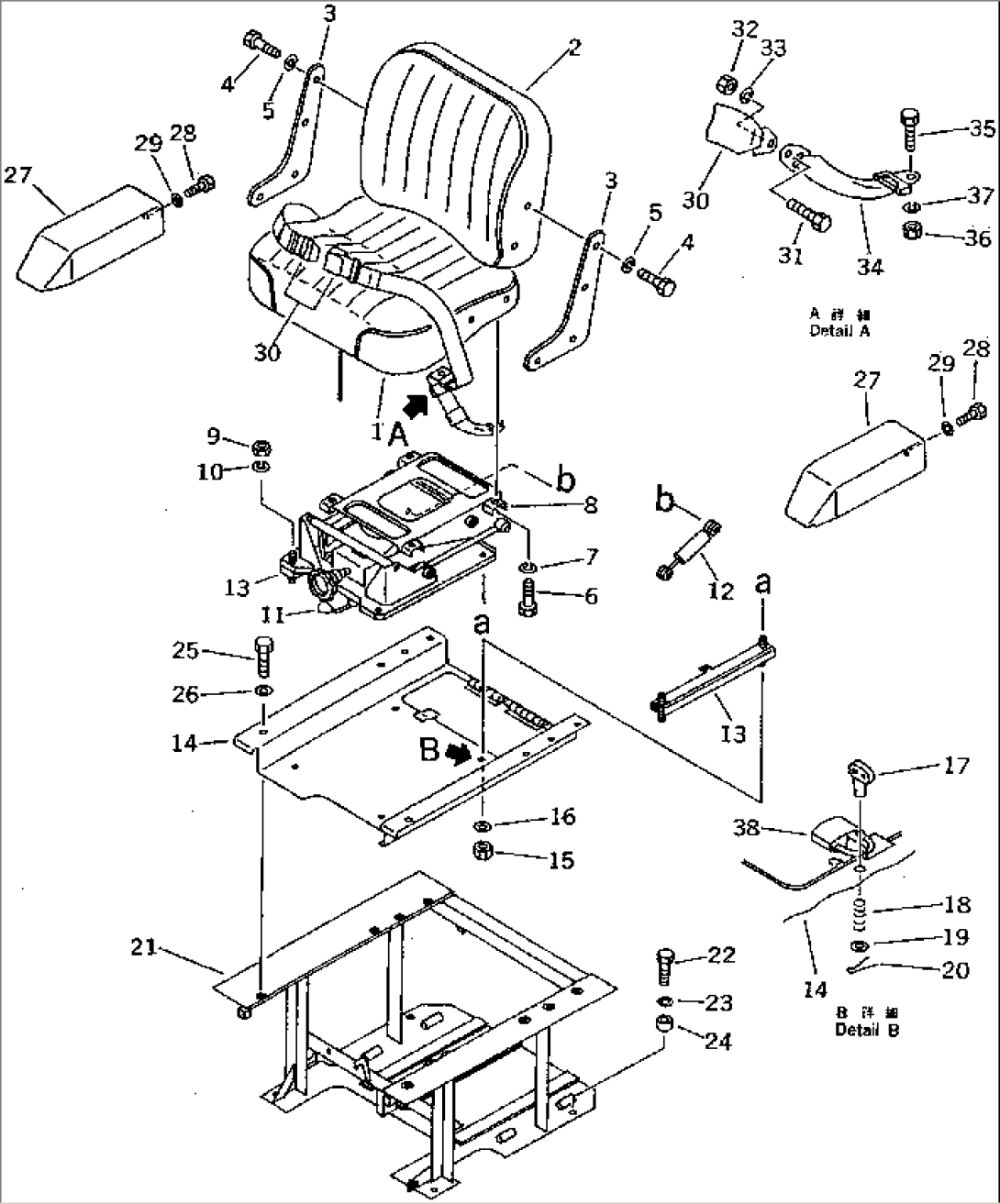

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 113-57-42420 | CUSHION | 45001-45824 | |
| 2 | 103-57-31420 | CUSHION,BACK | 45001-45824 | |
| 3 | 120-57-31461 | PLATE | 45001-45824 | |
| 4 | 01010-81020 | BOLT | 45001-45824 | |
| 5 | 01602-21030 | WASHER,SPRING | 45001-45824 | |
| 6 | 01010-81020 | BOLT | 45001-45824 | |
| 7 | 01602-21030 | WASHER,SPRING | 45001-45824 | |
| 8 | 113-57-42100 | SUSPENSION ASS'Y | 45001-45824 | |
| 9 | 01580-11210 | NUT | 45001-45824 | |
| 10 | 01602-21236 | WASHER,SPRING | 45001-45824 | |
| 11 | 09304-00835 | KNOB | 45001-45824 | |
| 12 | 120-57-31411 | DAMPER,OIL | 45001-45824 | |
| 13 | 155-57-12150 | ADJUSTER | 45001-45824 | |
| 14 | 113-57-41212 | PLATE | 45001-@ | |
| 113-57-49242 | PLATE,(FOR TOWING WINCH) (D31P) | 45001-@ | ||
| 15 | 01580-11210 | NUT | 45001-@ | |
| 16 | 01643-31232 | WASHER | 45001-@ | |
| 17 | 09459-11033 | LOCK | 45001-@ | |
| 18 | 09459-01614 | SPRING | 45001-@ | |
| 19 | 01642-01016 | WASHER | 45001-@ | |
| 20 | 04050-13015 | PIN,COTTER | 45001-@ | |
| 21 | 114-57-48111 | FRAME | 45001-@ | |
| 114-57-49132 | FRAME,(FOR REAR ATTACHMENT) | 45001-@ | ||
| 22 | 01010-81460 | BOLT | 45001-@ | |
| 23 | 01643-31445 | WASHER | 45001-@ | |
| 24 | 198-21-12240 | BOSS | 45001-@ | |
| 25 | 01010-81025 | BOLT | 45001-@ | |
| 26 | 01643-31032 | WASHER | 45001-@ | |
| 27 | 114-57-41140 | REST,ARM | 45001-@ | |
| 28 | 01010-81020 | BOLT | 45001-@ | |
| 29 | 01643-31032 | WASHER | 45001-@ | |
| 30 | 09409-10001 | BELT¤ LAP | 45001-@ | |
| 31 | \6\ | BOLT | 45001-@ | |
| 32 | \6\ | NUT | 45001-@ | |
| 33 | \6\ | WASHER,SPRING | 45001-@ | |
| 34 | 09409-20000 | BELT¤ TETHER | 45001-@ | |
| 35 | \6\ | BOLT | 45001-@ | |
| 36 | \6\ | NUT | 45001-@ | |
| 37 | \6\ | WASHER,SPRING | 45001-@ | |
| 38 | 09460-00000 | LOCK | 45001-@ |
