| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-57-41800) | SEAT ASS'Y,(SEE FIG. Y1570-01A4) | 20001- | |
| 2 | 01252-80825 | BOLT | 20001- | |
| 3 | 20Y-57-41211 | BRACKET | 20001- | |
| 4 | 01010-D0825 | BOLT | 20001- | |
| 5 | 01643-70823 | WASHER | 20001- | |
| 6 | 01643-11232 | WASHER | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc270 8 s/n 20001 up (tier3) (overseas version)
- Operator's compartment and control system
- Operator's seat (pvc leather)
Поиск по каталогу

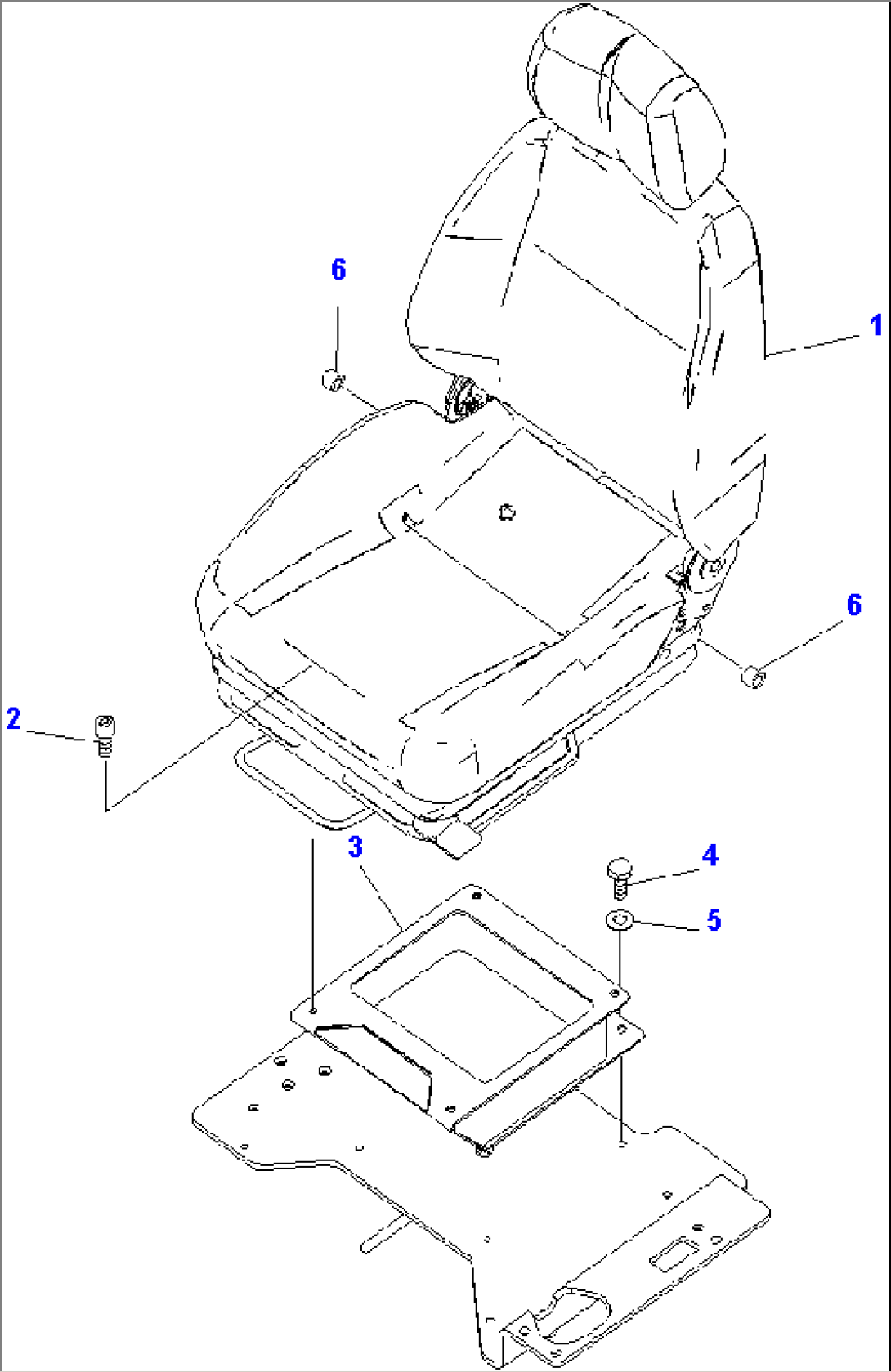

OPERATOR'S SEAT (PVC LEATHER)
