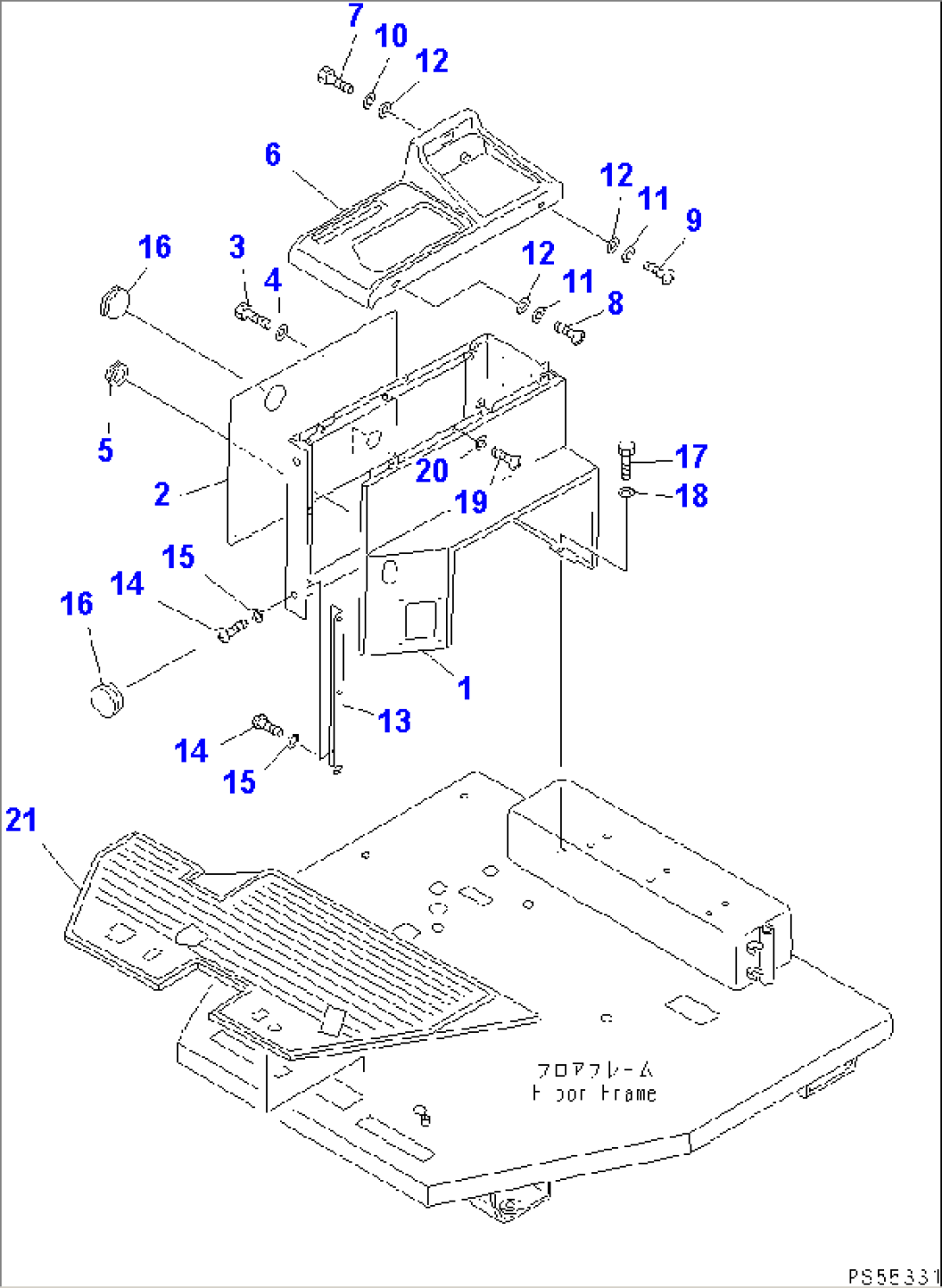

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23F-54-11321 | BOX | 11014- | |
| 23F-54-11320 | BOX | 11001-11013 | ||
| 2 | 23F-54-11310 | COVER | 11002- | |
| 23F-843-1170 | COVER,(MODIFIED PARTS) | 11001-11001 | ||
| 3 | 01010-80625 | BOLT | .- | |
| \0\01010-50625 | BOLT | 11001-. | ||
| 4 | 01643-30623 | WASHER | 11001- | |
| 5 | 08037-02512 | GROMMET | 11001- | |
| 6 | 23B-54-12221 | COVER,CONSOLE | 11001- | |
| 7 | 01010-80630 | BOLT | .- | |
| \0\01010-50630 | BOLT | 11001-. | ||
| 8 | 01220-40616 | SCREW | 11001- | |
| 9 | 01220-40630 | SCREW | 11001- | |
| 10 | 01642-20608 | WASHER | 11001- | |
| 11 | 01643-30623 | WASHER | 11001- | |
| 12 | 23D-54-21310 | SEAT | 11001- | |
| 13 | 23B-54-12230 | PLATE | 11001- | |
| 14 | 01220-40620 | SCREW | 11001- | |
| 15 | 01641-20608 | WASHER | 11001- | |
| 16 | 09415-02520 | CAP | 11001- | |
| 17 | 01010-81225 | BOLT | .- | |
| \0\01010-51225 | BOLT | 11001-. | ||
| 18 | 01643-31232 | WASHER | 11001- | |
| 19 | 01220-40620 | SCREW | 11001- | |
| 20 | 01643-30623 | WASHER | 11001- | |
| 21 | 23F-54-11240 | MAT,FLOOR | 11022- | |
| 23A-54-26161 | MAT,FLOOR | 11014-11021 | ||
| 23A-54-26160 | MAT,FLOOR | 11002-11013 | ||
| 23F-54-11240 | MAT,FLOOR | 11001-11001 |
