| Item | Part No. | Part Name | Qty | Serial No. |

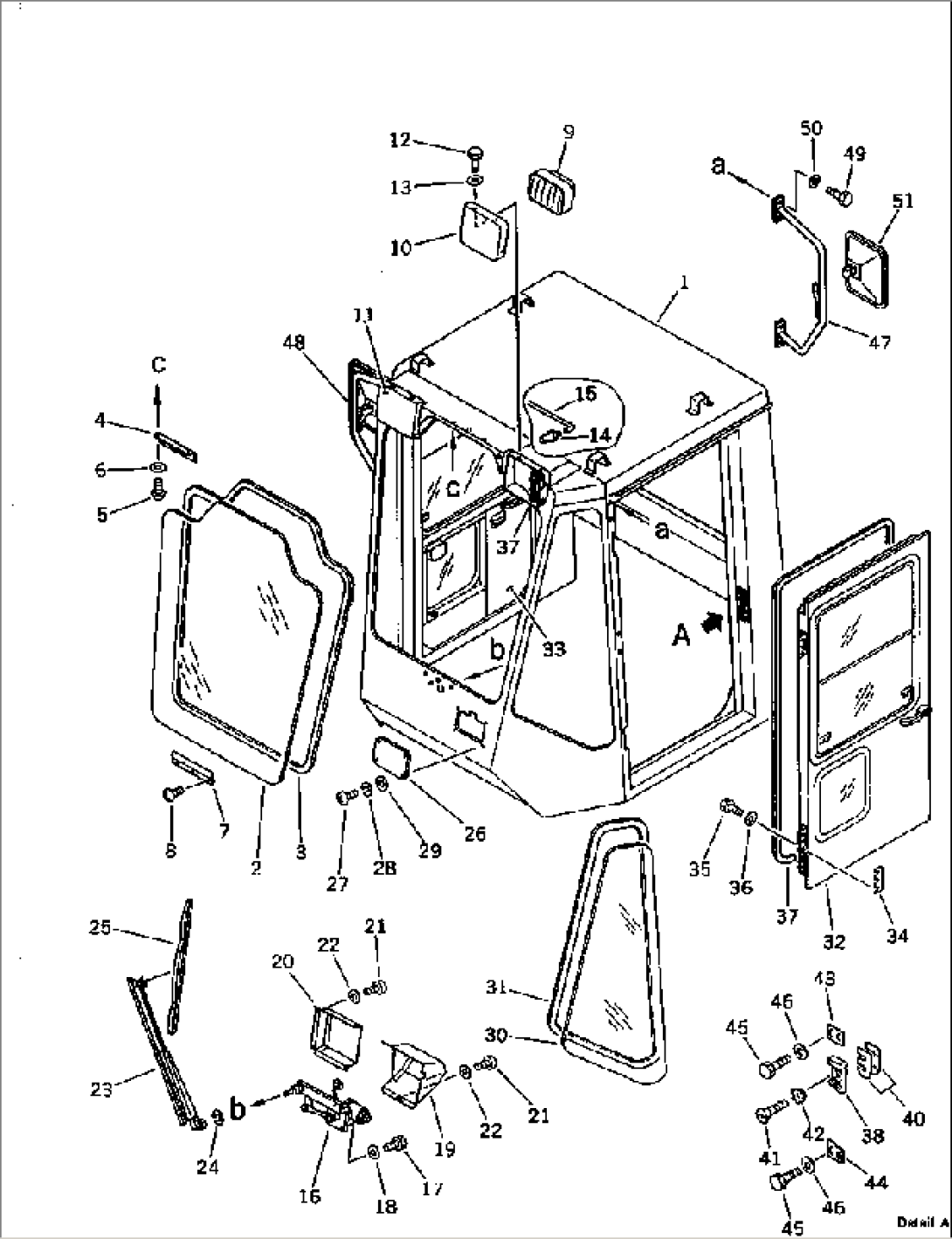

| (425-54-15040) | OPERATOR'S CAB ASS'Y | 10001-11060 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5511 TO 5516. | ||||
| 1 | \6\ | CAB | 10001-11060 | |
| 2 | 423-54-15550 | GLASS | 10001-11060 | |
| 3 | 425-54-15130 | STRIP,WEATHER | 10001-11060 | |
| 4 | 425-54-15841 | PLATE | 10001-11060 | |
| 5 | 01220-40508 | SCREW | 10001-11060 | |
| 6 | 01641-20508 | WASHER | 10001-11060 | |
| 7 | 425-54-15870 | PLATE | 10001-11060 | |
| 8 | 01370-00406 | SCREW | 10001-11060 | |
| 9 | 421-06-13202 | WORK LAMP ASS'Y | 10001-11060 | |
| 9 | 421-06-13120 | CUSHION | 10001-11060 | |
| 9 | 22W-06-12170 | BULB | 10001-11060 | |
| 10 | 425-54-15881 | COVER,L.H. | 10001-11060 | |
| 11 | 425-54-15891 | COVER,R.H. | 10001-11060 | |
| 12 | 01010-50612 | BOLT | 10001-11060 | |
| 13 | 01643-30623 | WASHER | 10001-11060 | |
| 14 | 421-54-15430 | NOZZLE | 10001-11060 | |
| 15 | 421-54-15440 | HOSE, 4300MM | 10001-11060 | |
| 16 | 425-54-15430 | MOTOR,WIPER | 10001-11060 | |
| 17 | 01010-50616 | BOLT | 10001-11060 | |
| 18 | 01643-30623 | WASHER | 10001-11060 | |
| 19 | 425-54-15850 | COVER,L.H. | 10001-11060 | |
| 20 | 425-54-15860 | COVER,R.H. | 10001-11060 | |
| 21 | 01220-40512 | SCREW | 10001-11060 | |
| 22 | 01642-20508 | WASHER | 10001-11060 | |
| 23 | 426-54-15232 | ARM,WIPER | 10001-11060 | |
| 24 | 01602-21030 | WASHER,SPRING | 10001-11060 | |
| 25 | 425-54-15250 | BLADE,WIPER | 10001-11060 | |
| 25 | 425-56-21220 | RUBBER | 10001-11060 | |
| 26 | 425-54-15950 | PLATE | 10001-11060 | |
| 27 | 01220-40616 | SCREW | 10001-11060 | |
| 28 | 01602-20619 | WASHER,SPRING | 10001-11060 | |
| 29 | 01641-20608 | WASHER | 10001-11060 | |
| 30 | 425-54-15112 | GLASS | 10001-11060 | |
| 31 | 425-54-15990 | STRIP,WEATHER | 10001-11060 | |
| 32 | (425-54-16021) | DOOR ASS'Y,R.H. | 10001-11060 | |
| 33 | (425-54-17021) | DOOR ASS'Y,L.H. | 10001-11060 | |
| 34 | 423-54-15750 | SHIM, 0.5MM | 10001-11060 | |
| 35 | 01010-50820 | BOLT | 10001-11060 | |
| 36 | 01643-31032 | WASHER | 10001-11060 | |
| 37 | 421-54-15730 | SEAL,DOOR | 10001-11060 | |
| 38 | 421-54-15740 | STRIKER,R.H. | 10001-11060 | |
| 39 | 421-54-15750 | STRIKER,L.H. | 10001-11060 | |
| 40 | 419-54-15690 | PLATE | 10001-11060 | |
| 41 | 01224-40820 | SCREW | 10001-11060 | |
| 42 | 421-54-15760 | WASHER | 10001-11060 | |
| 43 | 425-54-15680 | PLATE | 10001-11060 | |
| 44 | 425-54-15690 | PLATE | 10001-11060 | |
| 45 | 01010-50820 | BOLT | 10001-11060 | |
| 46 | 01643-30823 | WASHER | 10001-11060 | |
| 47 | 427-54-12641 | STAY,L.H. | 10001-11060 | |
| 48 | 427-54-12651 | STAY,R.H. | 10001-11060 | |
| 49 | 01010-51240 | BOLT | 10185-11060 | |
| 49 | 01010-51230 | BOLT | 10001-10184 | |
| 50 | 01643-31232 | WASHER | 10001-11060 | |
| 51 | 08174-33123 | MIRROR | 10304-11060 | |
| 51 | \0\08174-33023 | MIRROR | 10001-10303 |
