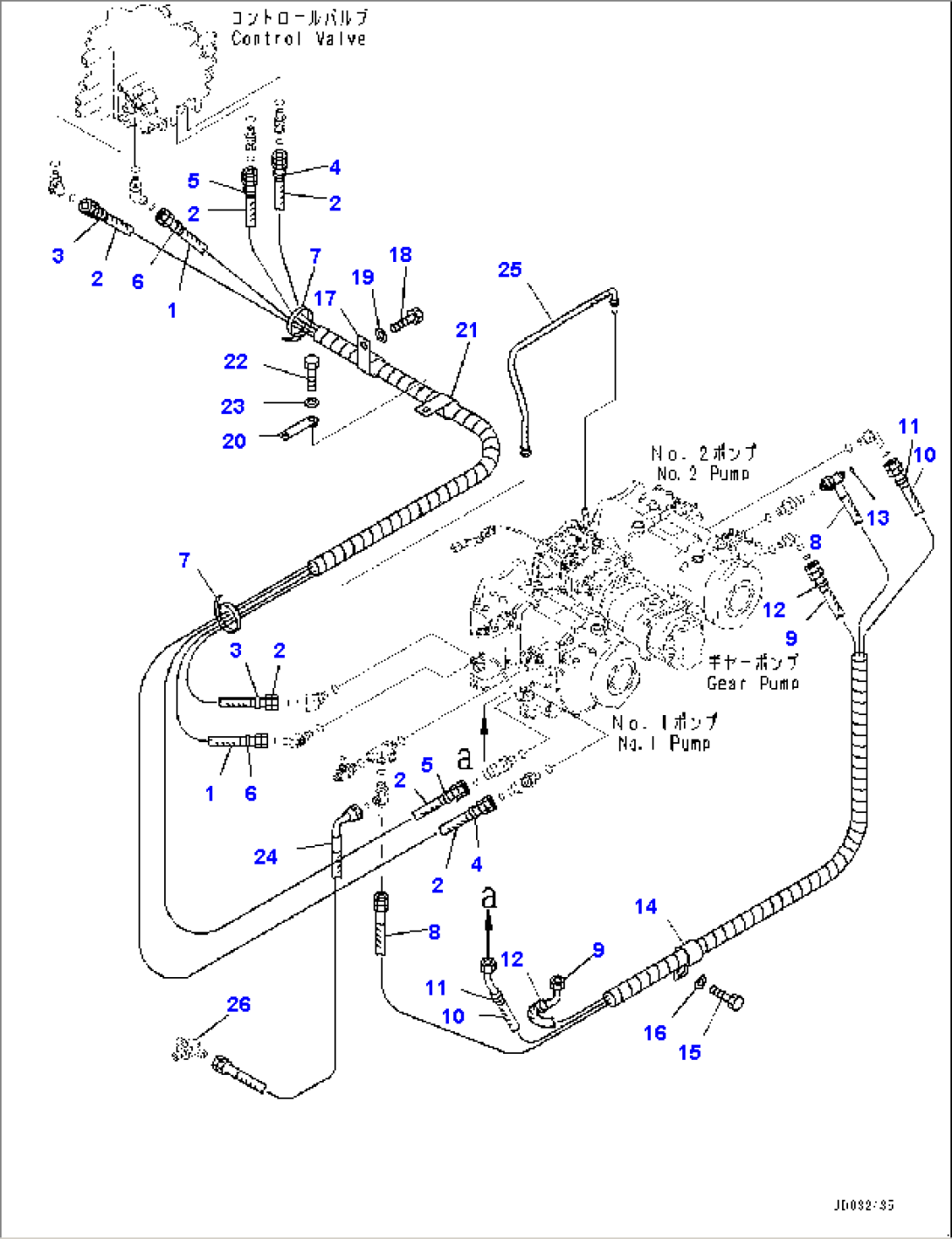

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02753-00315 | Hose, Face Seal Type | 65001- | |
| 2 | 02753-00317 | Hose, Face Seal Type | 65001- | |
| 3 | 20Y-62-22790 | Band, Red | 65001- | |
| 4 | 20Y-62-22810 | Band, Yellow | 65001- | |
| 5 | 20Y-62-22820 | Band, Blue | 65001- | |
| 6 | 20Y-62-22830 | Band, White | 65001- | |
| 7 | 08034-20536 | Band | 65001- | |
| 8 | 21M-62-14840 | Hose | 65001- | |
| 9 | 21M-62-22150 | Hose | 65001- | |
| 10 | 21M-62-32290 | Hose | 65001- | |
| 11 | 20Y-62-22840 | Band, Black | 65001- | |
| 12 | 20Y-62-22860 | Band, Brown | 65001- | |
| 13 | 02896-11009 | O-ring | 65001- | |
| 14 | 113-899-7950 | Clip | 65001- | |
| 15 | 01010-81225 | Bolt | 65001- | |
| 16 | 01643-31232 | Washer | 65001- | |
| 17 | 23T-62-12160 | Clip | 65001- | |
| 18 | 01010-81230 | Bolt | 65001- | |
| 19 | 01643-31232 | Washer | 65001- | |
| 20 | 20Y-06-21240 | Plate | 65001- | |
| 21 | 207-62-33690 | Clip | 65001- | |
| 22 | 01010-81230 | Bolt | 65001- | |
| 23 | 01643-31232 | Washer | 65001- | |
| 24 | 02763-003A7 | Hose, Face Seal Type | 65001- | |
| 25 | 02763-00305 | Hose, Face Seal Type | 65001- | |
| 26 | (21M-62-14420) | Tee | - | |
| (21M-62-14420) | Tee | - |
