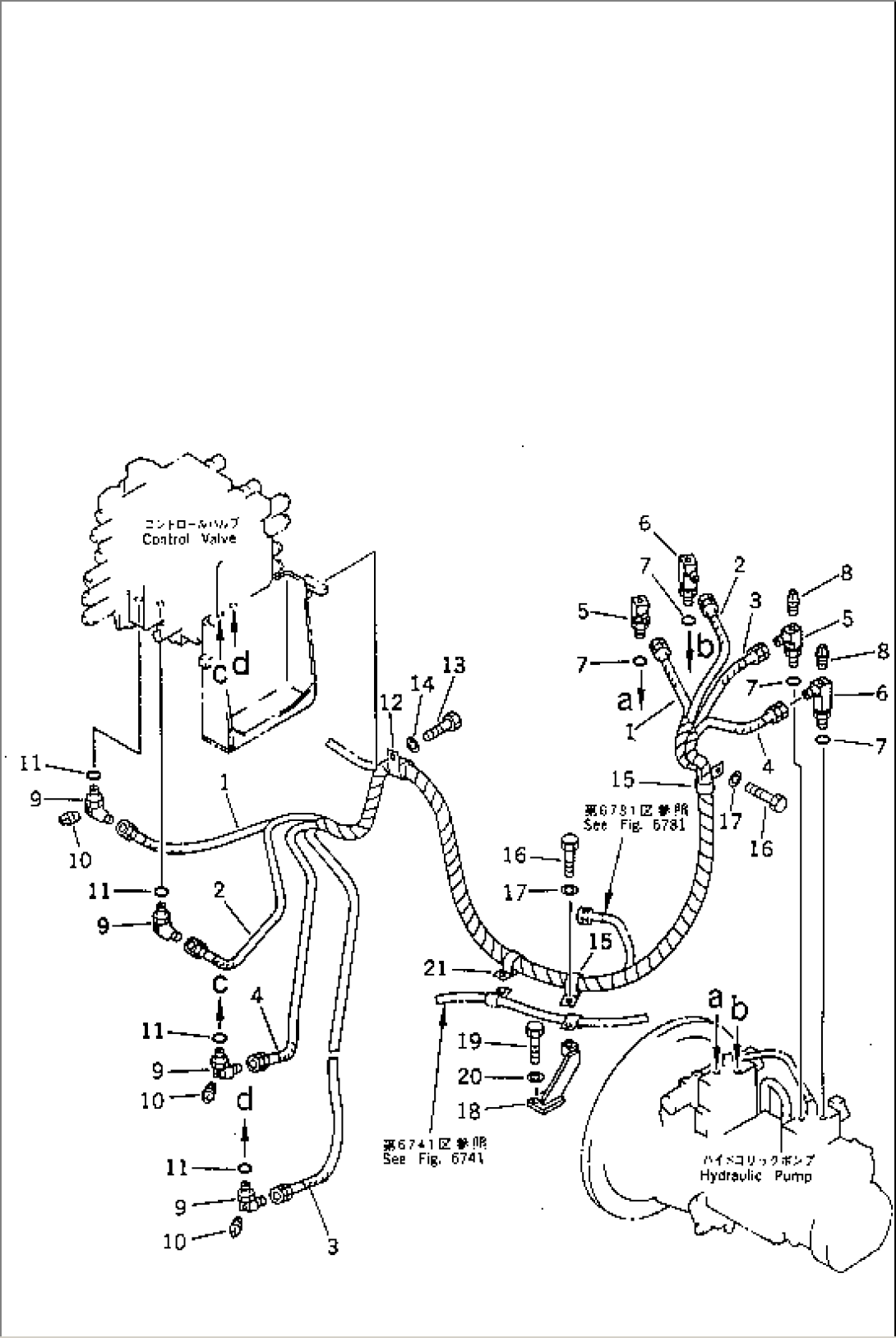

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-K1380 | HOSE,(BLUE) | K20001- | |
| 2 | 207-62-K1380 | HOSE,(RED) | K20001- | |
| 3 | 207-62-K1370 | HOSE,(GREEN) | K20001- | |
| 4 | 207-62-K1370 | HOSE,(YELLOW) | K20001- | |
| 5 | 20Y-62-11950 | ELBOW | K20001- | |
| 6 | 207-62-52740 | ELBOW | K20001- | |
| 7 | 07002-11423 | O-RING | K20001- | |
| 8 | 07042-30108 | PLUG | K20001- | |
| 9 | 20Y-62-17720 | ELBOW | K20001- | |
| 10 | 07042-30108 | PLUG | K20001- | |
| 11 | 07002-01423 | O-RING | K20001- | |
| 12 | 23T-62-12160 | CLIP | K20001- | |
| 13 | 01010-51225 | BOLT | K20001- | |
| 14 | 01643-31232 | WASHER | K20001- | |
| 15 | 208-06-19170 | CLIP | K20001- | |
| 16 | 01010-51225 | BOLT | K20001- | |
| 17 | 01643-31232 | WASHER | K20001- | |
| 18 | 207-62-52730 | BRACKET | K20001- | |
| 19 | 01010-51240 | BOLT | K20001- | |
| 20 | 01643-31232 | WASHER | K20001- | |
| 21 | 23T-62-12160 | CLIP | K20001- |
