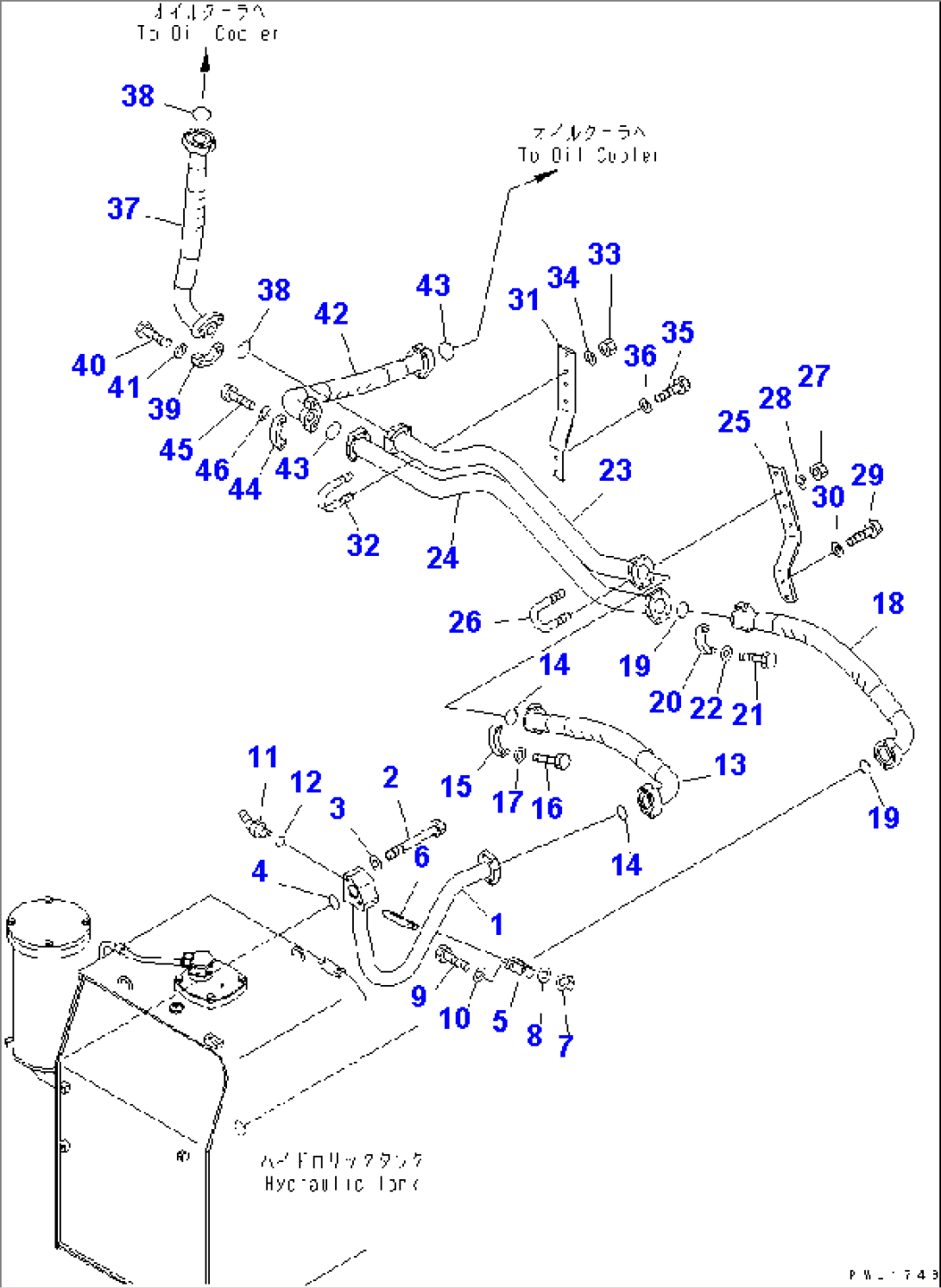

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21M-62-16111 | TUBE | 10001-10082 | |
| 2 | 01010-81290 | BOLT | 10001-10082 | |
| 3 | 01643-31232 | WASHER | 10001-10082 | |
| 4 | 07000-13045 | O-RING | 10001-10082 | |
| 5 | 198-61-32850 | BRACKET | 10001-10082 | |
| 6 | 07283-34949 | CLIP | 10001-10082 | |
| 7 | 01597-01009 | NUT | 10001-10082 | |
| 8 | 01643-31032 | WASHER | 10001-10082 | |
| 9 | 01010-81225 | BOLT | 10001-10082 | |
| 10 | 01643-31232 | WASHER | 10001-10082 | |
| 11 | 07236-10315 | ELBOW | 10001-10082 | |
| 12 | 07002-12034 | O-RING | 10001-10082 | |
| 13 | 07298-02008 | HOSE | 10001-@ | |
| 14 | 07000-12060 | O-RING | 10001-@ | |
| 15 | 07371-32076 | FLANGE | 10001-@ | |
| 16 | 07372-21240 | BOLT | 10001-@ | |
| 17 | 01643-51232 | WASHER | 10001-@ | |
| 18 | 07298-02009 | HOSE | 10001-@ | |
| 19 | 07000-12060 | O-RING | 10001-@ | |
| 20 | 07371-32076 | FLANGE | 10001-@ | |
| 21 | 07372-21240 | BOLT | 10001-@ | |
| 22 | 01643-51232 | WASHER | 10001-@ | |
| 23 | 21M-62-16121 | TUBE | 10001-10999 | |
| 24 | 21M-62-16131 | TUBE | 10001-10999 | |
| 25 | 21M-62-16161 | BRACKET | 10001-10999 | |
| 26 | 07283-36163 | CLIP | 10001-@ | |
| 27 | 01597-01009 | NUT | 10001-@ | |
| 28 | 01643-31032 | WASHER | 10001-@ | |
| 29 | 01010-81235 | BOLT | 10001-10999 | |
| 30 | 01643-31232 | WASHER | 10001-10999 | |
| 31 | 21M-62-16171 | BRACKET | 10001-10999 | |
| 32 | 07283-36163 | CLIP | 10001-@ | |
| 33 | 01597-01009 | NUT | 10001-@ | |
| 34 | 01643-31032 | WASHER | 10001-@ | |
| 35 | 01010-81235 | BOLT | 10001-10999 | |
| 36 | 01643-31232 | WASHER | 10001-10999 | |
| 37 | 07298-02007 | HOSE | 10001-10999 | |
| 38 | 07000-12060 | O-RING | 10001-@ | |
| 39 | 07371-32076 | FLANGE | 10001-@ | |
| 40 | 07372-21240 | BOLT | 10001-@ | |
| 41 | 01643-51232 | WASHER | 10001-@ | |
| 42 | 07298-02009 | HOSE | 10001-10999 | |
| 43 | 07000-12060 | O-RING | 10001-@ | |
| 44 | 07371-32076 | FLANGE | 10001-@ | |
| 45 | 07372-21240 | BOLT | 10001-@ | |
| 46 | 01643-51232 | WASHER | 10001-@ |
