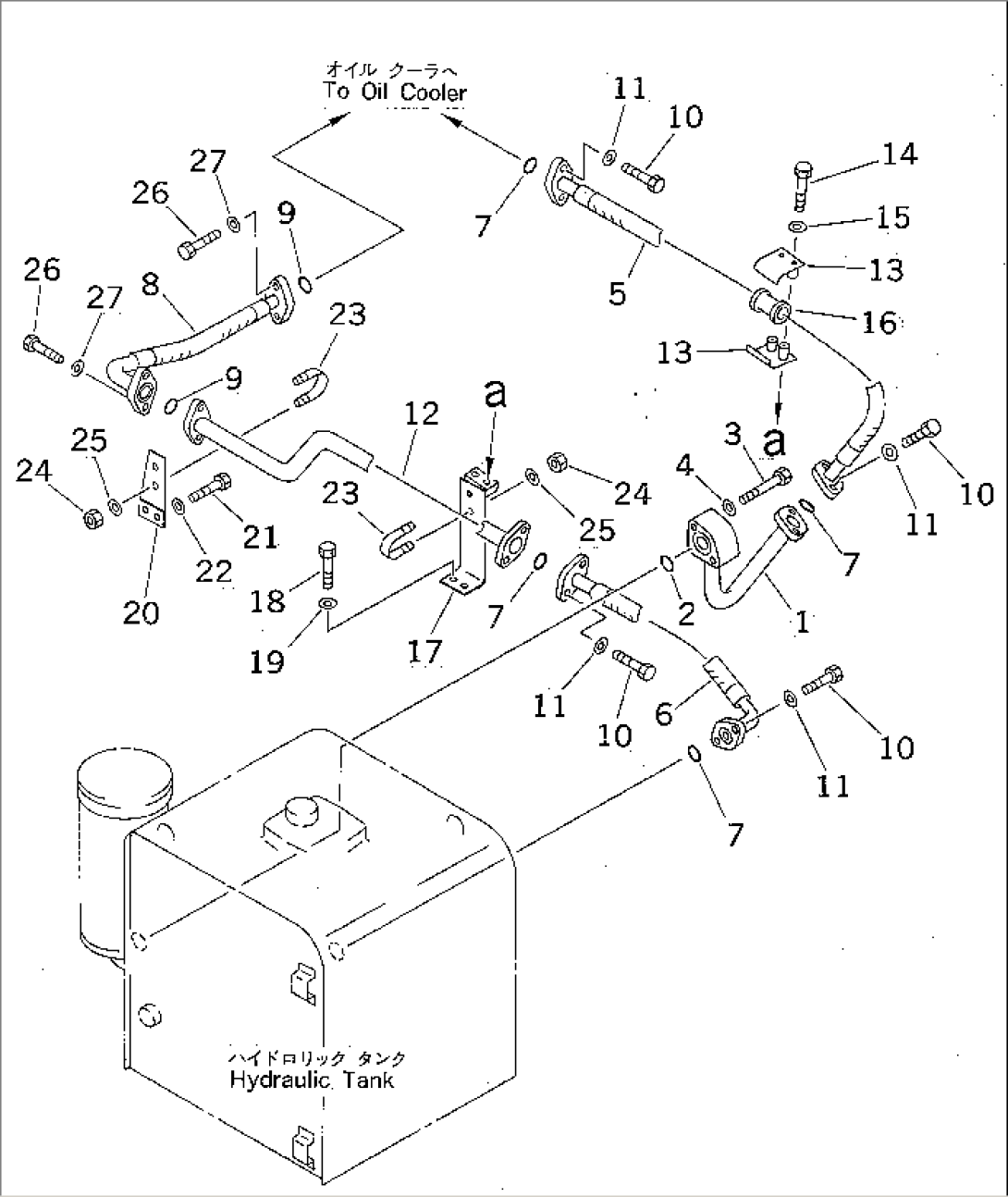

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-62141 | TUBE | 30001- | |
| 2 | 07000-13045 | O-RING | 32420- | |
| 2 | 07000-03045 | O-RING | 30001-32419 | |
| 3 | 01010-81295 | BOLT | 30001- | |
| 4 | 01643-31232 | WASHER | 30001- | |
| 5 | 207-62-62250 | HOSE, 1575MM | 30001- | |
| 6 | 207-62-62480 | HOSE, 750MM | 30001- | |
| 7 | 07000-13048 | O-RING | 30001- | |
| 8 | 207-62-51310 | HOSE | 30001- | |
| 9 | 07000-13048 | O-RING | 30001- | |
| 10 | 01010-81240 | BOLT | 30001- | |
| 11 | 01643-31232 | WASHER | 30001- | |
| 12 | 208-62-62111 | TUBE | 30001- | |
| 13 | 07094-01228 | CLAMP | 30001- | |
| 14 | 01010-81285 | BOLT | 30001- | |
| 15 | 01643-31232 | WASHER | 30001- | |
| 16 | 07095-01245 | CUSHION | 30001- | |
| 17 | 207-62-62490 | BRACKET | 30001- | |
| 18 | 01010-81235 | BOLT | 30001- | |
| 19 | 01643-31232 | WASHER | 30001- | |
| 20 | 207-62-62520 | BRACKET | 30001- | |
| 21 | 01010-81240 | BOLT | 30001- | |
| 22 | 01643-31232 | WASHER | 30001- | |
| 23 | 07283-24949 | CLIP | 30001- | |
| 24 | 01599-01011 | NUT | 30001- | |
| 25 | 01643-31032 | WASHER | 30001- | |
| 26 | 01010-81240 | BOLT | 30001- | |
| 27 | 01643-31232 | WASHER | 30001- |
