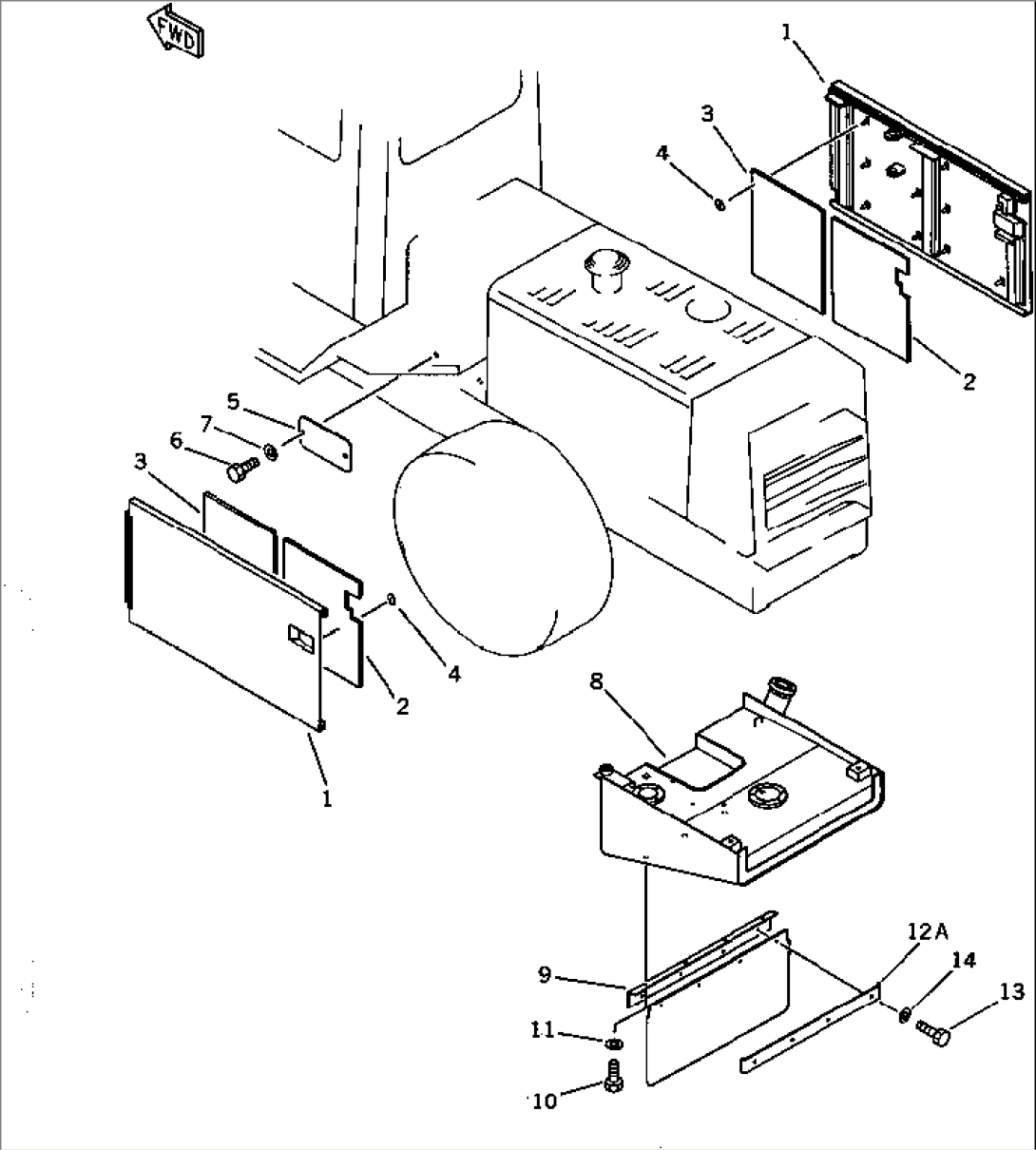

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-Z90-1240 | COVER,L.H. (MODIFIED PART) | 10001- | |
| 1 | 418-Z90-1251 | COVER,R.H. (MODIFIED PART) | .- | |
| 1 | \0\418-Z90-1250 | COVER,R.H. (MODIFIED PART) | 10001-. | |
| 2 | 418-Z90-1180 | SHEET,L.H. | 10001- | |
| 2 | 418-Z90-1190 | SHEET,R.H. | 10001- | |
| 3 | 418-Z90-1210 | SHEET,L.H. | 10001- | |
| 3 | 418-Z90-1220 | SHEET,R.H. | 10001- | |
| 4 | 04431-30000 | PLATE | 10001- | |
| 5 | 418-60-15180 | PLATE | 10001- | |
| 6 | 01010-51225 | BOLT | 10001- | |
| 7 | 01643-31232 | WASHER | 10001- | |
| 8 | 418-Z90-1530 | TANK,FUEL (MODIFIED PART) | 10001- | |
| 9 | 419-Z90-1710 | BRACKET | 10001- | |
| 10 | 01010-51220 | BOLT | 10001- | |
| 11 | 01643-31232 | WASHER | 10001- | |
| 12 | 419-Z90-1720 | GUARD | 10001- | |
| 12A | 419-Z90-1730 | COVER | 10001- | |
| 13 | 01010-51230 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- |
