| Item | Part No. | Part Name | Qty | Serial No. |
| 7824-89-7001 | MONITOR ASS'Y | 20001- | ||
| 1 | \6\ | MONITOR | 20001- | |
| 2 | 7824-84-2910 | BULB, 1.4W | 20001- | |
| 3 | 7824-84-2920 | BULB, 2W | 20001- | |
| 4 | 7861-01-1820 | SOCKET | 20001- | |
| 5 | 7824-84-2950 | SOCKET | 20001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc58uu 3 s/n 20001 up (for north america)
- Operator's compartment and control system
- Monitor panel (inner parts) (north america spec.)
Поиск по каталогу

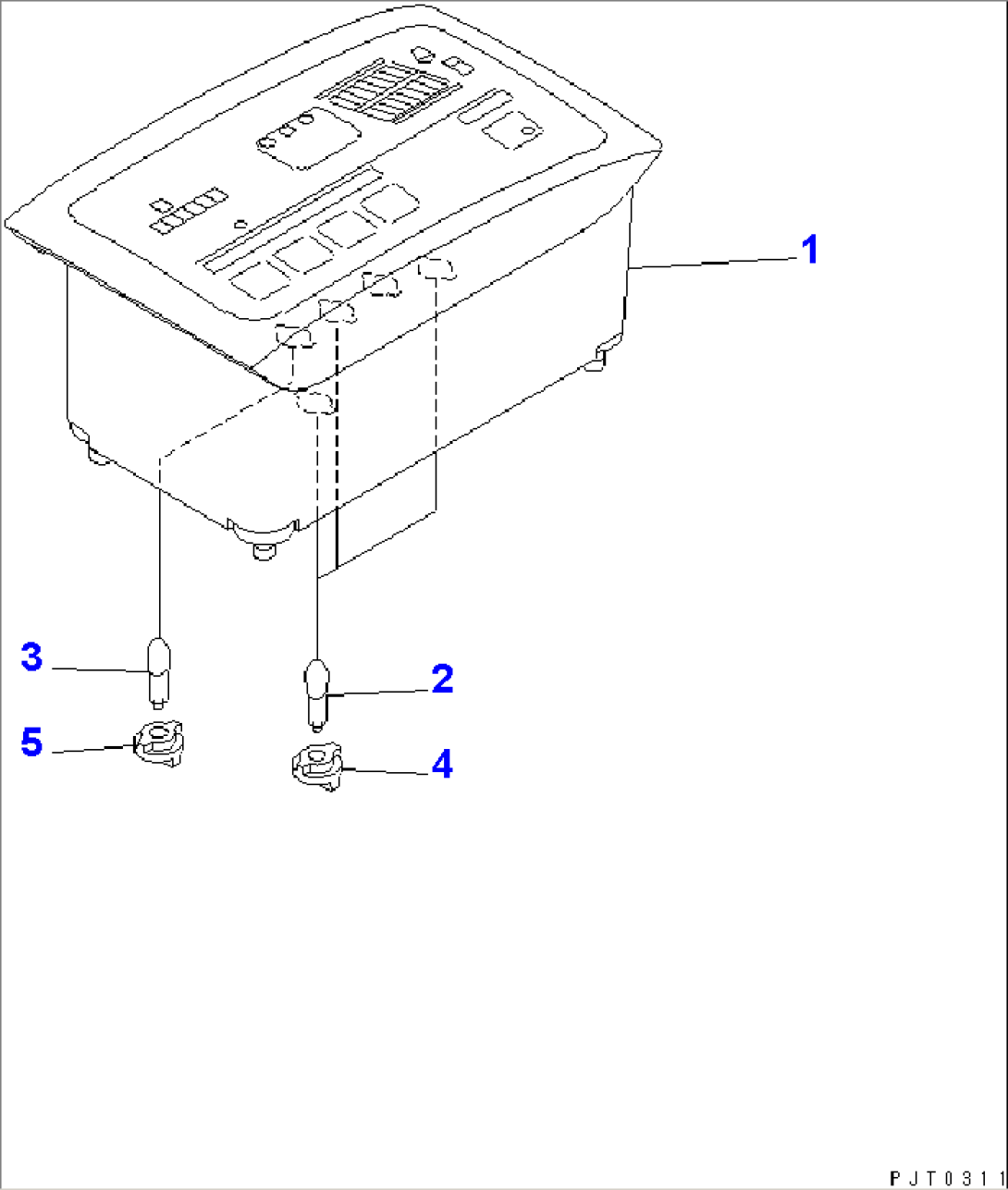

MONITOR PANEL (INNER PARTS) (NORTH AMERICA SPEC.)
