| Item | Part No. | Part Name | Qty | Serial No. |

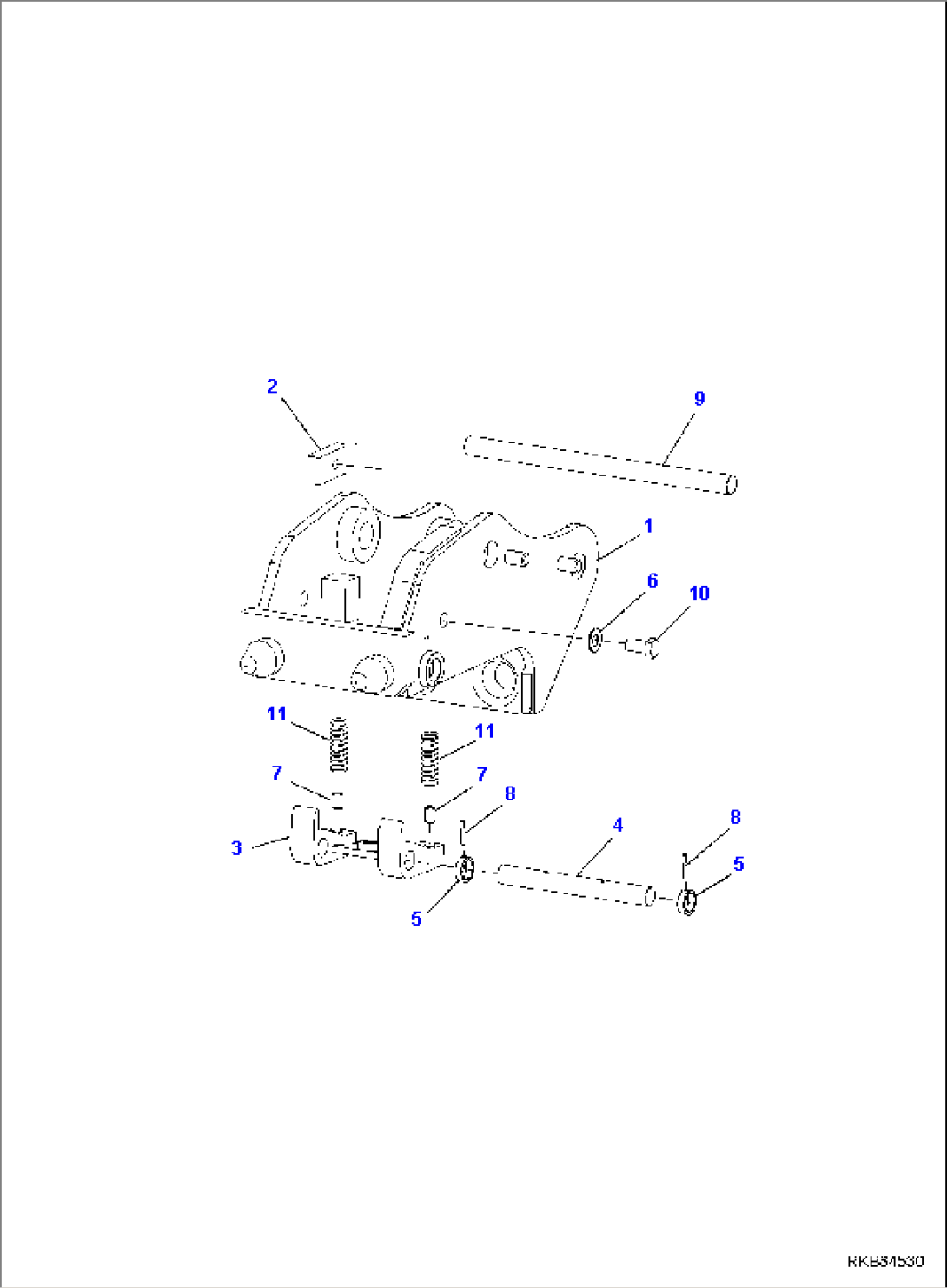

| \0.99 | 22L-09-R1C80 | MECHANICAL QUICK COUPLING, ASSEMBLY | F30001- | |
| 1 | 22L-09-R1W10 | FRAME | F30001- | |
| 2 | 22L-09-R1W20 | RATCHET PAWL | F30001- | |
| 3 | 22L-09-R1W30 | STOP | F30001- | |
| 4 | 22L-09-R1W40 | STUD | F30001- | |
| 5 | 22L-09-R1W50 | STOP | F30001- | |
| 6 | 22L-09-R1W60 | WASHER | F30001- | |
| 7 | 22L-09-R1W70 | PIN, SPRING | F30001- | |
| 8 | 22L-09-R1W80 | PIN, SPRING | F30001- | |
| 9 | 22L-09-R1W90 | UNCOUPLING LEVER | F30001- | |
| 10 | 22L-09-R1X10 | SCREW | F30001- | |
| 11 | 22L-09-R1X20 | SPRING | F30001- |
