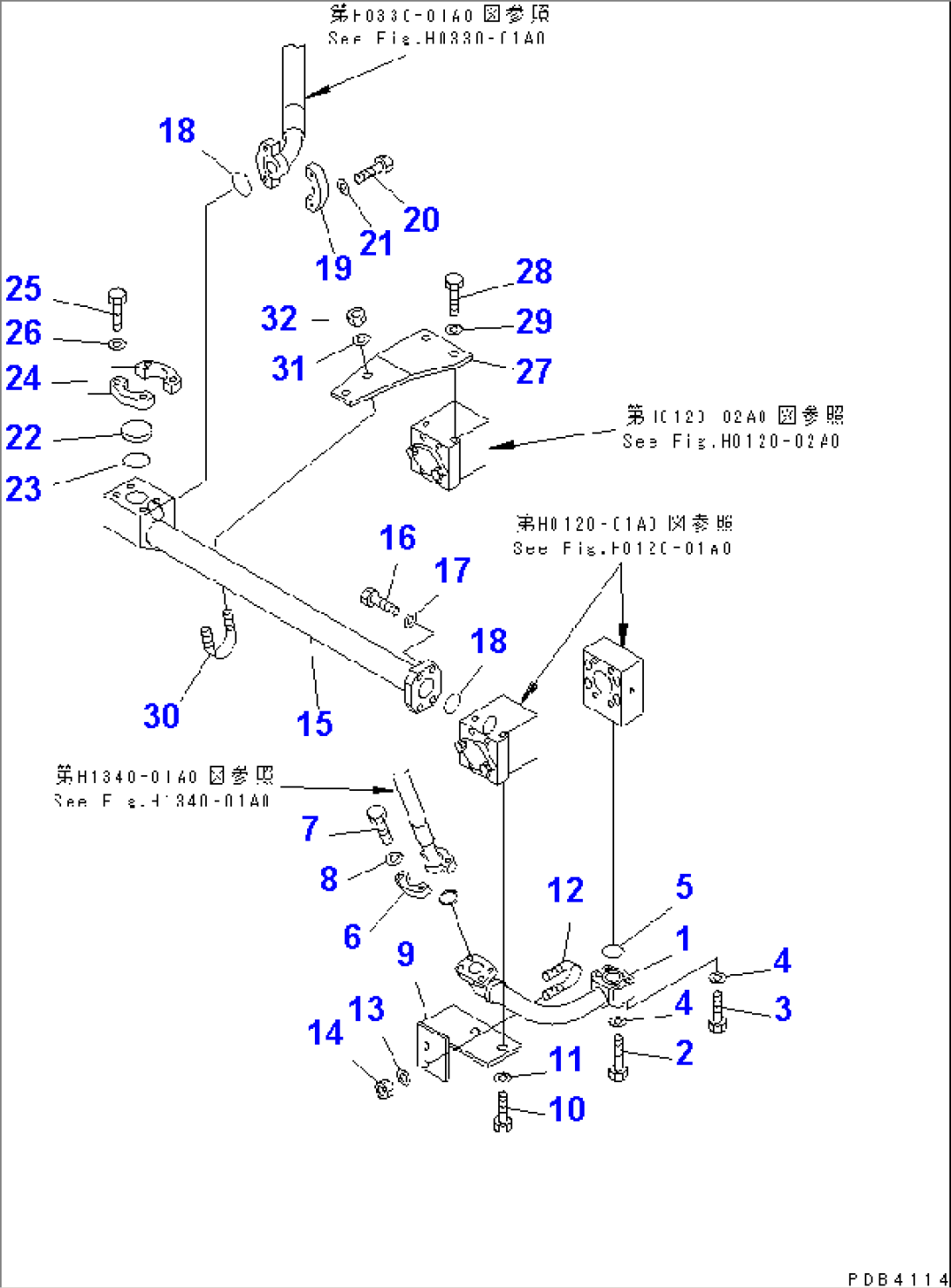

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-62-77421 | TUBE | 10001-10238 | |
| 2 | 01010-81050 | BOLT | 10001-10238 | |
| 3 | 01010-81060 | BOLT | 10001-10238 | |
| 4 | 01643-31032 | WASHER | 10001-10238 | |
| 5 | 07000-03035 | O-RING | 10001-10238 | |
| 6 | 07371-31049 | FLANGE | 10001-@ | |
| 7 | 07372-21035 | BOLT | 10001-@ | |
| 8 | 01643-51032 | WASHER | 10001-@ | |
| 9 | 209-62-77431 | BRACKET | 10001-10238 | |
| 10 | 01010-81230 | BOLT | 10001-10238 | |
| 11 | 01643-31232 | WASHER | 10001-10238 | |
| 12 | 07283-23442 | CLIP | 10001-10238 | |
| 13 | 01643-31032 | WASHER | 10001-10238 | |
| 14 | 01599-01011 | NUT | 10001-10238 | |
| 15 | 209-62-77411 | TUBE | 10001-10238 | |
| 16 | 07372-21240 | BOLT | 10001-10238 | |
| 17 | 01643-51232 | WASHER | 10001-10238 | |
| 18 | 07000-03050 | O-RING | 10001-10238 | |
| 19 | 07371-31465 | FLANGE | 10001-@ | |
| 20 | 07372-21240 | BOLT | 10001-@ | |
| 21 | 01643-51232 | WASHER | 10001-@ | |
| 22 | 07378-11400 | HEAD | 10001-10238 | |
| 23 | 07000-03048 | O-RING | 10001-10238 | |
| 24 | 07371-31465 | FLANGE | 10001-10238 | |
| 25 | 07372-21240 | BOLT | 10001-10238 | |
| 26 | 01643-51232 | WASHER | 10001-10238 | |
| 27 | 209-62-77441 | BRACKET | 10001-10238 | |
| 28 | 01010-81230 | BOLT | 10001-10238 | |
| 29 | 01643-31232 | WASHER | 10001-10238 | |
| 30 | 07283-24949 | CLIP | 10001-10238 | |
| 31 | 01643-31032 | WASHER | 10001-10238 | |
| 32 | 01599-01011 | NUT | 10001-10238 |
