| Item | Part No. | Part Name | Qty | Serial No. |
| (723-37-14101) | VALVE ASS'Y | K30001-K31999 | ||

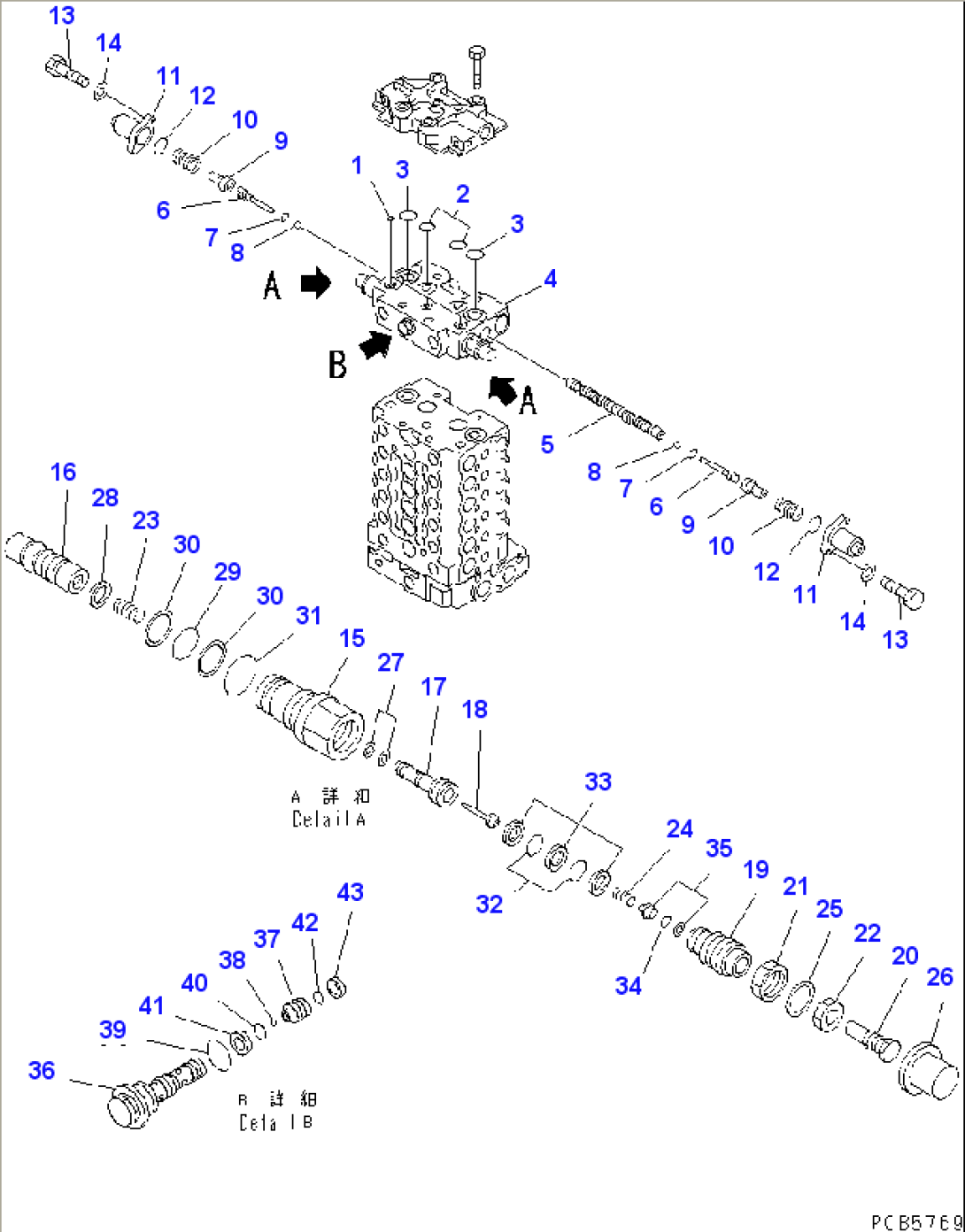

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-10A0. | ||||
| 723-31-00600 | BODY SUB ASS'Y | K30001-K31999 | ||
| 1 | 07000-12014 | O-RING | K30001-K31999 | |
| 2 | 07000-13028 | O-RING | K30001-K31999 | |
| 3 | 07000-13035 | O-RING | K30001-K31999 | |
| 4 | \6\ | BODY | K30001-K31999 | |
| 5 | \6\ | SPOOL | K30001-K31999 | |
| 6 | 723-36-15130 | PLUG | K30001-K31999 | |
| 7 | 07002-10823 | O-RING | K30001-K31999 | |
| 8 | 708-7T-16460 | BALL | K30001-K31999 | |
| 9 | 723-36-15120 | RETAINER | K30001-K31999 | |
| 10 | 723-36-14110 | SPRING | K30001-K31999 | |
| 11 | 723-36-15110 | CASE | K30001-K31999 | |
| 12 | 723-36-15170 | O-RING | K30001-K31999 | |
| 13 | 01252-30622 | BOLT | K30001-K31999 | |
| 14 | 01641-20608 | WASHER | K30001-K31999 | |
| 723-36-48100 | VALVE ASS'Y | K30001-K31999 | ||
| 15 | \6\ | SLEEVE | K30001-K31999 | |
| 16 | \6\ | VALVE | K30001-K31999 | |
| 17 | \6\ | SEAT | K30001-K31999 | |
| 18 | \6\ | POPPET | K30001-K31999 | |
| 19 | \6\ | PLUG | K30001-K31999 | |
| 20 | \6\ | SCREW | K30001-K31999 | |
| 21 | \6\ | NUT | K30001-K31999 | |
| 22 | \6\ | NUT | K30001-K31999 | |
| 23 | \6\ | SPRING | K30001-K31999 | |
| 24 | \6\ | SPRING | K30001-K31999 | |
| 25 | \6\ | PLATE | K30001-K31999 | |
| 26 | \6\ | CAP | K30001-K31999 | |
| 27 | \6\ | SEAL | K30001-K31999 | |
| 28 | \6\ | SEAL | K30001-K31999 | |
| 29 | 700-80-61260 | O-RING | K30001-K31999 | |
| 30 | 700-80-61430 | RING | K30001-K31999 | |
| 31 | 07002-13034 | O-RING | K30001-K31999 | |
| 32 | \6\ | O-RING | K30001-K31999 | |
| 33 | \6\ | RING | K30001-K31999 | |
| 34 | \6\ | O-RING | K30001-K31999 | |
| 35 | \6\ | RING,BACK-UP | K30001-K31999 | |
| 723-30-66200 | VALVE ASS'Y | K30001-K31999 | ||
| 36 | \6\ | PLUG | K30001-K31999 | |
| 37 | \6\ | SEAT | K30001-K31999 | |
| 38 | \6\ | BALL | K30001-K31999 | |
| 39 | 07002-12434 | O-RING | K30001-K31999 | |
| 40 | 07000-12012 | O-RING | K30001-K31999 | |
| 41 | 07001-02012 | RING,BACK-UP | K30001-K31999 | |
| 42 | 07000-12010 | O-RING | K30001-K31999 | |
| 43 | 07001-02010 | RING | K30001-K31999 |
