| Item | Part No. | Part Name | Qty | Serial No. |
| (723-47-14901) | VALVE ASS'Y | 10013- | ||
| (723-47-14900) | VALVE ASS'Y | 10011-10012 | ||
| (723-47-13503) | VALVE ASS'Y | 10001-10010 | ||

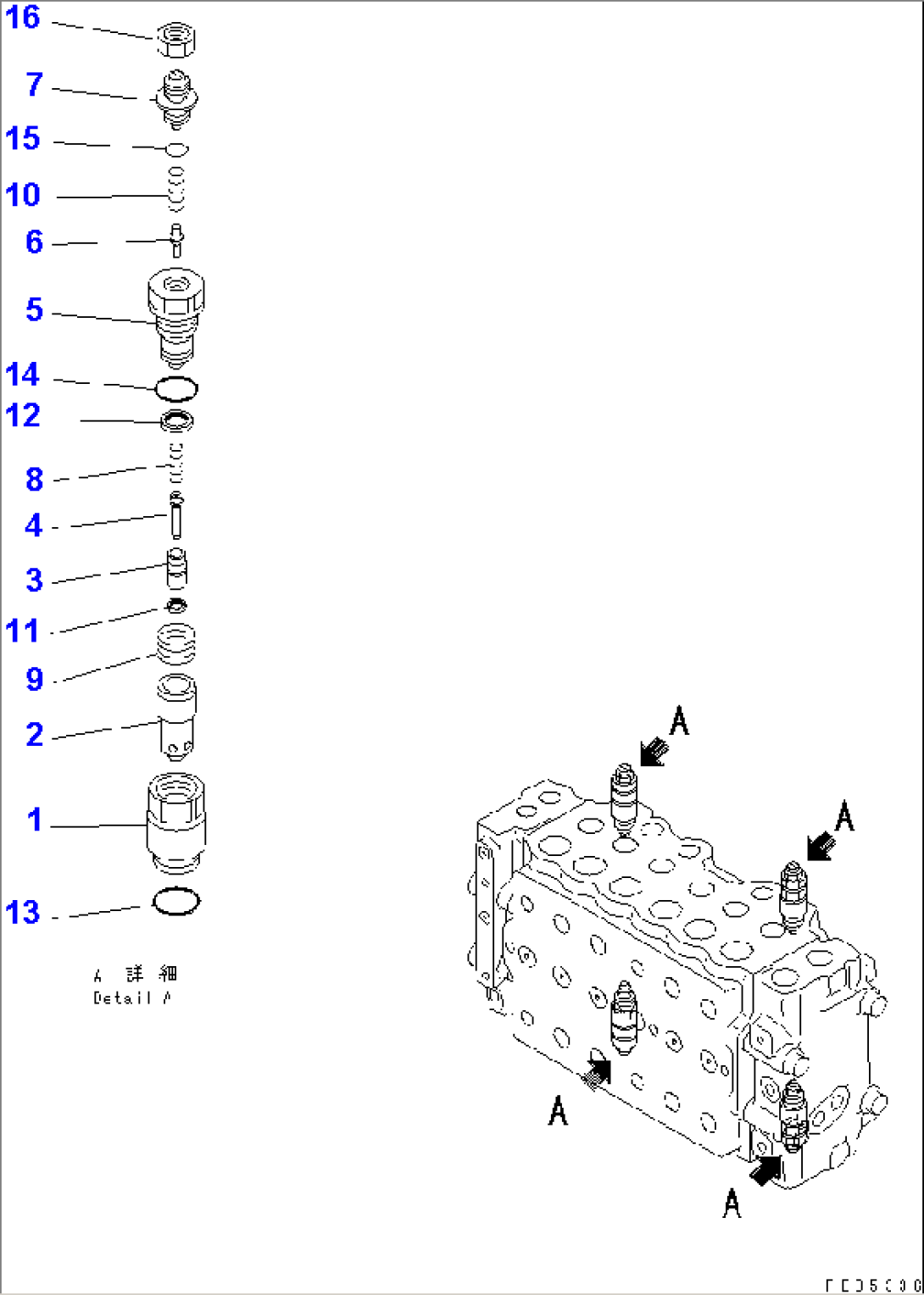

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1662-21A0 TO Y1662-34A0. | ||||
| 709-70-74302 | VALVE ASS'Y,SUCTION AND SAFETY | 10001- | ||
| 1 | \6\ | SLEEVE | 10001- | |
| 2 | \6\ | SLEEVE | 10001- | |
| 3 | \6\ | POPPET | 10001- | |
| 4 | \6\ | PISTON | 10001- | |
| 5 | \6\ | PLUG | 10001- | |
| 6 | \6\ | POPPET | 10001- | |
| 7 | \6\ | SCREW | 10001- | |
| 8 | \6\ | SPRING | 10001- | |
| 9 | \6\ | SPRING | 10001- | |
| 10 | \6\ | SPRING | 10001- | |
| 11 | \6\ | SEAL | 10001- | |
| 12 | \6\ | SEAL | 10001- | |
| 13 | 709-25-11390 | O-RING | 10001- | |
| 14 | 07002-02434 | O-RING | 10001- | |
| 15 | 07000-02011 | O-RING | 10001- | |
| 16 | \6\ | NUT | 10001- |
