| Item | Part No. | Part Name | Qty | Serial No. |
| 723-47-23404 | VALVE ASSEMBLY | K53404- | ||
| 723-47-23402 | VALVE ASSEMBLY | K52433-K53403 | ||
| (723-47-23400) | VALVE ASSEMBLY | K50001-K52432 | ||

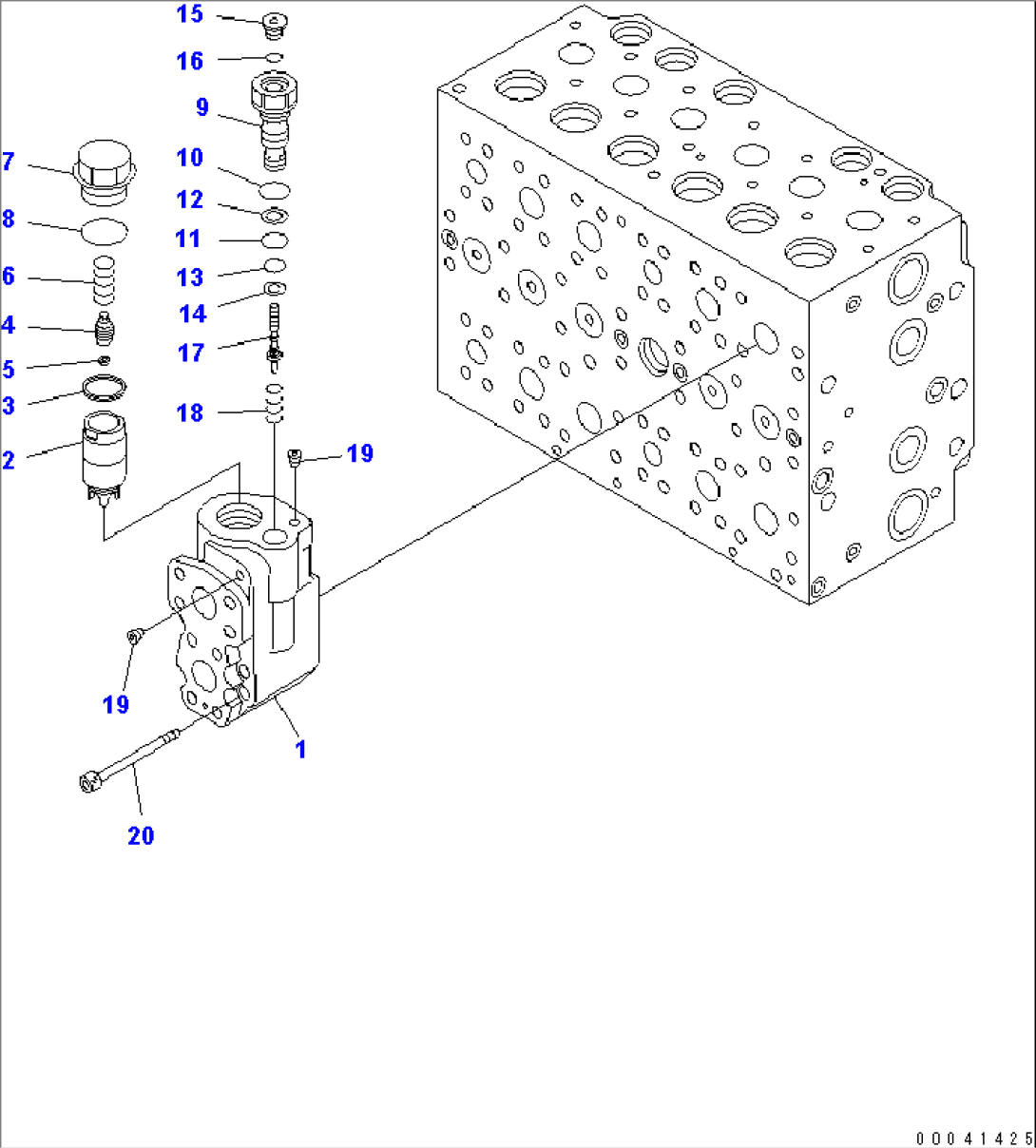

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-19A0. | ||||
| 723-40-84501 | VALVE ASSEMBLY | K52433- | ||
| 723-40-84500 | VALVE ASSEMBLY | K50001-K52432 | ||
| 1 | \6\ | BODY | K50001- | |
| 2 | \6\ | VALVE | K50001- | |
| 3 | \6\ | SEAL | K50001- | |
| 4 | 723-40-84330 | PLUG | K50001- | |
| 5 | 723-40-82220 | FILTER | K50001- | |
| 6 | 723-40-84340 | SPRING | K50001- | |
| 7 | 723-40-84350 | PLUG | K50001- | |
| 8 | 07002-13334 | O-RING | K50001- | |
| 9 | \6\ | PLUG | K50001- | |
| 10 | 07002-11823 | O-RING | K50001- | |
| 11 | 07000-12011 | O-RING | K50001- | |
| 12 | 07001-02011 | RING, BACK-UP | K50001- | |
| 13 | 07000-11010 | O-RING | K50001- | |
| 14 | 07001-01010 | RING, BACK-UP | K50001- | |
| 15 | 723-11-18190 | PLUG | K50001- | |
| 16 | 07002-11023 | O-RING | K50001- | |
| 17 | \6\ | PISTON | K50001- | |
| 18 | 723-40-84382 | SPRING | K52433- | |
| 723-40-84380 | SPRING | K50001-K52432 | ||
| 19 | \6\ | PLUG | K50001- | |
| 20 | 01252-61080 | BOLT | K50001- |
