| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00182) | PUMP ASS'Y | 50704-52851 | ||
| (708-2L-00180) | PUMP ASS'Y | 50700-50703 | ||
| (708-2L-00084) | PUMP ASS'Y | 50310-50699 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 TO Y1600-29A0. | ||||

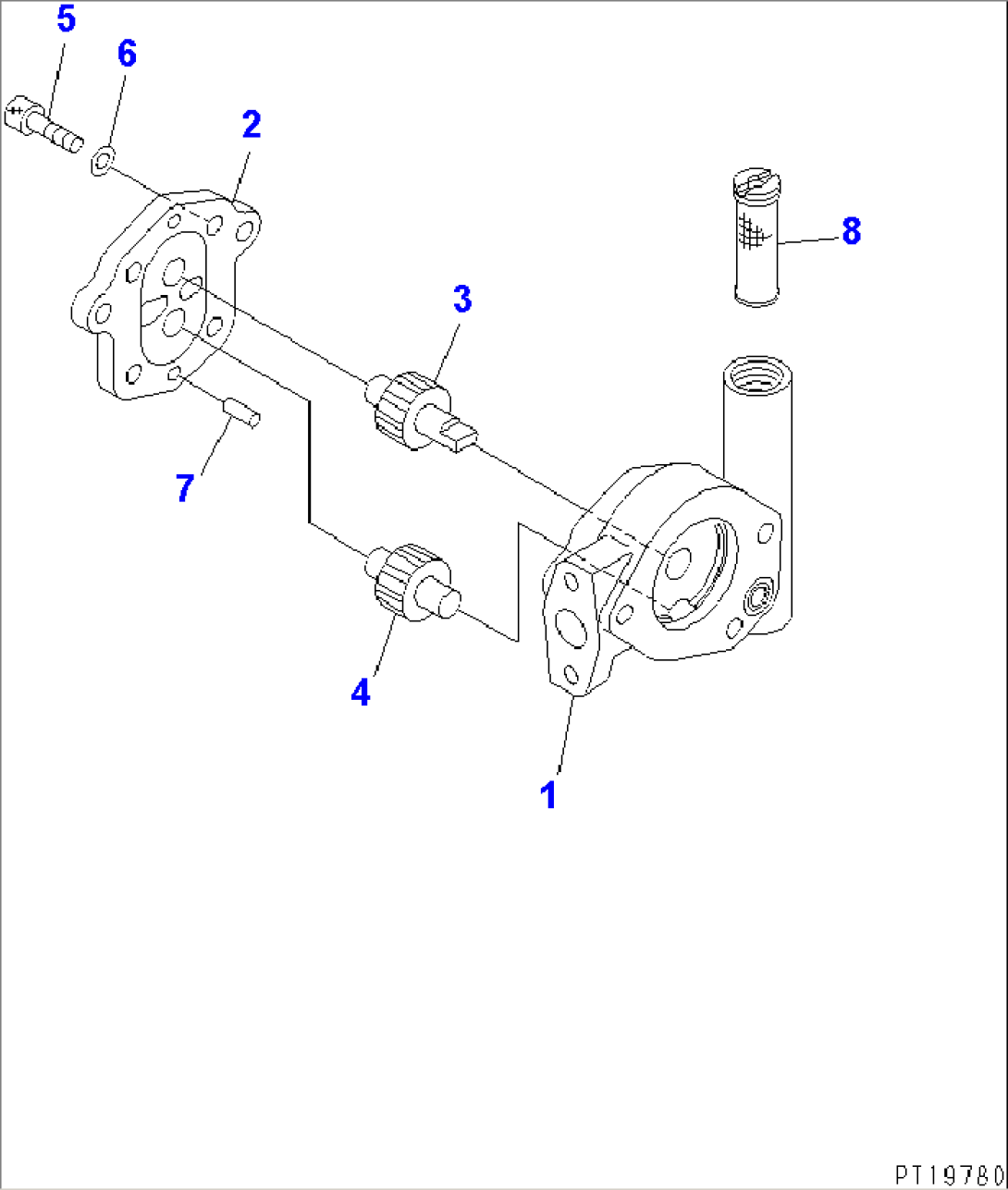

| 704-24-24420 | GEAR PUMP ASS'Y | 50310-52851 | ||
| 1 | (\7\704-28-24220) | BODY | 50310-52851 | |
| 1 | (\7\704-27-00610) | BUSHING | 50310-52851 | |
| 2 | (\7\704-28-00420) | HOUSING | 50310-52851 | |
| 2 | (\7\704-27-00610) | BUSHING | 50310-52851 | |
| 3 | (\7\704-28-24610) | GEAR,DRIVE | 50310-52851 | |
| 4 | (\7\704-28-24710) | GEAR,DRIVEN | 50310-52851 | |
| 5 | (\7\01252-31030) | BOLT | 50310-52851 | |
| 6 | (\7\01643-51032) | WASHER | 50310-52851 | |
| 7 | (\7\04020-00820) | PIN | 50310-52851 | |
| 8 | 704-28-02751 | STRAINER | 50310-52851 |
