| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1L-00071) | PUMP ASS'Y | K30001- | ||

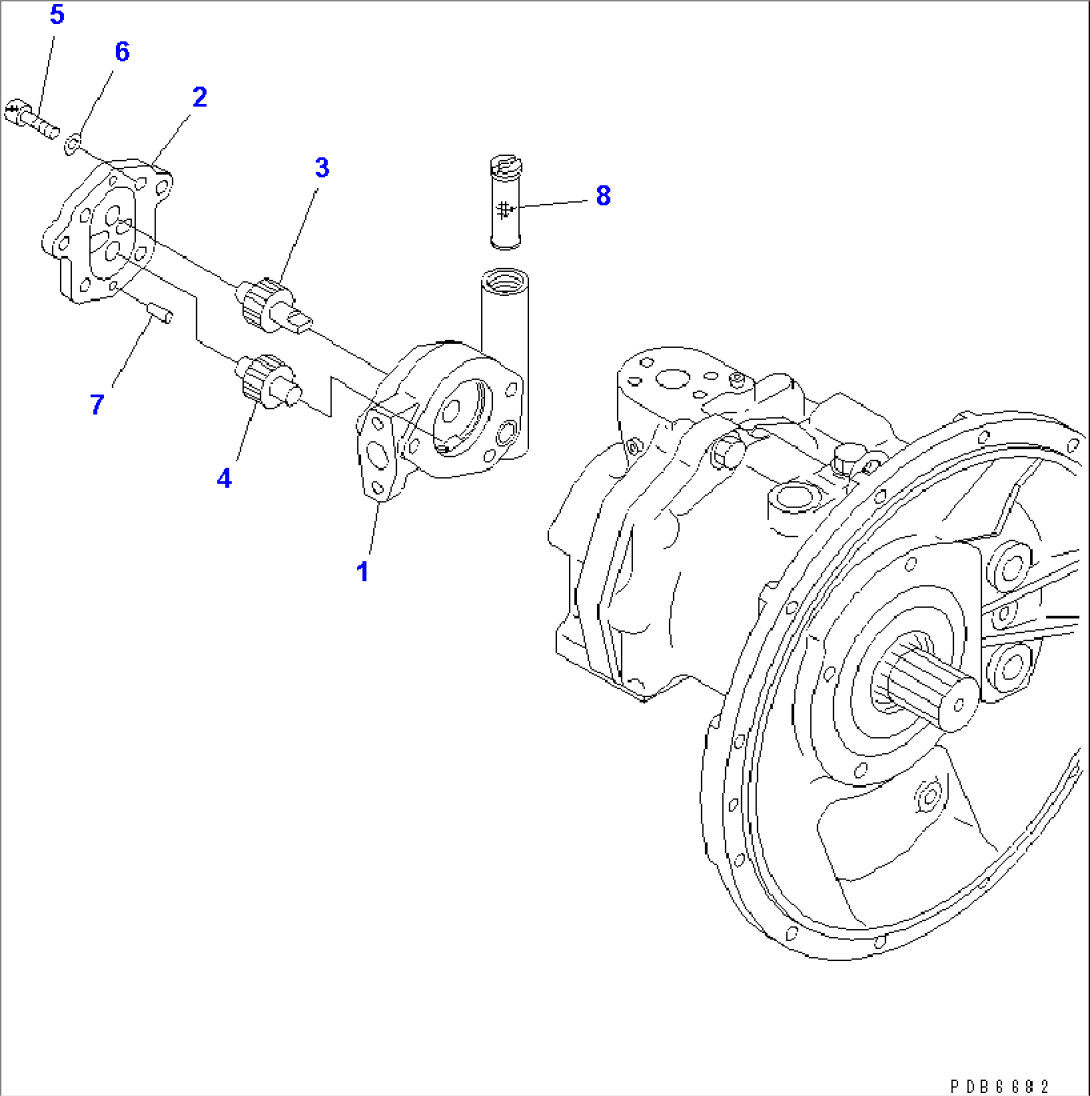

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0. | ||||
| 704-24-24420 | GEAR PUMP ASS'Y | K30001- | ||
| 1 | (\7\704-28-24220) | BODY | K30001- | |
| 2 | (\7\704-28-00420) | HOUSING | K30001- | |
| 3 | (\7\704-28-24610) | GEAR | K30001- | |
| 4 | (\7\704-28-24710) | GEAR | K30001- | |
| 5 | (\7\01252-31030) | BOLT | K30001- | |
| 6 | (\7\01643-51032) | WASHER | K30001- | |
| 7 | (\7\04020-00820) | PIN | K30001- | |
| 8 | (\7\704-28-02751) | STRAINER | K30001- |
