| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00171) | PUMP ASS'Y | 86942-94998 | ||
| (708-2L-00170) | PUMP ASS'Y | 86930-86941 | ||
| (708-2L-00074) | PUMP ASS'Y | 83952-86929 | ||

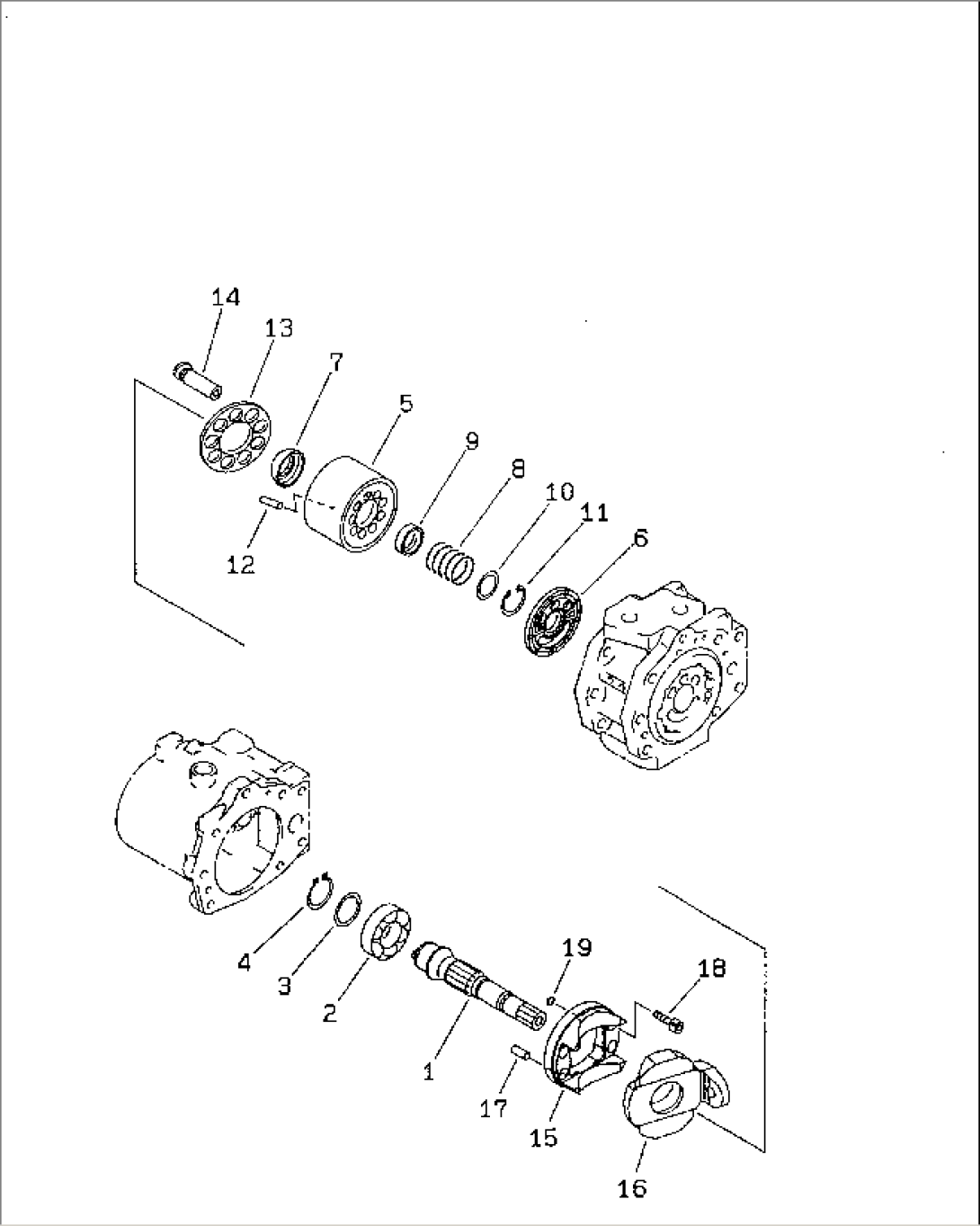

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 TO Y1600-30A0C. | ||||
| (708-2L-01052) | PUMP SUB ASS'Y | 83952-@ | ||
| 1 | (\7\708-2L-22122) | SHAFT,REAR | 83952-@ | |
| 2 | (\7\708-2L-32150) | BEARING | 83952-@ | |
| 3 | (\7\708-2E-05040) | WASHER KIT | 83952-@ | |
| 3 | \6\ | WASHER, 3.1MM | 83952-@ | |
| 3 | \6\ | WASHER, 3.0MM | 83952-@ | |
| 3 | \6\ | WASHER, 2.9MM | 83952-@ | |
| 3 | \6\ | WASHER, 2.8MM | 83952-@ | |
| 4 | (\7\708-25-12790) | RING,SNAP | 83952-@ | |
| (\7\708-2L-04050) | BLOCK ASS'Y,REAR | 83952-@ | ||
| 5 | \6\ | BLOCK,CYLINDER | 83952-@ | |
| 6 | \6\ | PLATE,VALVE | 83952-@ | |
| 7 | (\7\708-2L-23351) | GUIDE,RETAINER | 83952-@ | |
| 8 | (\7\708-2L-23151) | SPRING | 83952-@ | |
| 9 | (\7\708-2L-23131) | SEAT | 83952-@ | |
| 10 | (\7\708-7L-13140) | SEAT | 83952-@ | |
| 11 | (\7\04065-04818) | RING | 83952-@ | |
| 12 | (\7\708-2L-23360) | PIN | 83952-@ | |
| 13 | (\7\708-2L-23340) | RETAINER,SHOE | 83952-@ | |
| 14 | (\7\708-2L-23313) | PISTON SUB ASS'Y | 83952-@ | |
| (\7\708-2L-04061) | CRADLE ASS'Y | 83952-@ | ||
| 15 | \6\ | CRADLE | 83952-@ | |
| 16 | \6\ | CAM,ROCKER | 83952-@ | |
| 17 | (\7\04020-01228) | PIN | 83952-@ | |
| 18 | (\7\01252-61230) | BOLT | 83952-@ | |
| 19 | (\7\07000-B1009) | O-RING | 83952-@ |
