| Item | Part No. | Part Name | Qty | Serial No. |

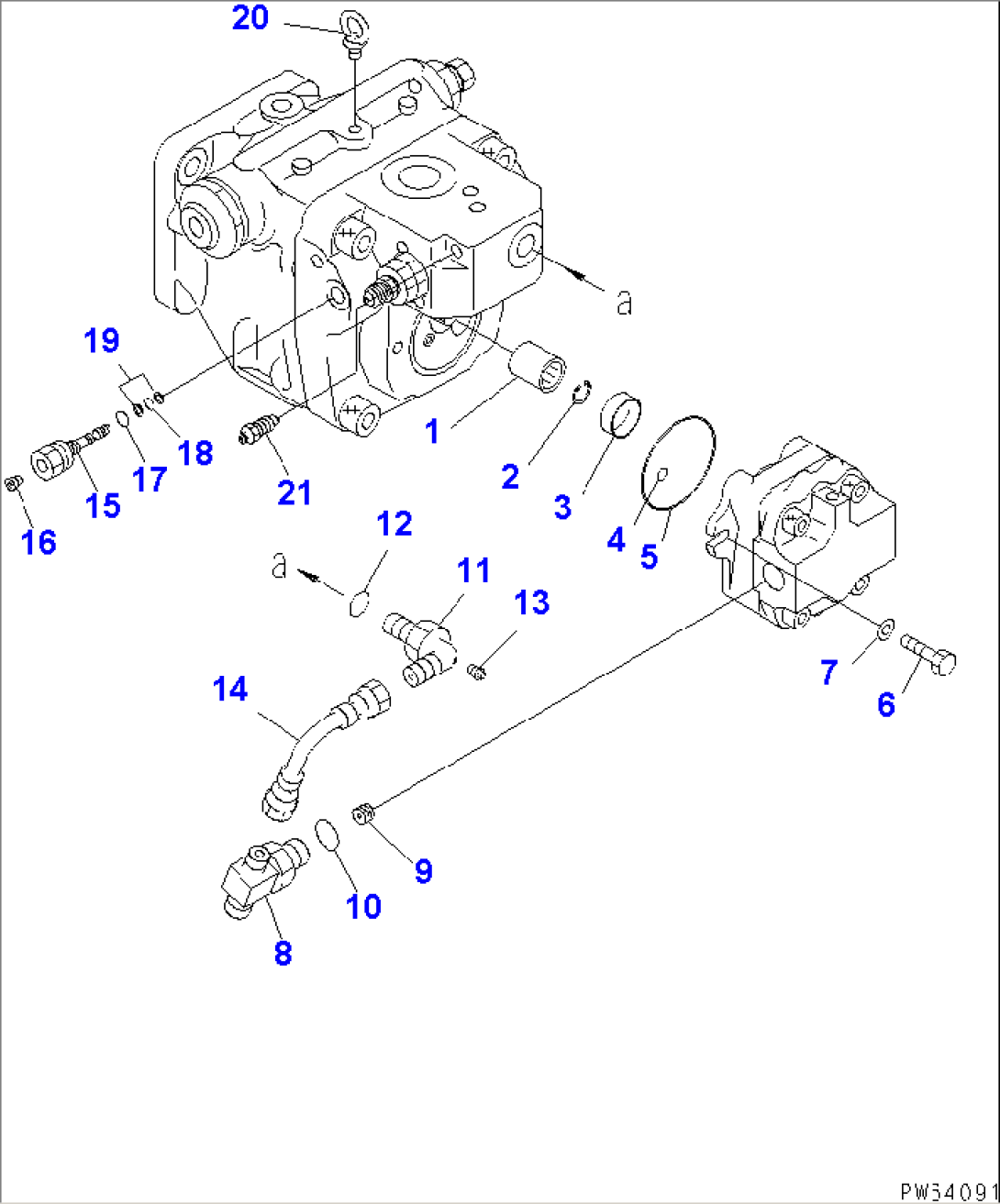

| (708-1S-00160) | PUMP ASS'Y | 10001-10950 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-06A0. | ||||
| 1 | 708-1T-19210 | COUPLING | 10001-@ | |
| 2 | 700-30-63140 | RING,SNAP | 10001-@ | |
| 3 | 708-1T-19230 | RING | 10001-@ | |
| 4 | 07000-11006 | O-RING | 10001-10950 | |
| 5 | 07000-02060 | O-RING | 10001-10950 | |
| 6 | 01010-80820 | BOLT | 10001-10950 | |
| 7 | 01643-30823 | WASHER | 10001-10950 | |
| 8 | 708-1T-19140 | TEE | 10001-10950 | |
| 9 | 708-1T-19513 | ORIFICE | 10001-@ | |
| 10 | 07002-11823 | O-RING | 10001-10950 | |
| 11 | 07235-50210 | ELBOW | 10001-10950 | |
| 12 | 07002-11423 | O-RING | 10001-10950 | |
| 13 | 07042-20108 | PLUG | 10001-10950 | |
| 14 | 708-1T-19440 | TUBE | 10001-10950 | |
| 15 | 708-1T-15952 | PLUG | 10001-10950 | |
| 16 | 706-86-51180 | PLUG | 10001-10950 | |
| 17 | 07002-11023 | O-RING | 10001-10950 | |
| 18 | 07000-11004 | O-RING | 10001-10950 | |
| 19 | 07001-01004 | RING | 10001-10950 | |
| 20 | 04530-11018 | BOLT,EYE | 10001-10950 | |
| 21 | 20B-27-11210 | BLEEDER | 10001-@ |
