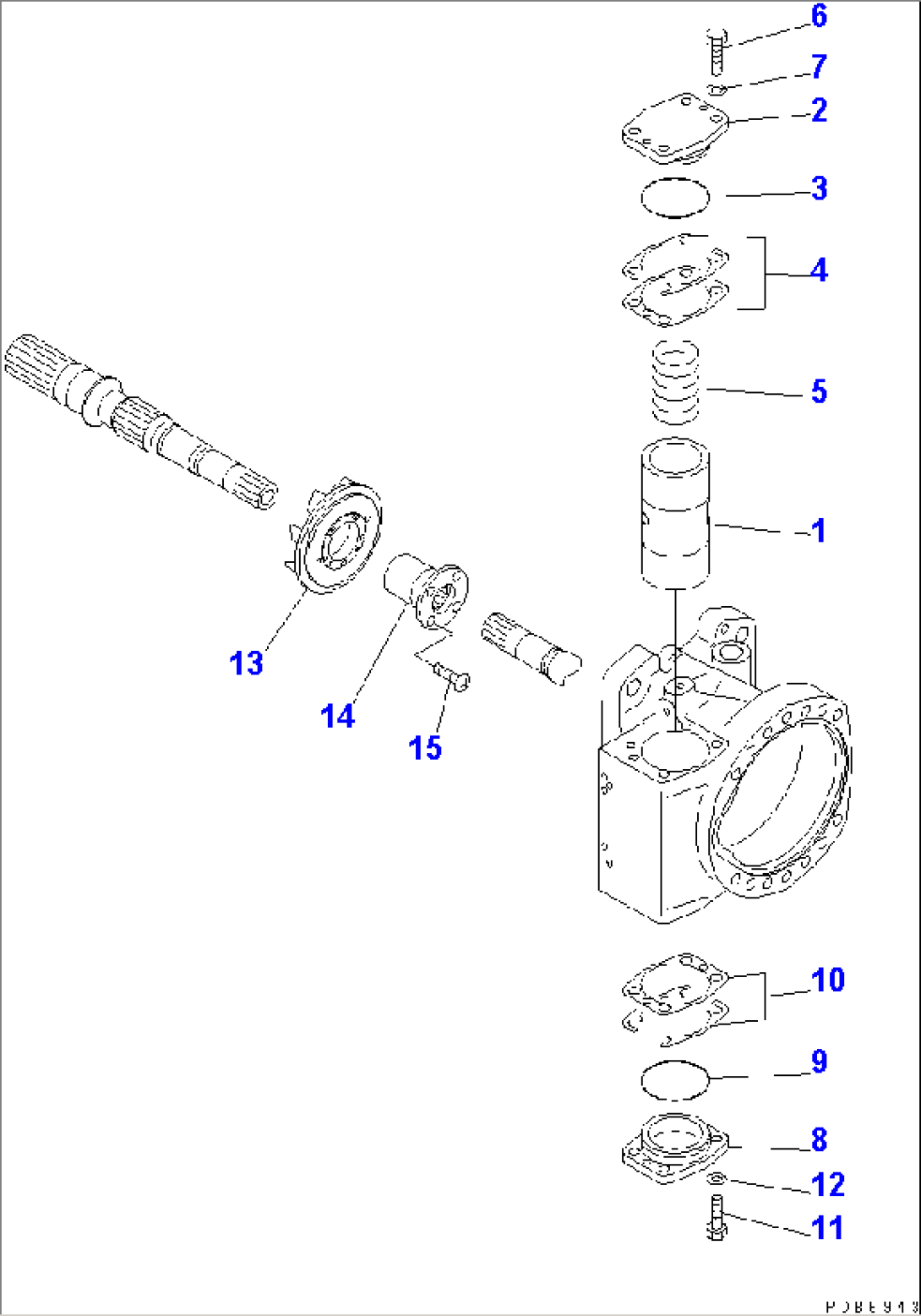

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00532) | PUMP ASS'Y | 10018- | ||
| (708-2L-00531) | PUMP ASS'Y | 10001-10017 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-14A0. | ||||
| (708-2L-01632) | PUMP SUB ASS'Y | 10018- | ||
| (708-2L-01631) | PUMP SUB ASS'Y | 10001-10017 | ||
| 1 | (\7\708-25-14112) | PISTON | 10001- | |
| 2 | (\7\708-25-14140) | CAP | 10001- | |
| 3 | 07000-B2065 | O-RING | 10018- | |
| 07000-02065 | O-RING | 10001-10017 | ||
| 4 | (\7\708-25-05050) | SHIM KIT | 10001- | |
| \6\ | SHIMä 0.5MM | 10001- | ||
| \6\ | SHIMä 0.2MM | 10001- | ||
| \6\ | SHIMä 0.1MM | 10001- | ||
| \6\ | SHIMä 0.1MM | 10001- | ||
| 5 | 708-25-14130 | SPRING | 10001- | |
| 6 | 01016-51035 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- | |
| 8 | (\7\708-25-14150) | CAP | 10001- | |
| 9 | 07000-B2065 | O-RING | 10018- | |
| 07000-02065 | O-RING | 10001-10017 | ||
| 10 | (\7\708-25-05050) | SHIM KIT | 10001- | |
| \6\ | SHIMä 0.5MM | 10001- | ||
| \6\ | SHIMä 0.2MM | 10001- | ||
| \6\ | SHIMä 0.1MM | 10001- | ||
| \6\ | SHIMä 0.1MM | 10001- | ||
| 11 | 01016-51035 | BOLT | 10001- | |
| 12 | 01643-31032 | WASHER | 10001- | |
| 13 | (\7\708-25-12542) | IMPELLER | 10001- | |
| 14 | (\7\708-25-52550) | COUPLING | 10001- | |
| 15 | (\7\706-73-42270) | SCREW | 10001- |
