| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00610) | PUMP ASS'Y | 20001- | ||

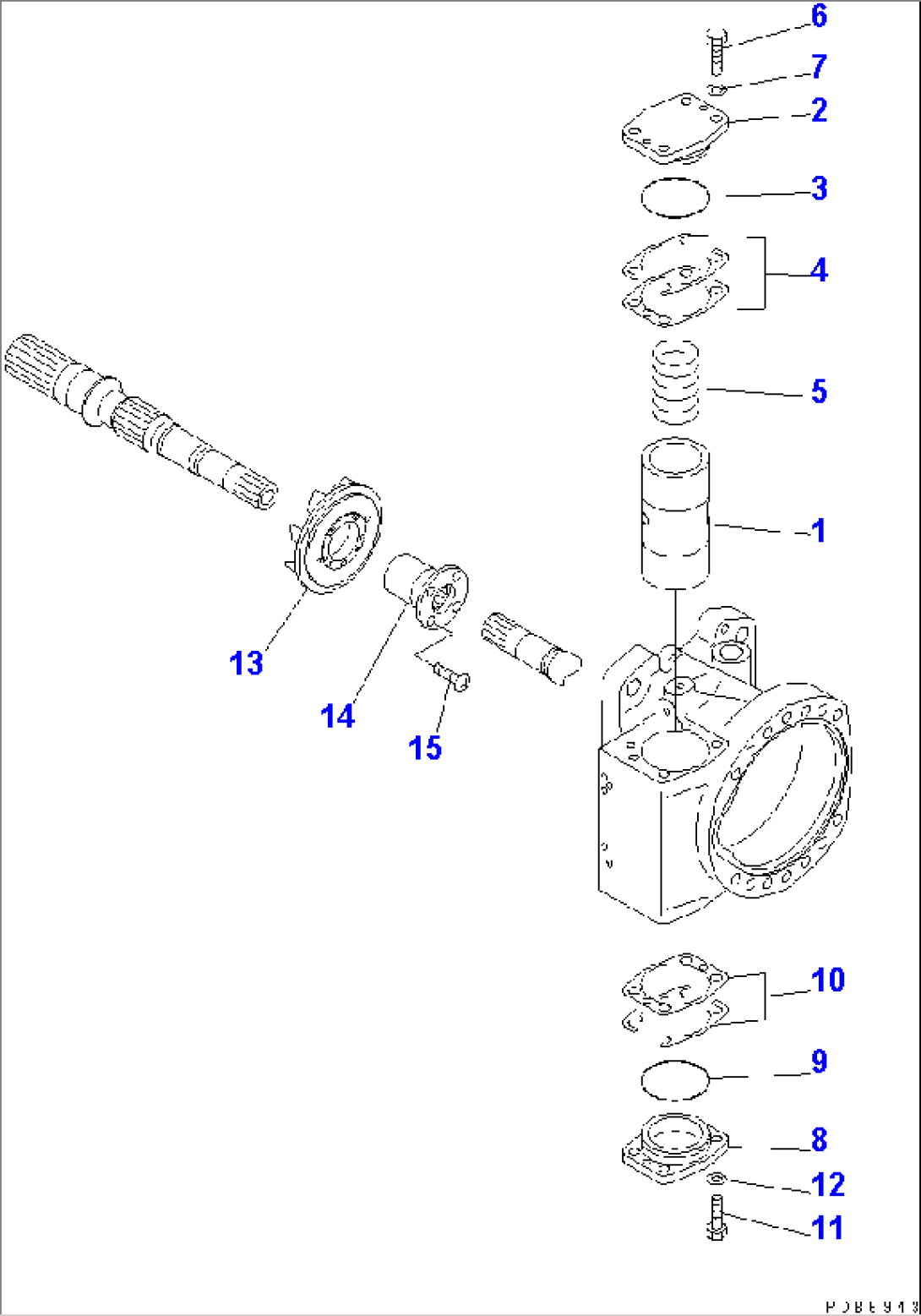

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0. | ||||
| (708-2L-01632) | PUMP SUB ASS'Y | 20001- | ||
| 1 | (\7\708-25-14112) | PISTON | 20001- | |
| 2 | (\7\708-25-14140) | CAP | 20001- | |
| 3 | 07000-B2065 | O-RING | 20001- | |
| 4 | (\7\708-25-05050) | SHIM KIT | 20001- | |
| \6\ | SHIM¤ 0.5MM | 20001- | ||
| \6\ | SHIM¤ 0.2MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- | ||
| 5 | 708-25-14130 | SPRING | 20001- | |
| 6 | 01016-51035 | BOLT | 20001- | |
| 7 | 01643-31032 | WASHER | 20001- | |
| 8 | (\7\708-25-14150) | CAP | 20001- | |
| 9 | 07000-B2065 | O-RING | 20001- | |
| 10 | (\7\708-25-05050) | SHIM KIT | 20001- | |
| \6\ | SHIM¤ 0.5MM | 20001- | ||
| \6\ | SHIM¤ 0.2MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- | ||
| 11 | 01016-51035 | BOLT | 20001- | |
| 12 | 01643-31032 | WASHER | 20001- | |
| 13 | (\7\708-25-12542) | IMPELLER | 20001- | |
| 14 | (\7\708-25-52550) | COUPLING | 20001- | |
| 15 | (\7\706-73-42270) | SCREW | 20001- |
