| Item | Part No. | Part Name | Qty | Serial No. |
| (708-3M-00030) | PUMP ASS'Y | 20001- | ||

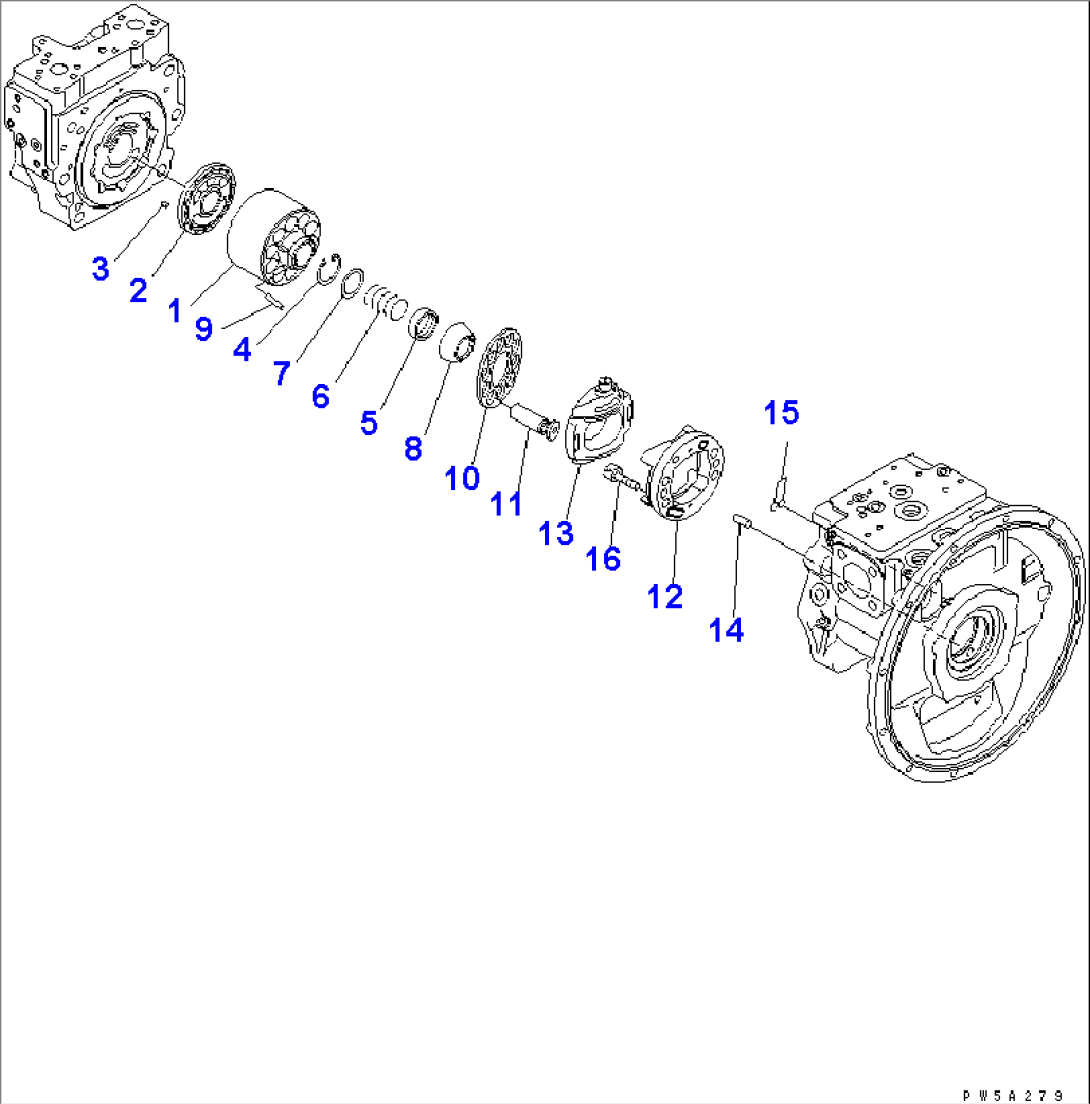

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0. | ||||
| (708-3M-01030) | PUMP SUB ASS'Y | 20001- | ||
| (\7\708-3M-04311) | BLOCK ASS'Y,CYLINDER | 20001- | ||
| 1 | \6\ | BLOCK,CYLINDER | 20001- | |
| 2 | \6\ | PLATE,VALVE | 20001- | |
| 3 | (\7\708-18-13230) | PIN | 20001- | |
| 4 | (\7\04065-05520) | RING | 20001- | |
| 5 | (\7\708-2G-13131) | SEAT | 20001- | |
| 6 | (\7\708-3M-13150) | SPRING | 20001- | |
| 7 | (\7\708-2G-13141) | SEAT | 20001- | |
| 8 | (\7\708-2G-13510) | GUIDE,RETAINER | 20001- | |
| 9 | (\7\708-2H-23360) | PIN | 20001- | |
| 10 | (\7\708-3M-13342) | RETAINER,SHOE | 20001- | |
| 11 | (\7\708-3M-13311) | PISTON SUB ASS'Y | 20001- | |
| (\7\708-3M-04161) | CRADLE SUB ASS'Y | 20001- | ||
| 12 | \6\ | CRADLE | 20001- | |
| 13 | \6\ | CAM,ROCKER | 20001- | |
| 14 | (\7\04020-01228) | PIN | 20001- | |
| 15 | (\7\07000-B1009) | O-RING | 20001- | |
| 16 | (\7\01252-61230) | BOLT | 20001- |
