| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1S-00213) | PUMP ASS'Y | .- | ||
| (708-1S-00212) | PUMP ASS'Y | 11005-. | ||
| (708-1S-00210) | PUMP ASS'Y | 10951-11004 | ||
| (708-1S-00160) | PUMP ASS'Y | 10001-10950 | ||

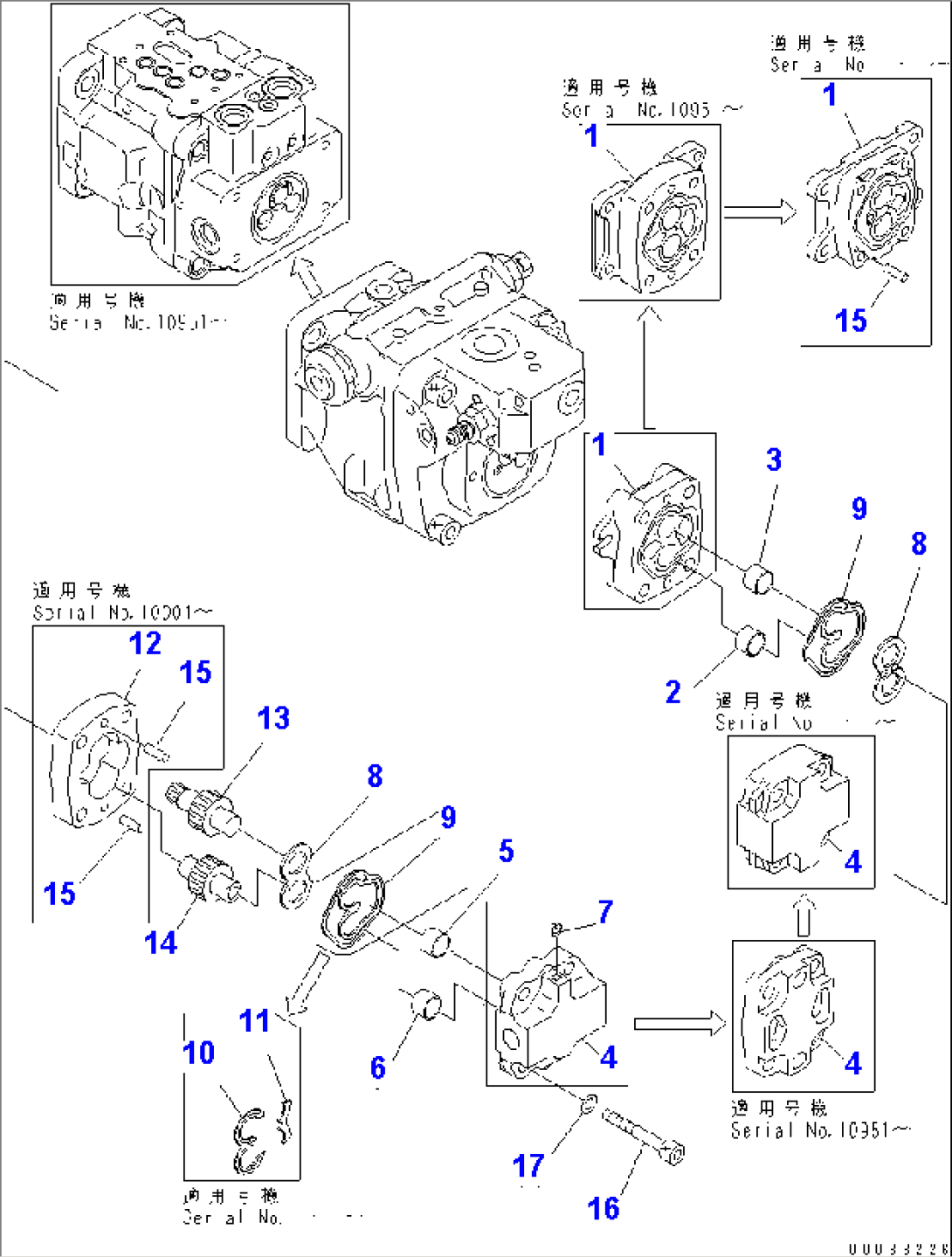

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-06A0A. | ||||
| (\7\705-41-02690) | GEAR PUMP ASS'Y | .- | ||
| (\7\705-41-02470) | GEAR PUMP ASS'Y | 10951-. | ||
| (\7\705-41-02320) | GEAR PUMP ASS'Y | 10001-10950 | ||
| (\7\705-41-83213) | BRACKET ASS'Y | .- | ||
| (\7\705-41-84050) | BRACKET ASS'Y | 10951-. | ||
| (\7\705-41-81010) | BRACKET ASS'Y | 10001-10950 | ||
| 1 | (\7\705-41-83223) | BRACKET | .- | |
| 1 | (\7\705-41-84060) | BRACKET | 10951-. | |
| 1 | (\7\705-41-81020) | BRACKET | 10001-10950 | |
| 2 | (\7\705-40-83630) | BUSHING,PLANE | .- | |
| 2 | (\7\705-40-80610) | BUSHING,PLANE | 10001-. | |
| 3 | (\7\705-40-83640) | BUSHING,PLANE | .- | |
| 3 | (\7\705-40-80620) | BUSHING,PLANE | 10001-. | |
| (\7\705-40-20A70) | COVER ASS'Y | .- | ||
| (\7\705-41-84130) | COVER ASS'Y | 10951-. | ||
| (\7\705-41-83130) | COVER ASS'Y | 10001-10950 | ||
| 4 | (\7\705-40-20A80) | COVER | .- | |
| 4 | (\7\705-41-84140) | COVER | 10951-. | |
| 4 | (\7\705-41-83140) | COVER | 10001-10950 | |
| 5 | (\7\705-40-83630) | BUSHING,PLANE | .- | |
| 5 | (\7\705-40-80610) | BUSHING,PLANE | 10001-. | |
| 6 | (\7\705-40-83640) | BUSHING,PLANE | .- | |
| 6 | (\7\705-40-80620) | BUSHING,PLANE | 10001-. | |
| 7 | (\7\705-40-80970) | PLUG | 10001-10950 | |
| 8 | (\7\705-40-83720) | PLATE,SIDE | 10001- | |
| 9 | (\7\705-40-80760) | SEAL | .- | |
| 9 | (\7\705-40-80760) | SEAL | 10001-. | |
| 10 | (\7\705-40-83760) | SEAL | .- | |
| 11 | (\7\705-40-80881) | PLATE | .- | |
| 12 | (\7\705-40-20011) | CASE,GEAR | 10001-. | |
| 13 | (\7\705-40-20J10) | GEAR,DRIVE | .- | |
| 13 | (\7\705-40-20610) | GEAR,DRIVE | 10001-. | |
| 14 | (\7\705-40-20H10) | GEAR,DRIVEN | .- | |
| 14 | (\7\705-40-20511) | GEAR,DRIVEN | 10001-. | |
| 15 | (\7\04020-00514) | PIN,DOWEL | .- | |
| 15 | (\7\705-67-01920) | PIN,DOWEL | 10001-. | |
| 16 | (\7\01252-71050) | BOLT | .- | |
| 16 | (\7\01252-71260) | BOLT | 10001-. | |
| 17 | (\7\01643-51032) | WASHER | .- | |
| 17 | (\7\01643-51232) | WASHER | 10001-. |
