| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00191) | PUMP ASS'Y | 32001- | ||

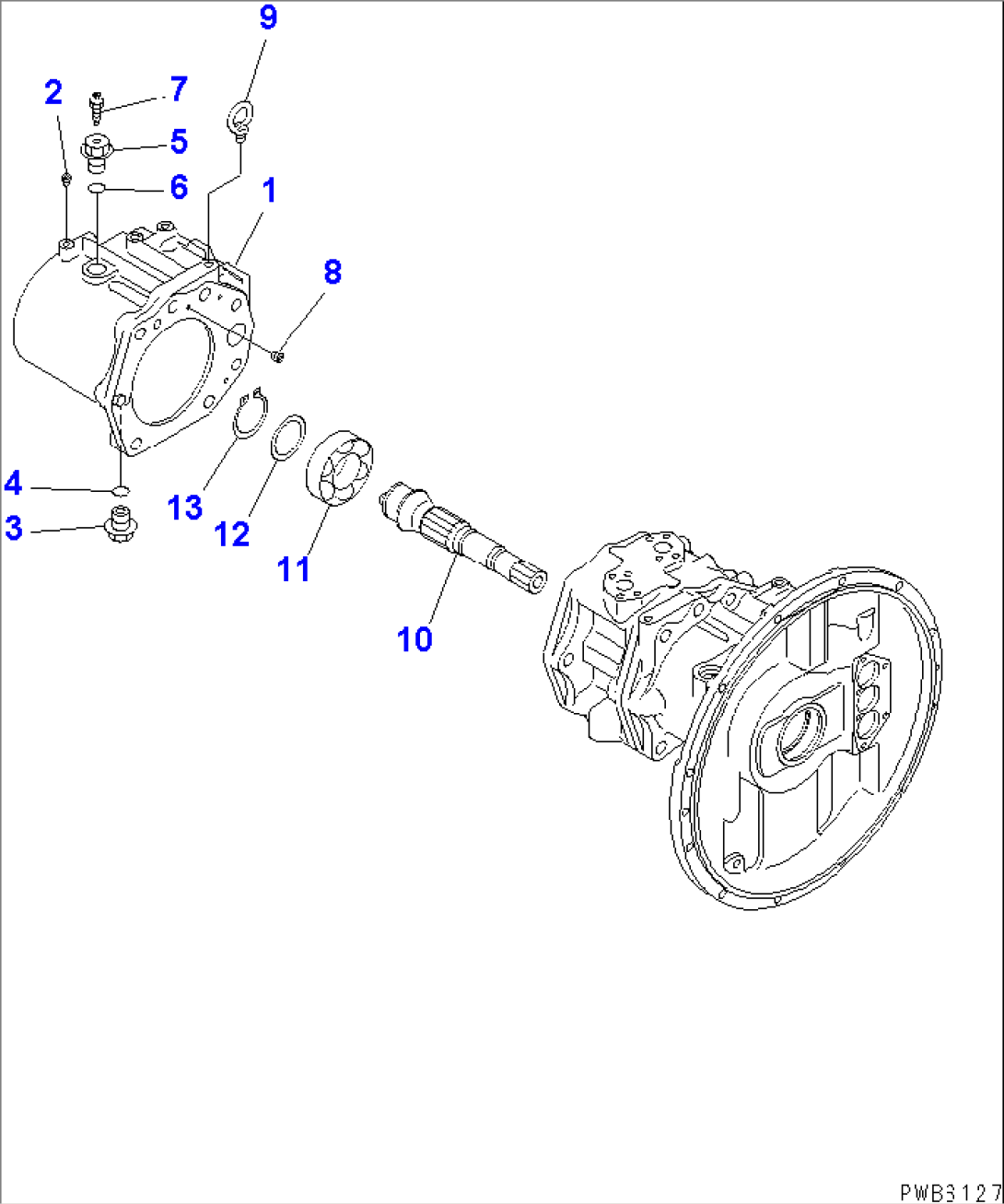

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-10A0A . | ||||
| (708-2H-01121) | PUMP SUB ASS'Y | 32001- | ||
| (\7\708-2H-04120) | CASE ASS'Y,REAR | 32001- | ||
| 1 | \6\ | CASE,REAR | 32001- | |
| 2 | \6\ | PLUG | 32001- | |
| 3 | 07044-12412 | PLUG | 32001- | |
| 4 | 708-1W-28910 | O-RING | 32001- | |
| 5 | 706-87-40150 | PLUG | 32001- | |
| 6 | 708-1W-28910 | O-RING | 32001- | |
| 7 | 20B-27-11210 | BLEEDER | 32001- | |
| 8 | (\7\708-2L-25650) | ORIFICE | 32001- | |
| 9 | 04530-01222 | BOLT,EYE | 32001- | |
| 10 | (\7\708-2H-22220) | SHAFT | 32001- | |
| 11 | (\7\708-1H-22150) | BEARING | 32001- | |
| 12 | (\7\708-17-05010) | WASHER KIT | 32001- | |
| 12 | \6\ | WASHER, 3.0MM | 32001- | |
| 12 | \6\ | WASHER, 3.1MM | 32001- | |
| 12 | \6\ | WASHER, 3.2MM | 32001- | |
| 13 | (\7\708-17-12780) | RING,SNAP | 32001- |
