| Item | Part No. | Part Name | Qty | Serial No. |
| (705-41-08260) | PUMP ASS'Y | 4483- | ||

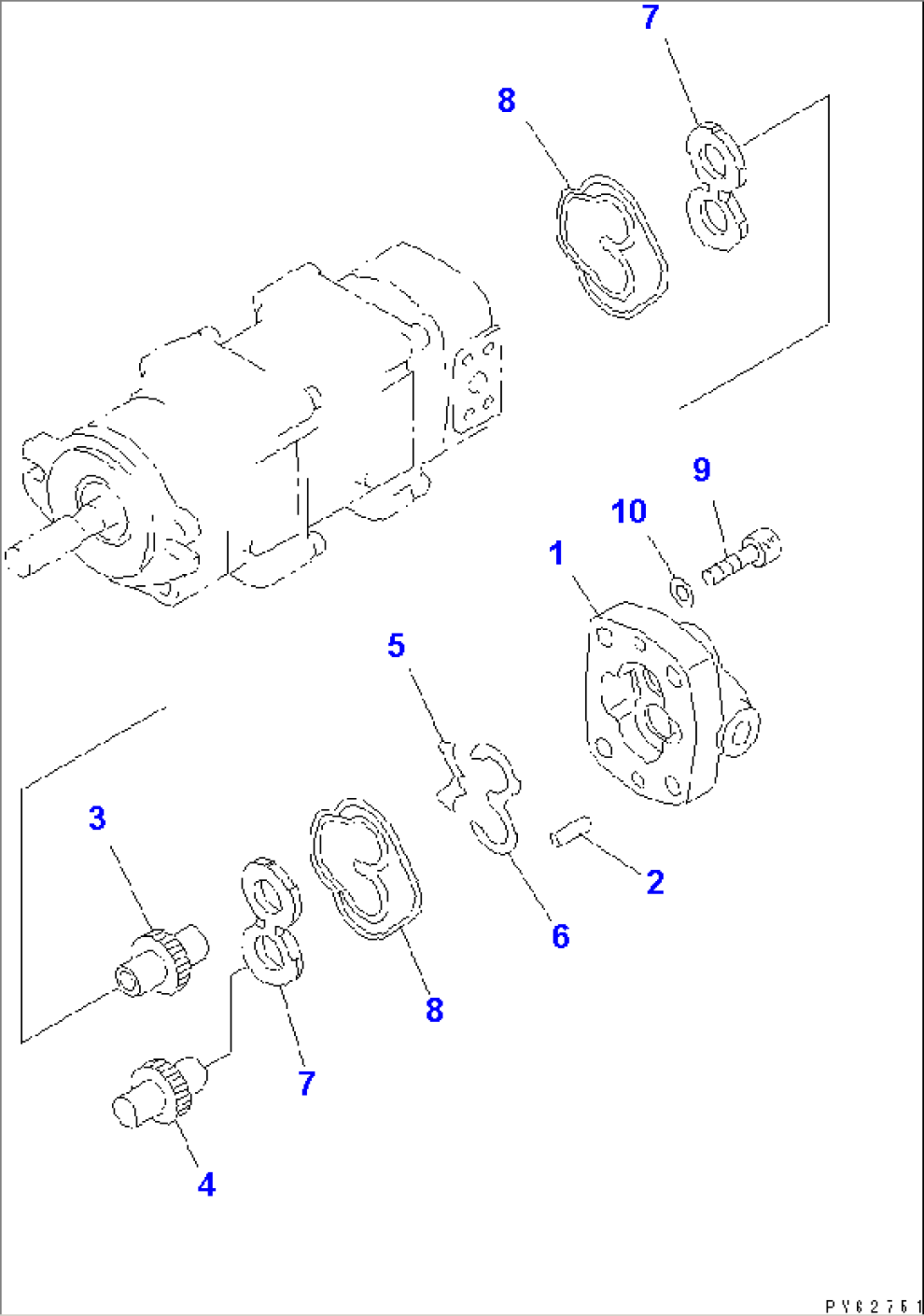

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0A T0 Y1610-04A0A . | ||||
| 705-41-05150 | PUMP ASS'Y,(SBR7 + 2.5) | 4483- | ||
| 1 | (\7\705-40-14040) | HOUSING | 4483- | |
| 2 | (\7\04020-00820) | PIN | 4483- | |
| 3 | (\7\705-40-14650) | GEAR,DRIVE | 4483- | |
| 4 | (\7\705-40-14510) | GEAR,DRIVEN | 4483- | |
| 5 | (\7\705-40-80880) | PLATE | 4483- | |
| 6 | (\7\705-40-83760) | SEAL | 4483- | |
| 7 | (\7\705-40-83720) | PLATE,SIDE | 4483- | |
| 8 | (\7\705-40-80760) | SEAL,RING | 4483- | |
| 9 | (\7\705-41-80910) | BOLT | 4483- | |
| 10 | (\7\01643-51232) | WASHER | 4483- |
