| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00610) | PUMP ASS'Y | 20001- | ||

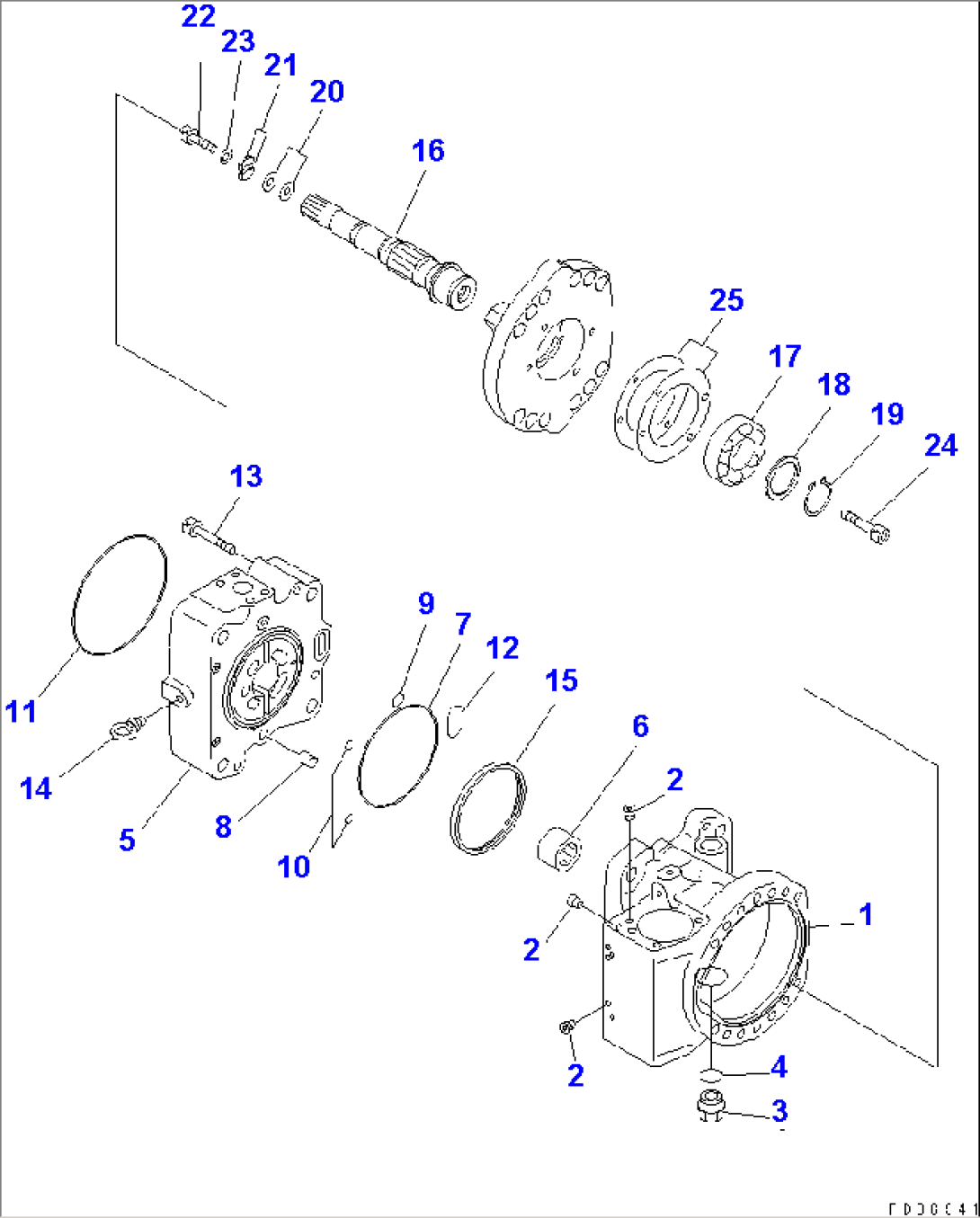

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0. | ||||
| (708-2L-01632) | PUMP SUB ASS'Y | 20001- | ||
| (\7\708-2L-04960) | CASE ASS'Y,REAR | 20001- | ||
| 1 | \6\ | CASE,REAR | 20001- | |
| 2 | \6\ | PLUG | 20001- | |
| 3 | 07044-12412 | PLUG | 20001- | |
| 4 | 07002-62434 | O-RING | 20001- | |
| 5 | 708-2L-21540 | CAP,END | 20001- | |
| 6 | (\7\708-2L-32260) | BEARING | 20001- | |
| 7 | (\7\07000-B2135) | O-RING | 20001- | |
| 8 | (\7\6130-21-1910) | PIN,DOWEL | 20001- | |
| 9 | (\7\07000-B2015) | O-RING | 20001- | |
| 10 | (\7\07000-B1009) | O-RING | 20001- | |
| 11 | (\7\07000-B5165) | O-RING | 20001- | |
| 12 | (\7\07000-B3032) | O-RING | 20001- | |
| 13 | (\7\708-25-12530) | BOLT | 20001- | |
| 14 | 04530-01018 | BOLT,EYE | 20001- | |
| 15 | (\7\708-25-13630) | RING | 20001- | |
| 16 | (\7\708-2L-22440) | SHAFT,REAR | 20001- | |
| 17 | (\7\708-2L-32150) | BEARING | 20001- | |
| 18 | (\7\708-2E-05040) | WASHER KIT | 20001- | |
| \6\ | WASHER¤ 3.1MM | 20001- | ||
| \6\ | WASHER¤ 3.0MM | 20001- | ||
| \6\ | WASHER¤ 2.9MM | 20001- | ||
| \6\ | WASHER¤ 2.8MM | 20001- | ||
| 19 | (\7\708-25-12790) | RING,SNAP | 20001- | |
| 20 | (\7\708-25-05021) | SHIM KIT | 20001- | |
| \6\ | SHIM¤ 0.5MM | 20001- | ||
| \6\ | SHIM¤ 0.2MM | 20001- | ||
| \6\ | SHIM¤ 0.15MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- | ||
| 21 | (\7\708-25-12950) | PLATE | 20001- | |
| 22 | (\7\706-74-40320) | BOLT | 20001- | |
| 23 | (\7\01643-31032) | WASHER | 20001- | |
| 24 | (\7\01252-31016) | BOLT | 20001- | |
| 25 | (\7\708-25-05130) | SHIM KIT | 20001- | |
| \6\ | SHIM¤ 0.2MM | 20001- | ||
| \6\ | SHIM¤ 0.1MM | 20001- |
