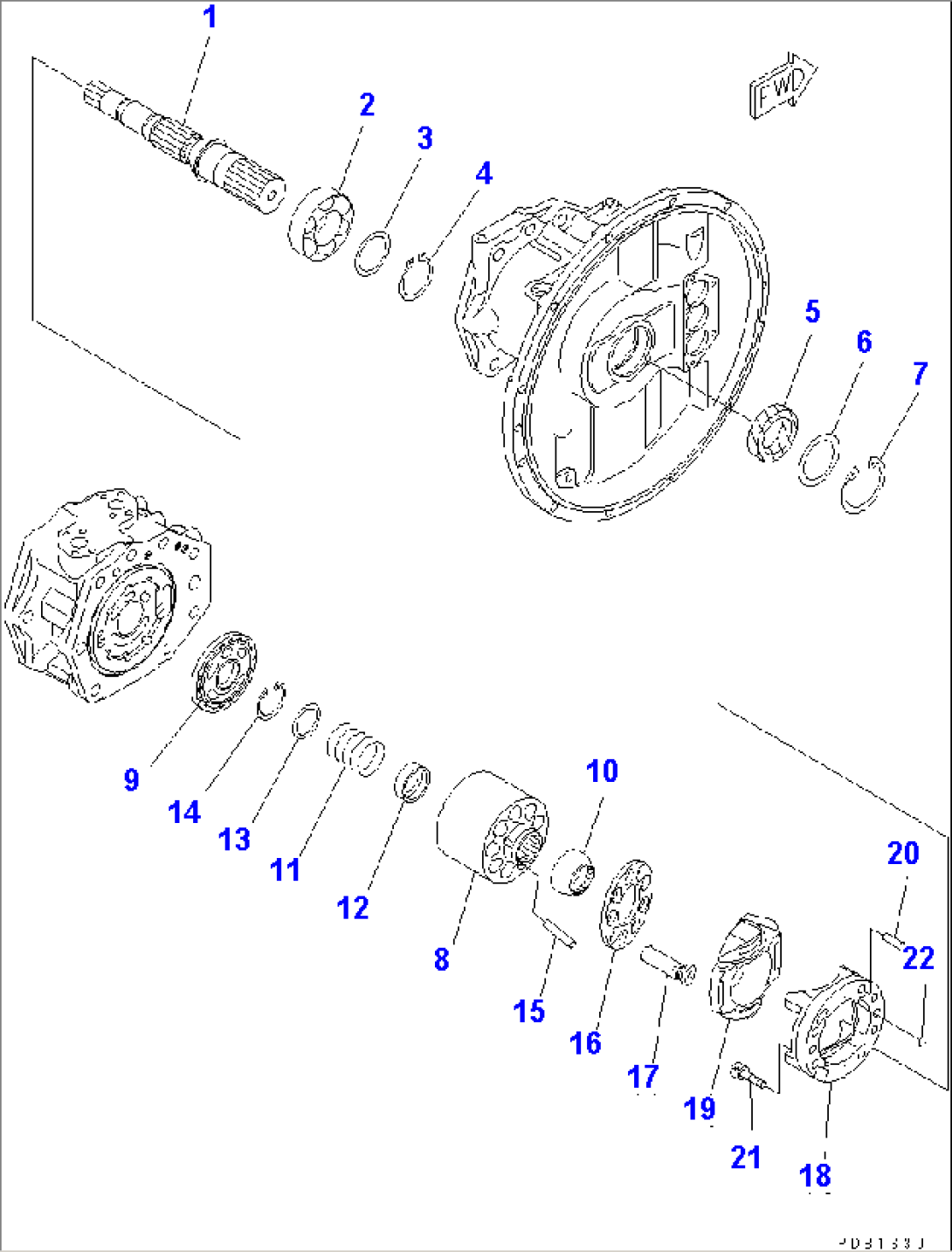

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00181) | PUMP ASS'Y | K32001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0A TO H0210-56A0. | ||||
| (708-2H-00130) | PUMP ASS'Y | K30001-K31999 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0 TO H0210-59A0. | ||||
| (708-2H-01181) | PUMP SUB ASS'Y | K32001- | ||
| (708-2H-01130) | PUMP ASS'Y | K30001-K31999 | ||
| 1 | (\7\708-2H-22110) | SHAFT,FRONT | K30001- | |
| 2 | (\7\708-1H-12151) | BEARING | K30001- | |
| 3 | (\7\708-17-05010) | WASHER KIT | K30001- | |
| \6\ | WASHER¤ 3.0MM | K30001- | ||
| \6\ | WASHER¤ 3.1MM | K30001- | ||
| \6\ | WASHER¤ 3.2MM | K30001- | ||
| 4 | (\7\708-17-12780) | RING | K30001- | |
| 5 | 708-27-22810 | SEAL,OIL | K30001- | |
| 6 | 708-2H-22160 | SPACER | K30001- | |
| 7 | 04065-08225 | RING,SNAP | K30001- | |
| (\7\708-2H-04140) | CYLINDER BLOCK ASS'Y | K30001- | ||
| 8 | (\7\708-2H-23160) | BLOCK,CYLINDER | K30001- | |
| 9 | (\7\708-2H-23230) | PLATE,VALVE | K30001- | |
| 10 | (\7\708-2H-23350) | GUIDE,GUIDE | K30001- | |
| 11 | (\7\708-2H-23151) | SPRING | K30001- | |
| 12 | (\7\708-2H-23130) | SEAT | K30001- | |
| 13 | (\7\708-2H-23141) | SEAT | K30001- | |
| 14 | (\7\04065-05820) | RING | K30001- | |
| 15 | (\7\708-2H-23360) | PIN | K30001- | |
| 16 | (\7\708-2H-23340) | RETAINER,SHOE | K30001- | |
| 17 | (\7\708-2H-23311) | PISTON SUB ASS'Y | K30001- | |
| (\7\708-2H-04160) | CRADLE ASS'Y | K30001- | ||
| 18 | (\7\708-2H-23850) | CRADLE | K30001- | |
| 19 | (\7\708-2H-23450) | CAM,ROCKER | K30001- | |
| 20 | (\7\04020-01434) | PIN | K30001- | |
| 21 | (\7\706-75-40340) | BOLT | K30001- | |
| 22 | (\7\07000-B1009) | O-RING | K30001- |
