| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1W-00042) | PUMP ASS'Y | 45001-52373 | ||

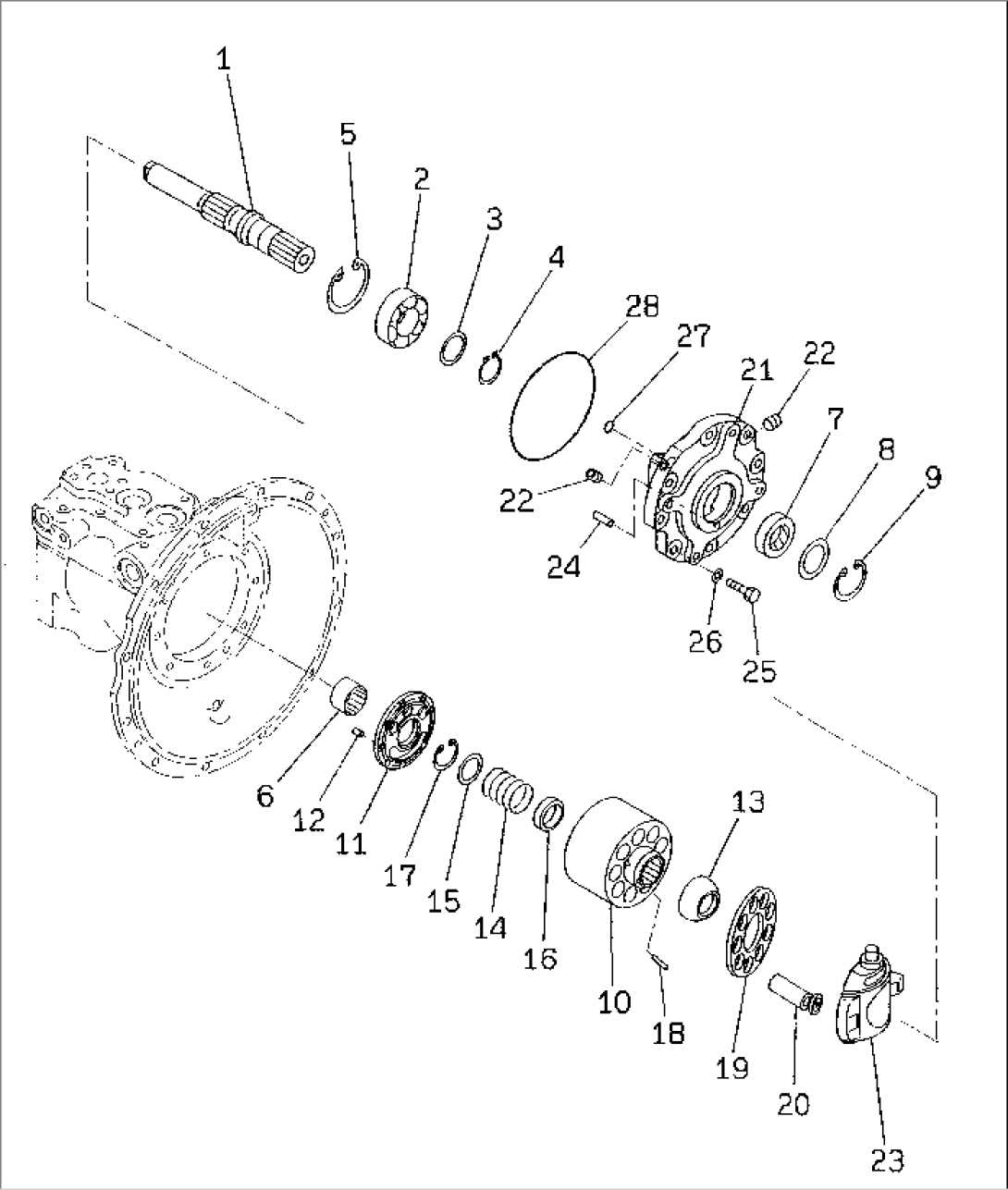

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-05A2. | ||||
| (708-1W-01042) | PUMP SUB ASS'Y | 45001-52373 | ||
| 1 | (\7\708-1W-22111) | SHAFT | 45001-52373 | |
| 2 | (\7\708-1W-22140) | BEARING | 45001-52373 | |
| 3 | (\7\708-23-05011) | WASHER KIT | 45001-52373 | |
| \6\ | WASHER¤ 2.50MM | 45001-52373 | ||
| \6\ | WASHER¤ 2.60MM | 45001-52373 | ||
| \6\ | WASHER¤ 2.70MM | 45001-52373 | ||
| \6\ | WASHER¤ 2.80MM | 45001-52373 | ||
| 4 | (\7\708-23-12840) | RING,SNAP | 45001-52373 | |
| 5 | (\7\04065-07225) | RING,SNAP | 45001-52373 | |
| 6 | (\7\708-1D-12130) | BEARING | 45001-52373 | |
| 7 | 708-8D-12220 | SEAL,OIL | 45001-52373 | |
| 8 | 708-1W-22160 | SPACER | 45001-52373 | |
| 9 | 04065-05520 | RING,SNAP | 45001-52373 | |
| 708-1W-04081 | CYLINDER BLOCK ASS'Y | 45001-52373 | ||
| 10 | (\7\708-1W-23110) | BLOCK,CYLINDER | 45001-52373 | |
| 11 | (\7\708-1W-23211) | PLATE,VALVE | 45001-52373 | |
| 12 | (\7\720-68-19610) | PIN | 45001-52373 | |
| 13 | (\7\708-1W-23351) | GUIDE,RETAINER | 45001-52373 | |
| 14 | (\7\708-1W-23150) | SPRING | 45001-52373 | |
| 15 | (\7\708-1W-23130) | SEAT | 45001-52373 | |
| 16 | (\7\708-1W-23140) | SEAT | 45001-52373 | |
| 17 | (\7\04065-04218) | RING,SNAP | 45001-52373 | |
| 18 | (\7\708-7L-13360) | PIN | 45001-52373 | |
| 19 | (\7\708-1W-23340) | RETAINER,SHOE | 45001-52373 | |
| 20 | (\7\708-1W-23311) | PISTON SUB ASS'Y | 45001-52373 | |
| (\7\708-1W-04061) | CRADLE ASS'Y | 45001-52373 | ||
| (\7\708-1W-04050) | CRADLE SUB ASS'Y | 45001-52373 | ||
| 21 | \6\ | CRADLE | 45001-52373 | |
| 22 | \6\ | PLUG | 45001-52373 | |
| 23 | (\7\708-1W-23412) | CAM,ROCKER | 45001-52373 | |
| 24 | (\7\04020-01024) | PIN,DOWEL | 45001-52373 | |
| 25 | (\7\01010-51035) | BOLT | 45001-52373 | |
| 26 | (\7\01643-31032) | WASHER | 45001-52373 | |
| 27 | (\7\07000-B2011) | O-RING | 45001-52373 | |
| 28 | (\7\07000-02145) | O-RING | 45001-52373 |
