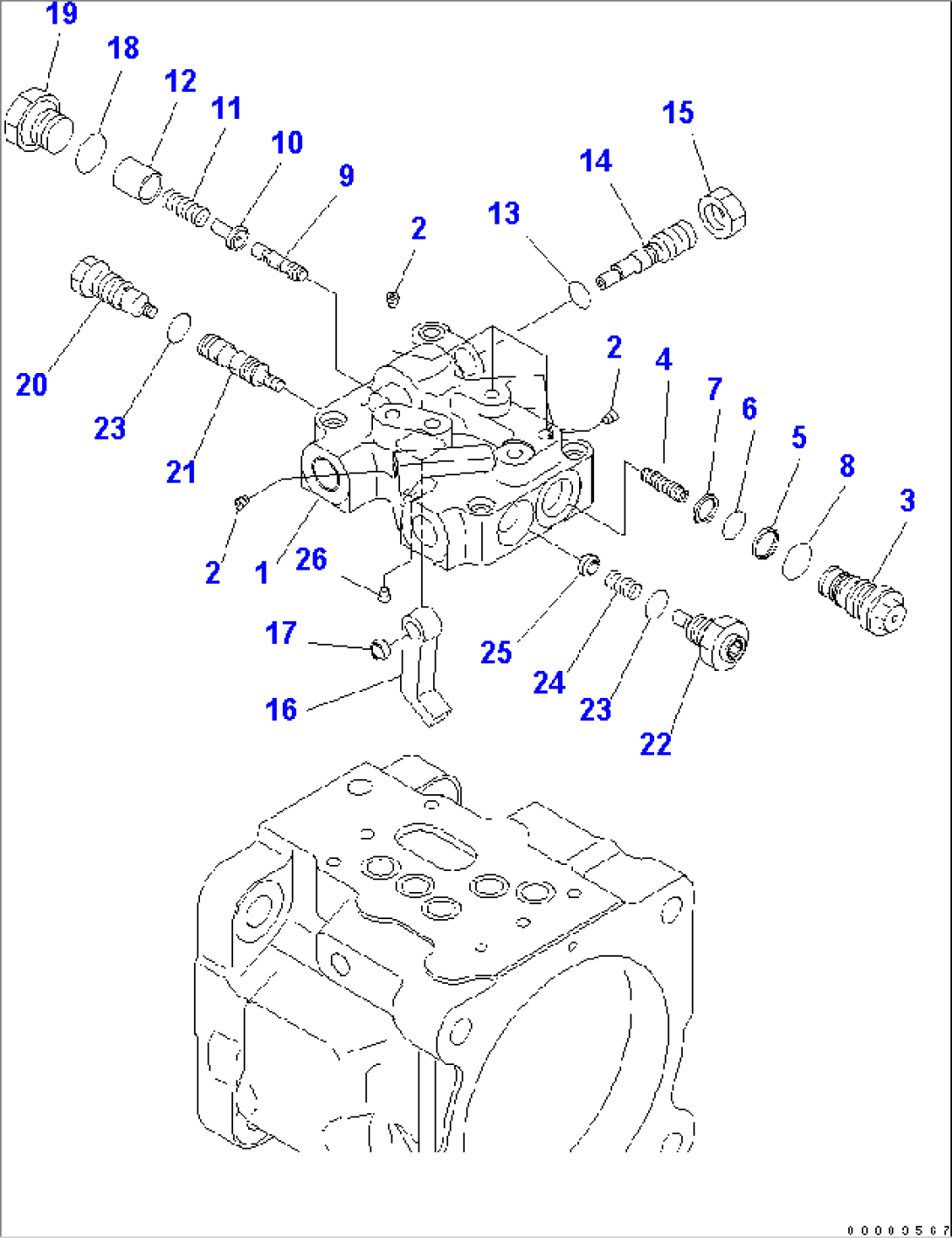

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1S-00213) | PUMP ASS'Y | .- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-06A0A . | ||||
| (\7\708-1S-03440) | VALVE ASS'Y | .- | ||
| \6\ | BODY ASS'Y | .- | ||
| 1 | \6\ | BODY | .- | |
| 2 | \6\ | PLUG | .- | |
| (\7\708-1S-04320) | SLEEVE SUB ASS'Y | .- | ||
| 3 | \6\ | SLEEVE | .- | |
| 4 | \6\ | PISTON | .- | |
| 5 | \6\ | SEAL | .- | |
| 6 | \6\ | O-RING | .- | |
| 7 | \6\ | RING,BACK-UP | .- | |
| 8 | \6\ | O-RING | .- | |
| 9 | \6\ | SPOOL | .- | |
| 10 | \6\ | SEAT | .- | |
| 11 | \6\ | SPRING | .- | |
| 12 | \6\ | RETAINER | .- | |
| 13 | \6\ | O-RING | .- | |
| 14 | \6\ | PLUG | .- | |
| 15 | 01582-11210 | NUT | .- | |
| 16 | \6\ | LEVER | .- | |
| 17 | \6\ | SPACER | .- | |
| 18 | \6\ | O-RING | .- | |
| 19 | \6\ | PLUG | .- | |
| 20 | \6\ | PLUG | .- | |
| 21 | \6\ | SPOOL | .- | |
| 22 | \6\ | PLUG | .- | |
| 23 | \6\ | O-RING | .- | |
| 24 | \6\ | SPRING | .- | |
| 25 | \6\ | SEAT | .- | |
| 26 | \6\ | ORIFICE | .- |
