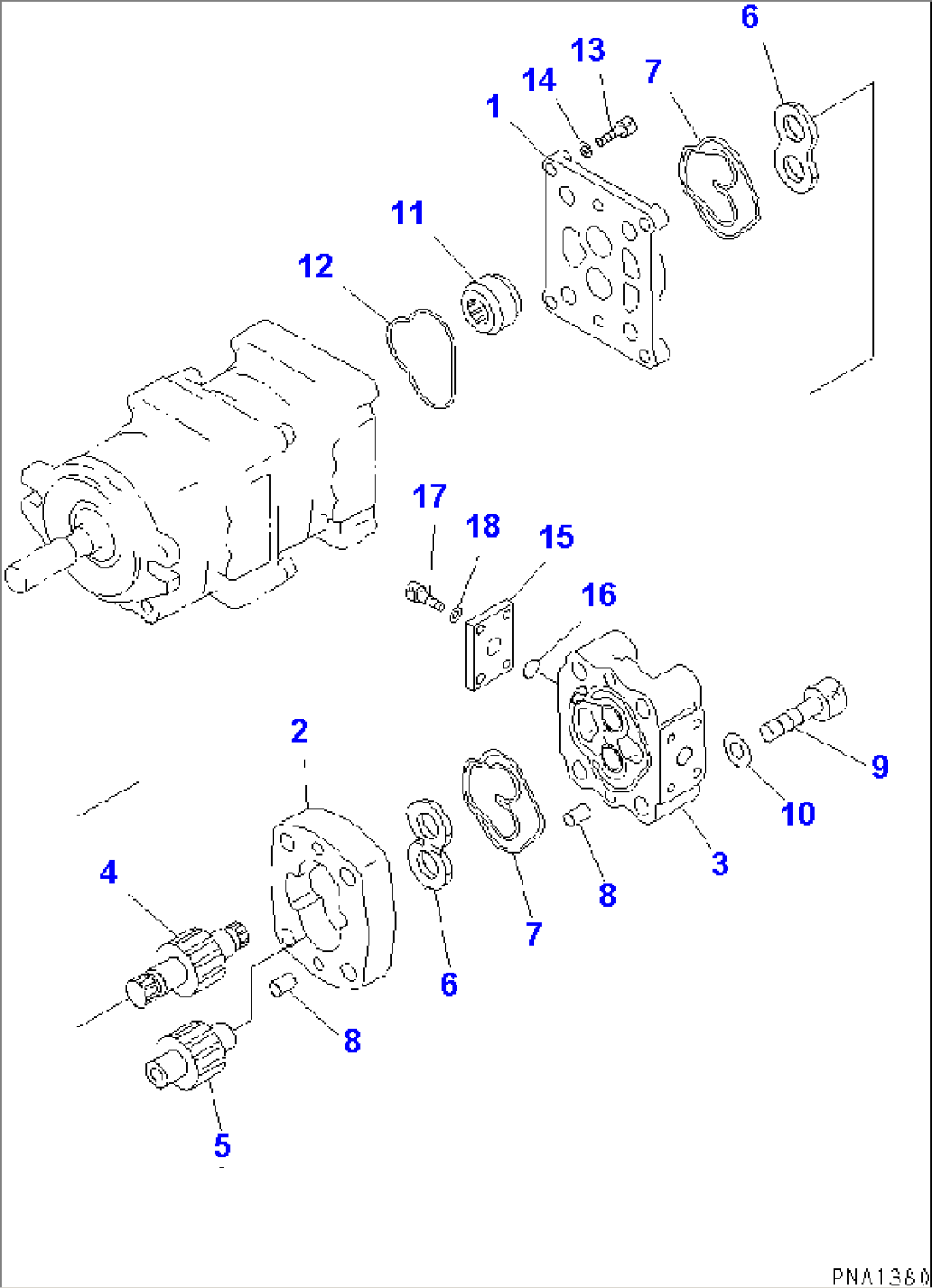

| Item | Part No. | Part Name | Qty | Serial No. |
| (705-41-08090) | PUMP ASS'Y | | 8001-12771 |
| | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0 TO H0210-53A0. | | |
| 705-41-05050 | PUMP ASS'Y (SBR9) | | 8001-12771 |
| 1 | (\7\705-40-80511) | BRACKET | | 8001-12771 |
| (\7\705-40-80620) | BUSHING,PLANE (DRIVE SIDE) | | 8001-12771 |
| (\7\705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | | 8001-12771 |
| 2 | (\7\705-40-21011) | CASE,GEAR | | 8001-12771 |
| 3 | (\7\705-41-80110) | COVER | | 8001-12771 |
| (\7\705-40-80610) | BUSHING,PLANE (DRIVE SIDE) | | 8001-12771 |
| (\7\705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | | 8001-12771 |
| 4 | (\7\705-40-21452) | GEAR,DRIVE | | 8001-12771 |
| 5 | (\7\705-40-21511) | GEAR,DRIVEN | | 8001-12771 |
| 6 | (\7\705-40-80720) | PLATE,SIDE | | 8001-12771 |
| 7 | (\7\705-40-80760) | SEAL | | 8001-12771 |
| 8 | (\7\04020-00820) | PIN,DOWEL | | 8001-12771 |
| 9 | (\7\705-41-80870) | BOLT | | 8001-12771 |
| 10 | (\7\01643-51232) | WASHER | | 8001-12771 |
| 11 | 705-67-01330 | COUPLING ASS'Y | | 8001-12771 |
| 12 | 705-40-80660 | SEAL | | 8001-12771 |
| 13 | 705-41-80750 | BOLT | | 8001-12771 |
| 14 | 01643-50823 | WASHER | | 8001-12771 |
| 15 | 705-40-80941 | PLATE | | 8001-12771 |
| 16 | 07000-02021 | O-RING | | 8001-12771 |
| 17 | 705-41-80750 | BOLT | | 8001-12771 |
| 18 | 01643-50823 | WASHER | | 8001-12771 |
