| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2K-00113) | PUMP ASS'Y | 60020- | ||

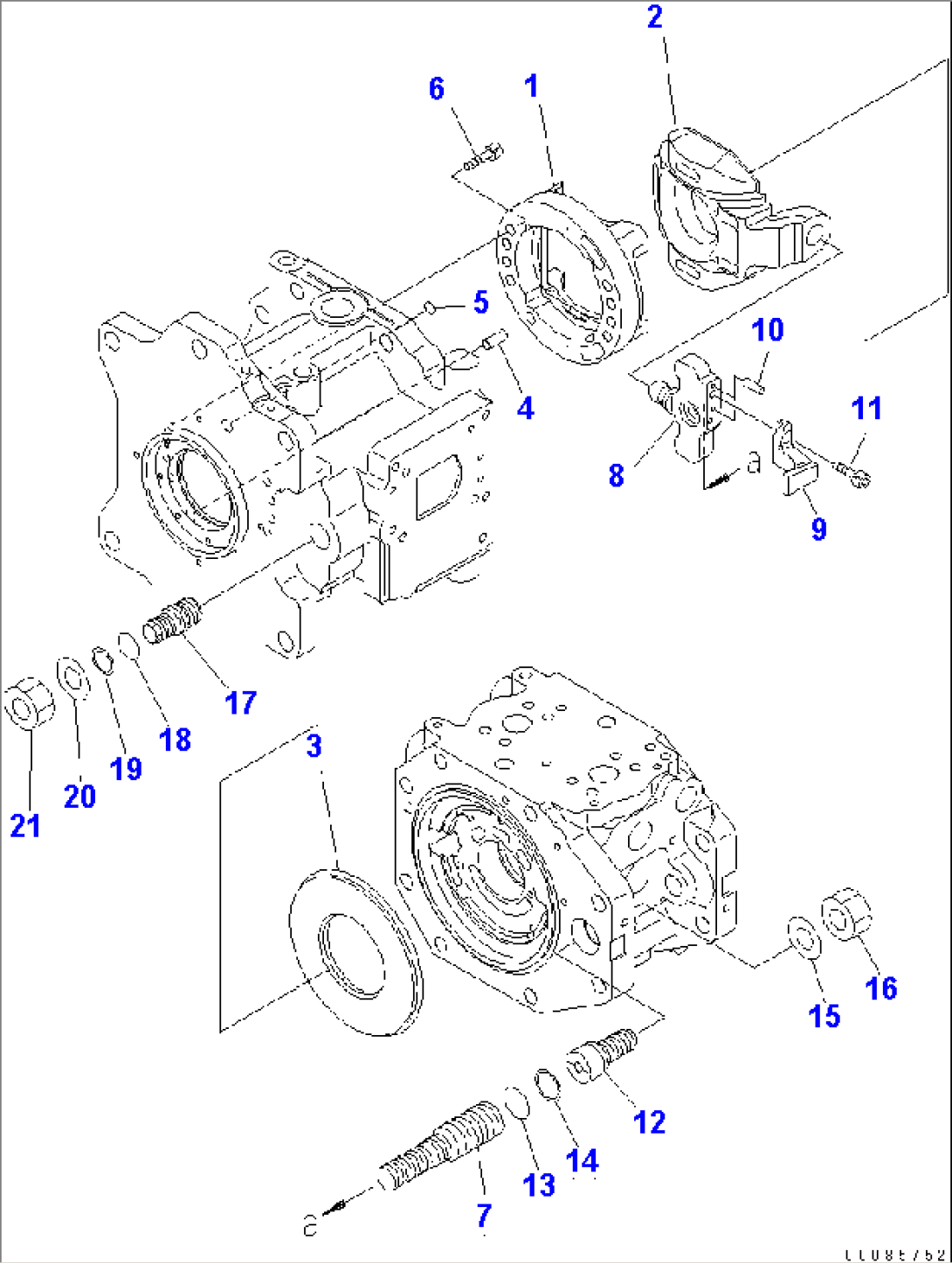

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A T0 Y1600-14A0A . | ||||
| (708-2K-01115) | PUMP SUB ASS'Y | 60020- | ||
| (\7\708-2K-04260) | CRADLE ASS'Y | 60020- | ||
| 1 | \6\ | CRADLE | 60020- | |
| 2 | \6\ | CAM,ROCKER | 60020- | |
| 3 | (\7\708-2K-13430) | PLATE | 60020- | |
| 4 | (\7\04020-01638) | PIN,DOWEL | 60020- | |
| 5 | (\7\708-2K-11170) | O-RING | 60020- | |
| 6 | (\7\01252-61445) | BOLT | 60020- | |
| 7 | (\7\708-2K-14110) | PISTON | 60020- | |
| 8 | (\7\708-2K-14130) | ROD | 60020- | |
| 9 | (\7\708-2K-15180) | CAM | 60020- | |
| 10 | (\7\720-68-19610) | PIN | 60020- | |
| 11 | (\7\01252-61030) | BOLT | 60020- | |
| 12 | (\7\708-2K-14250) | SCREW | 60020- | |
| 13 | (\7\07000-B3039) | O-RING | 60020- | |
| 14 | (\7\07001-03039) | RING | 60020- | |
| 15 | 01643-33080 | WASHER | 60020- | |
| 16 | 01583-13018 | NUT | 60020- | |
| 17 | 708-2K-14230 | SCREW | 60020- | |
| 18 | 07000-B3032 | O-RING | 60020- | |
| 19 | 07001-03032 | RING | 60020- | |
| 20 | 01643-33080 | WASHER | 60020- | |
| 21 | 01583-13018 | NUT | 60020- |
