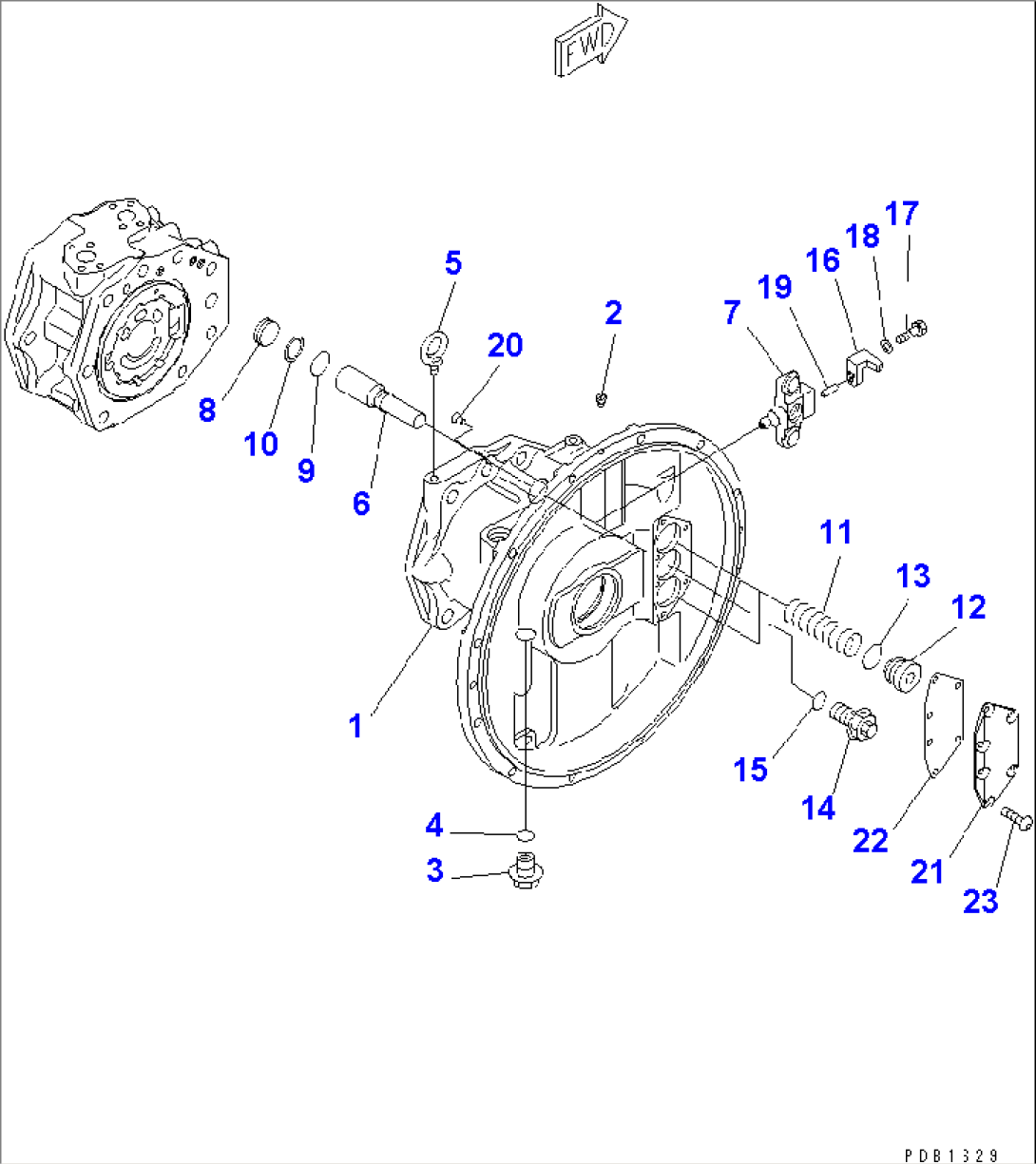

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2H-00181) | PUMP ASS'Y | K32001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0A TO H0210-56A0. | ||||
| (708-2H-00130) | PUMP ASS'Y | K30001-K31999 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.H0210-51A0 TO H0210-59A0. | ||||
| 708-2H-01181 | PUMP SUB ASS'Y | K32001- | ||
| 708-2H-01130 | PUMP ASS'Y | K30001-K31999 | ||
| (\7\708-2H-04110) | CASE ASS'Y,FRONT | K30001- | ||
| 1 | \6\ | CASE,FRONT | K30001- | |
| 2 | \6\ | PLUG | K30001- | |
| 3 | 07044-12412 | PLUG | K30001- | |
| 4 | 07002-02434 | O-RING | K30001- | |
| 5 | 04530-01222 | BOLT | K30001- | |
| 6 | (\7\708-2H-24310) | PISTON | K30001- | |
| 7 | (\7\708-2H-24220) | ROD | K30001- | |
| 8 | (\7\708-2H-24260) | STOPPER | K30001- | |
| 9 | (\7\07000-B3032) | O-RING | K30001- | |
| 10 | (\7\07001-03032) | RING,BACK-UP | K30001- | |
| 11 | 708-2H-24140 | SPRING | K30001- | |
| 12 | 708-2H-24130 | PLUG | K30001- | |
| 13 | 07002-03634 | O-RING | K30001- | |
| 14 | (\7\708-2H-24270) | SCREW | K30001- | |
| 15 | (\7\708-1W-28910) | O-RING | K30001- | |
| 16 | (\7\708-2H-25870) | CAM | K30001- | |
| 17 | (\7\01010-80825) | BOLT | K30001- | |
| 18 | (\7\01643-30823) | WASHER | K30001- | |
| 19 | (\7\04020-00514) | PIN | K30001- | |
| 20 | (\7\708-2L-25650) | ORIFICE | K30001- | |
| 21 | 708-2H-24330 | PLATE | K30001- | |
| 22 | 708-2H-24340 | PACKING | K30001- | |
| 23 | 708-23-12350 | SCREW | K30001- |
