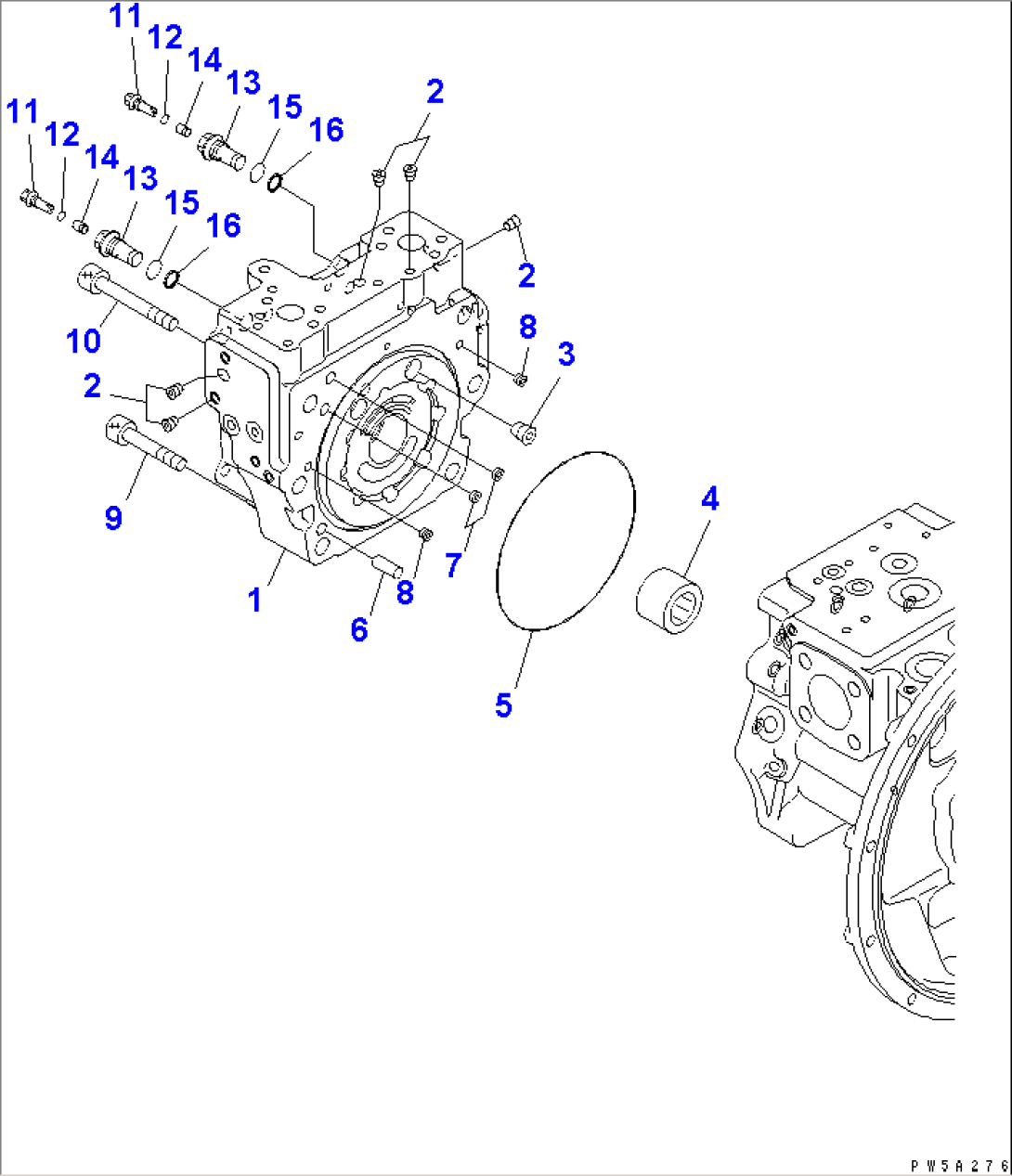

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-3M-00030) | PUMP ASS'Y | 20001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-09A0. | ||||
| (708-3M-01030) | PUMP SUB ASS'Y | 20001- | ||
| (\7\708-3M-04213) | CAP ASS'Y,END | 20001- | ||
| 1 | \6\ | CAP,END | 20001- | |
| 2 | \6\ | PLUG | 20001- | |
| 3 | \6\ | PLUG | 20001- | |
| 4 | (\7\708-2G-12151) | BEARING | 20001- | |
| 5 | (\7\07000-A5185) | O-RING | 20001- | |
| 6 | (\7\04020-01228) | PIN | 20001- | |
| 7 | 708-2L-25480 | FILTER | 20001- | |
| 8 | 708-1L-29340 | ORIFICE | 20001- | |
| 9 | 01252-61685 | BOLT | 20001- | |
| 10 | 01253-61620 | BOLT | 20001- | |
| 708-3M-05110 | VALVE ASS'Y | 20001- | ||
| 11 | \6\ | PLUG | 20001- | |
| 12 | \6\ | O-RING | 20001- | |
| 13 | \6\ | HOLDER | 20001- | |
| 14 | \6\ | VALVE | 20001- | |
| 15 | \6\ | O-RING | 20001- | |
| 16 | \6\ | SEAL | 20001- |
