| Item | Part No. | Part Name | Qty | Serial No. |
| (708-3S-00332) | PUMP ASS'Y | 3775- | ||
| (708-3S-00331) | PUMP ASS'Y | 3240-3774 | ||

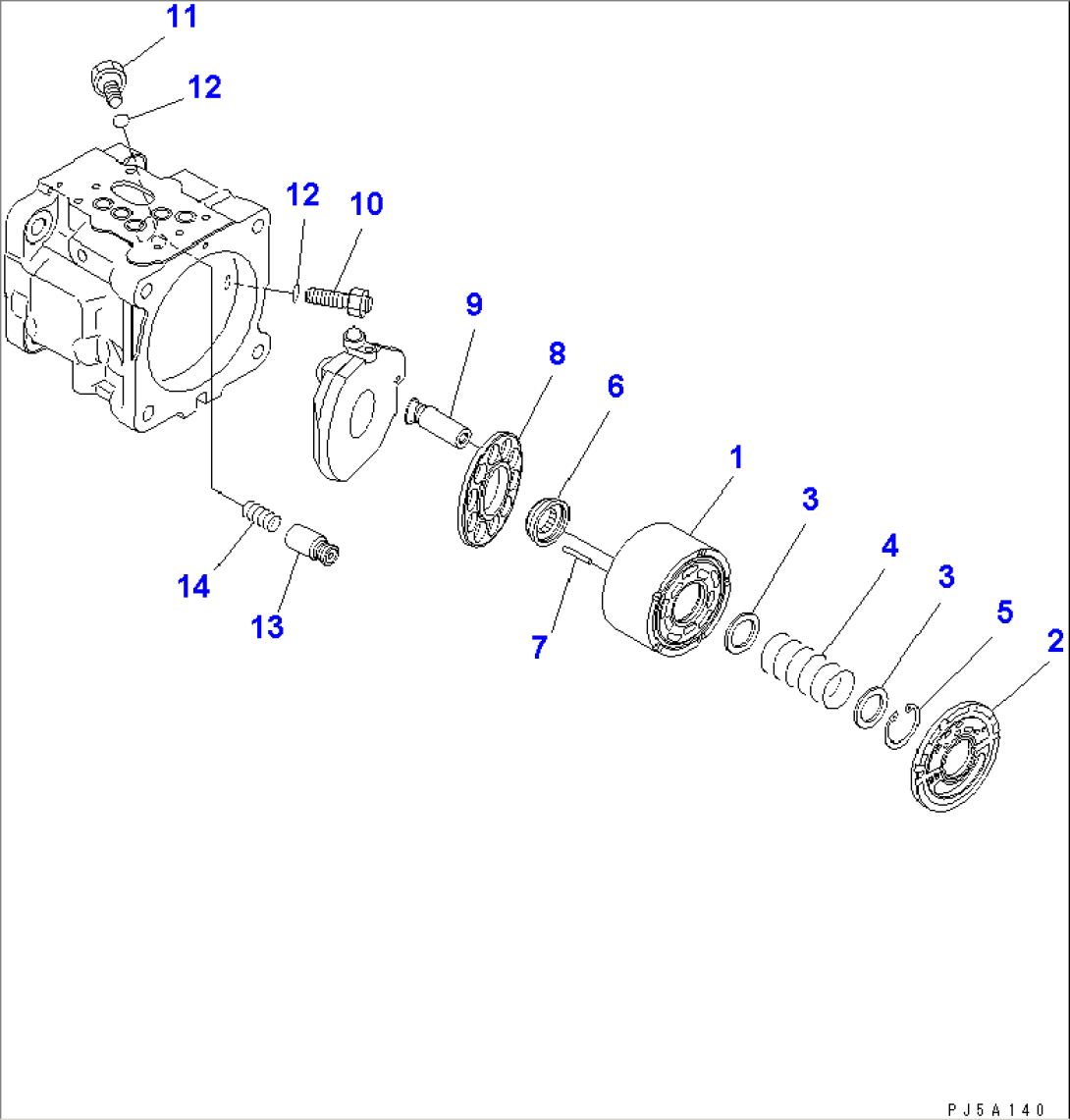

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0A TO Y1600-06A0A . | ||||
| (708-3S-01321) | PUMP SUB ASS'Y | 3775- | ||
| (708-3S-01320) | PUMP SUB ASS'Y | 3240-3774 | ||
| 1 | (\7\708-3S-13120) | BLOCK,CYLINDER | 3240- | |
| 2 | (\7\708-3S-13220) | PLATE,VALVE | 3240- | |
| 3 | (\7\708-3S-13160) | WASHER | 1001- | |
| 4 | (\7\708-3S-13150) | SPRING | 1001- | |
| 5 | (\7\04065-03515) | RING,SNAP | 1001- | |
| 6 | (\7\708-3S-13370) | GUIDE,RETAINER | 3240- | |
| 7 | (\7\708-1S-13380) | PIN | 3240- | |
| 8 | (\7\708-3S-13410) | RETAINER,SHOE | 3240- | |
| 9 | (\7\708-1S-13320) | PISTON SUB ASS'Y | 3240- | |
| 10 | (\7\708-1S-14210) | PLUG | 3240- | |
| 11 | (\7\708-1S-14220) | PLUG | 3240- | |
| 12 | (\7\07002-11223) | O-RING | 3240- | |
| 13 | (\7\708-1S-14230) | PISTON SUB ASS'Y | 3240- | |
| 14 | (\7\708-1S-14241) | SPRING | 3240- |
