| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2L-00151 | PUMP ASS'Y | 86930-94998 | ||
| 708-2L-00056 | PUMP ASS'Y | 84620-86929 | ||
| 708-2L-00054 | PUMP ASS'Y | 82758-84619 | ||
| 708-2L-00053 | PUMP ASS'Y | 82229-82757 | ||
| 708-2L-00052 | PUMP ASS'Y | 80001-82228 | ||

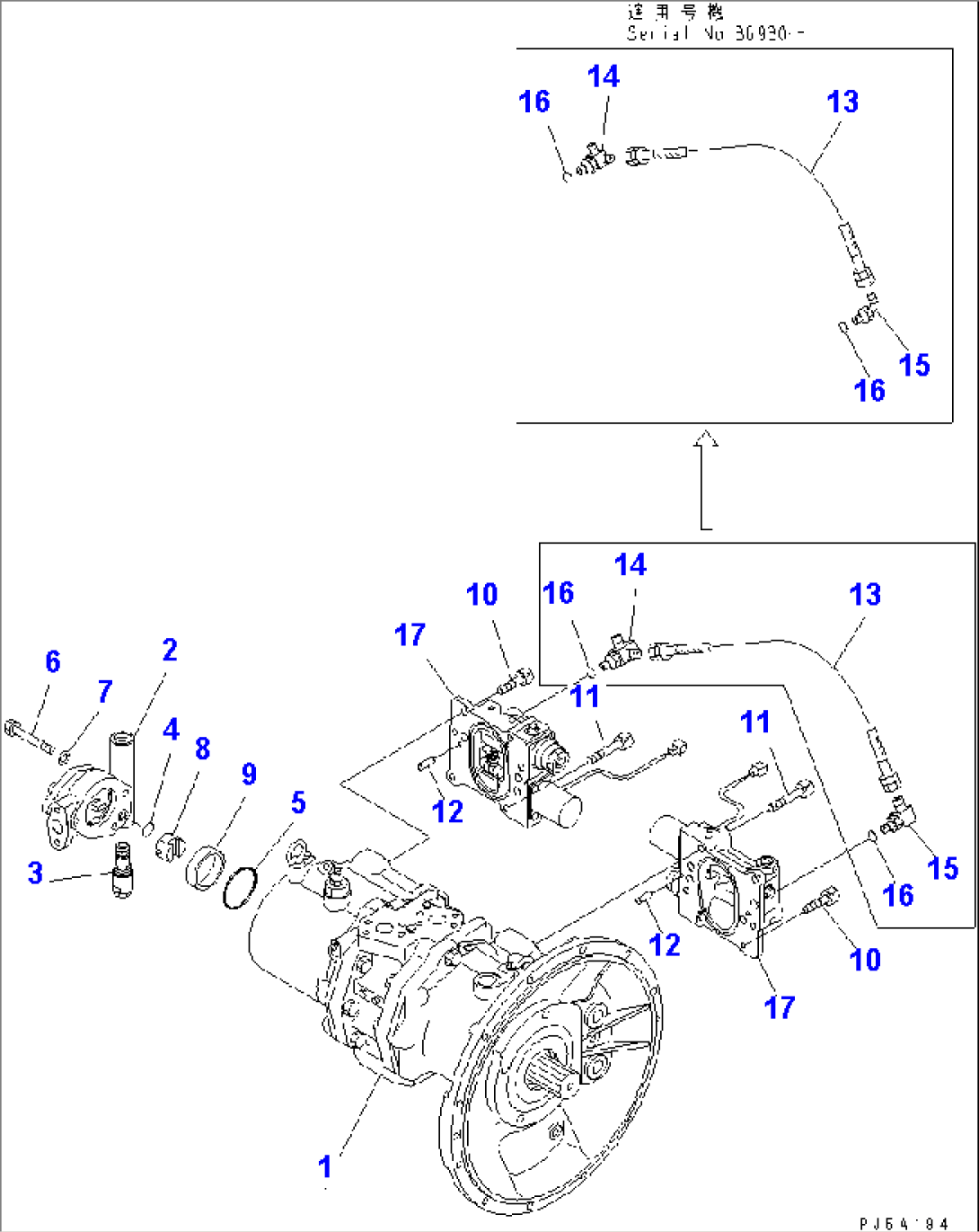

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-10A0C. | ||||
| 1 | (708-2L-01053) | PUMP SUB ASS'Y | 84620-@ | |
| 1 | (708-2L-01052) | PUMP SUB ASS'Y | 80001-84619 | |
| 2 | (704-24-24420) | GEAR PUMP ASS'Y | 80001-@ | |
| 3 | (708-2L-04312) | VALVE ASS'Y,RELIEF | 80001-@ | |
| 4 | 07000-02018 | O-RING | 80001-@ | |
| 5 | 07000-02070 | O-RING | 80001-@ | |
| 6 | 01010-81080 | BOLT | 80001-@ | |
| 7 | 01643-51032 | WASHER | 80001-@ | |
| 8 | 708-2L-29140 | COUPLING | 80001-@ | |
| 9 | 708-2L-29211 | COLLAR | 80001-@ | |
| 10 | 01252-61025 | BOLT | 80001-@ | |
| 11 | 01252-61065 | BOLT | 80001-@ | |
| 12 | 04020-00616 | PIN | 80001-@ | |
| 13 | 203-62-52390 | HOSE | 86930-@ | |
| 13 | 20Y-62-23170 | HOSE | 82229-86929 | |
| 13 | 20Y-62-22430 | HOSE | 80001-82228 | |
| 14 | 245-62-51510 | ELBOW | 86930-@ | |
| 14 | 20Y-62-22530 | TEE | 80001-86929 | |
| 15 | 07235-10210 | ELBOW | 86930-@ | |
| 15 | 207-62-33920 | ELBOW | 80001-86929 | |
| 16 | 708-2L-23950 | O-RING | 84620-@ | |
| 16 | 07002-01423 | O-RING | 80001-84619 | |
| 17 | (708-2L-03234) | SERVO VALVE ASS'Y | 84620-@ | |
| 17 | (708-2L-03232) | SERVO VALVE ASS'Y | 82758-84619 | |
| 17 | (708-2L-03231) | SERVO VALVE ASS'Y | 80001-82757 |
