| Item | Part No. | Part Name | Qty | Serial No. |
| 708-3S-00711 | PUMP ASS'Y | 16501- | ||

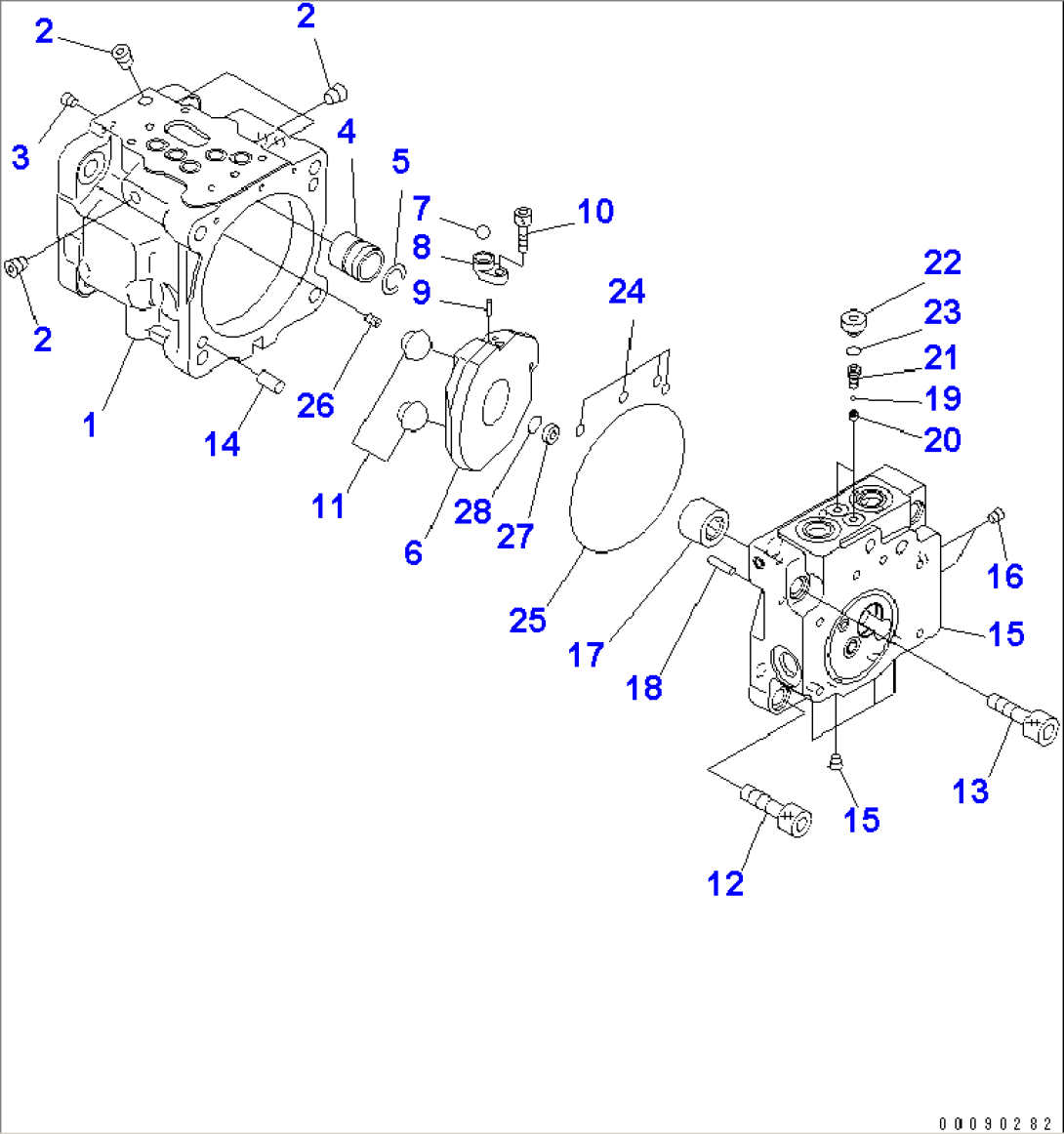

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-05A0. | ||||
| (\7\708-3S-01720) | PUMP SUB ASS'Y | 16501- | ||
| (\7\708-3S-04680) | CASE SUB ASS'Y | 16501- | ||
| 1 | \6\ | CASE,PUMP | 16501- | |
| 2 | \6\ | PLUG | 16501- | |
| 3 | \6\ | PLUG | 16501- | |
| 4 | \6\ | SLEEVE | 16501- | |
| 5 | \6\ | RING | 16501- | |
| 6 | (\7\708-3S-13480) | CAM,ROCKER | 16501- | |
| 7 | (\7\04260-01270) | BALL | 16501- | |
| 8 | (\7\708-3S-14140) | SPACER | 16501- | |
| 9 | (\7\708-1S-13420) | PIN | 16501- | |
| 10 | (\7\01252-60616) | BOLT | 16501- | |
| 11 | (\7\708-1T-33432) | BALL,RETAINER | 16501- | |
| 12 | (\7\01252-61235) | BOLT | 16501- | |
| 13 | (\7\01252-61255) | BOLT | 16501- | |
| 14 | (\7\04020-01024) | PIN | 16501- | |
| (\7\708-3S-04690) | CAP SUB ASS'Y | 16501- | ||
| 15 | \6\ | CAP,END | 16501- | |
| 16 | \6\ | PLUG | 16501- | |
| 17 | (\7\708-21-12760) | BEARING | 16501- | |
| 18 | (\7\720-68-19610) | PIN | 16501- | |
| (\7\708-3S-04610) | VALVE SUB ASS'Y | 16501- | ||
| 19 | \6\ | BALL | 16501- | |
| 20 | \6\ | SEAT | 16501- | |
| 21 | \6\ | PLUG | 16501- | |
| 22 | \6\ | PLUG | 16501- | |
| 23 | \6\ | O-RING | 16501- | |
| 24 | (\7\07000-11006) | O-RING | 16501- | |
| 25 | (\7\07000-12130) | O-RING | 16501- | |
| 26 | (\7\708-3T-11310) | ORIFICE | 16501- | |
| 27 | (\7\708-2L-25480) | FILTER | 16501- | |
| 28 | (\7\708-2L-25490) | O-RING | 16501- |
