| Item | Part No. | Part Name | Qty | Serial No. |

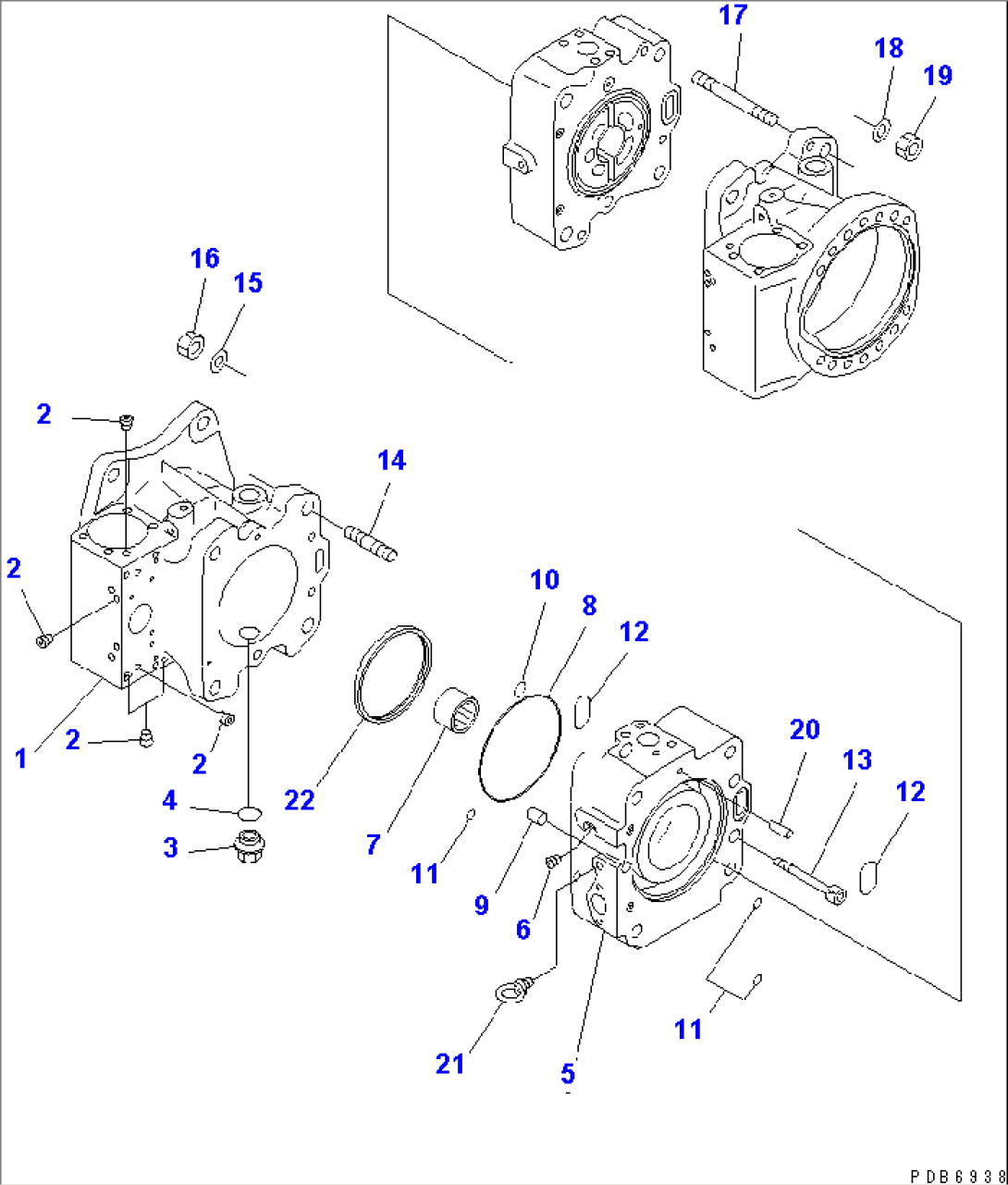

| 708-2L-00630 | PUMP ASS'Y | K30001-K31999 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-14A0. | ||||
| 708-2L-01530 | PUMP SUB ASS'Y | K30001-K31999 | ||
| (\7\708-2L-04950) | CASE ASS'Y,FRONT | K30001-K31999 | ||
| 1 | \6\ | CASE,FRONT | K30001-K31999 | |
| 2 | \6\ | PLUG | K30001-K31999 | |
| 3 | 07044-12412 | PLUG | K30001-K31999 | |
| 4 | 708-1W-28910 | O-RING | K30001-K31999 | |
| (\7\708-2L-04970) | END CAP ASS'Y,FRONT | K30001-K31999 | ||
| 5 | \6\ | CAP,END | K30001-K31999 | |
| 6 | \6\ | PLUG | K30001-K31999 | |
| 7 | (\7\708-2L-32260) | BEARING | K30001-K31999 | |
| 8 | (\7\07000-02135) | O-RING | K30001-K31999 | |
| 9 | (\7\6130-21-1910) | PIN,DOWEL | K30001-K31999 | |
| 10 | (\7\07000-B2015) | O-RING | K30001-K31999 | |
| 11 | (\7\07000-B1009) | O-RING | K30001-K31999 | |
| 12 | (\7\07000-03032) | O-RING | K30001-K31999 | |
| 13 | (\7\708-25-12530) | BOLT | K30001-K31999 | |
| 14 | (\7\01141-81620) | STUD | K30001-K31999 | |
| 15 | (\7\01643-31645) | WASHER | K30001-K31999 | |
| 16 | (\7\01582-01613) | NUT | K30001-K31999 | |
| 17 | (\7\01140-81645) | STUD | K30001-K31999 | |
| 18 | (\7\01643-31645) | WASHER | K30001-K31999 | |
| 19 | (\7\01582-01613) | NUT | K30001-K31999 | |
| 20 | (\7\720-68-19610) | PIN | K30001-K31999 | |
| 21 | 04530-01018 | BOLT,EYE | K30001-K31999 | |
| 22 | (\7\708-25-13630) | RING | K30001-K31999 |
