| Item | Part No. | Part Name | Qty | Serial No. |
| (708-2L-00750) | PUMP ASS'Y | K32001- | ||

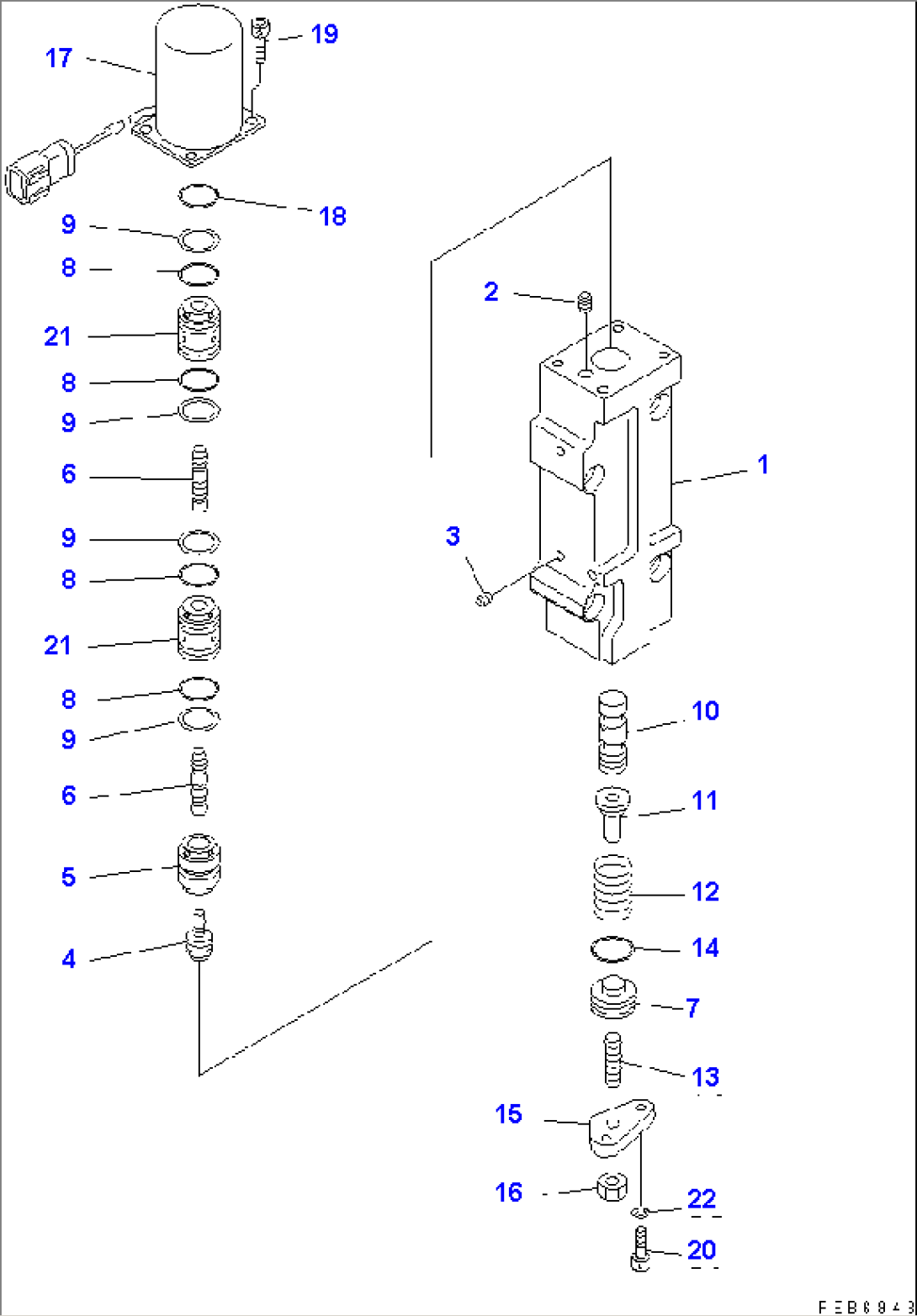

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A1 TO Y1600-18A1. | ||||
| 708-25-09160 | SERVO VALVE ASS'Y,FRONT | K32001- | ||
| 708-25-09360 | SERVO VALVE SUB A.,FRONT | K32001- | ||
| (\7\708-23-00411) | BODY ASS'Y | K32001- | ||
| 1 | \6\ | BODY,FRONT | K32001- | |
| 2 | \6\ | EXPANDER | K32001- | |
| 3 | (\7\708-25-15120) | PISTON | K32001- | |
| 4 | (\7\708-25-15130) | SEAT | K32001- | |
| 5 | (\7\708-25-25130) | SPRING | K32001- | |
| 6 | (\7\708-25-55250) | SPRING | K32001- | |
| 7 | (\7\708-23-15120) | SEAT | K32001- | |
| 8 | (\7\708-23-15160) | PLUG | K32001- | |
| 9 | (\7\07000-02018) | O-RING | K32001- | |
| 10 | (\7\708-25-15150) | COVER | K32001- | |
| 11 | (\7\01580-10806) | NUT | K32001- | |
| 12 | (\7\708-25-15320) | BOLT | K32001- | |
| 13 | (\7\01602-20619) | WASHER | K32001- | |
| 14 | (\7\708-25-55670) | PLUG | K32001- | |
| 15 | (\7\07002-02034) | O-RING | K32001- | |
| 16 | (\7\07239-12009) | NUT | K32001- | |
| 17 | (\7\708-25-15180) | SLEEVE | K32001- | |
| 18 | (\7\708-25-15280) | SPOOL | K32001- | |
| 19 | (\7\708-25-15310) | SPRING | K32001- | |
| 20 | (\7\708-25-15330) | SPACER | K32001- | |
| 21 | (\7\708-25-15430) | PLUG | K32001- | |
| 22 | (\7\708-25-15340) | SCREW | K32001- | |
| 23 | (\7\07000-02012) | O-RING | K32001- | |
| 24 | (\7\708-25-15250) | COVER | K32001- | |
| 25 | (\7\01580-10806) | NUT | K32001- | |
| 26 | (\7\708-25-15320) | BOLT | K32001- | |
| 27 | (\7\01602-20619) | WASHER | K32001- | |
| 28 | (\7\708-25-15260) | PLUG | K32001- | |
| 29 | (\7\07002-00823) | O-RING | K32001- | |
| 30 | (\7\708-25-15270) | ARM | K32001- | |
| 31 | (\7\708-25-15360) | PIN | K32001- | |
| 32 | (\7\708-25-15370) | WASHER | K32001- | |
| 33 | (\7\708-25-15380) | E-RING | K32001- |
