| Item | Part No. | Part Name | Qty | Serial No. |
| 708-2L-00501 | PUMP ASS'Y | 307377- | ||
| 708-2L-00500 | PUMP ASS'Y | 300001-307376 | ||

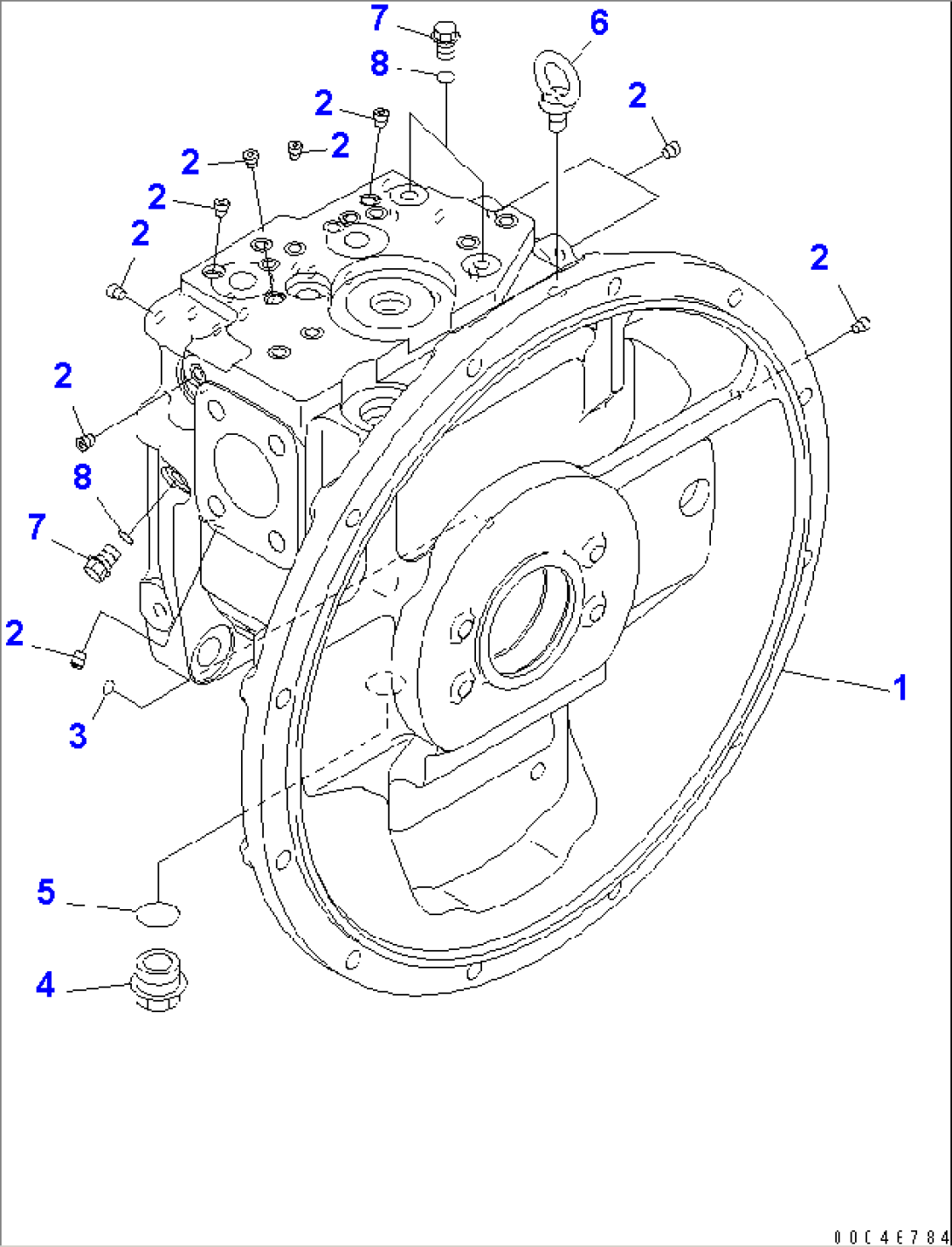

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0. | ||||
| 708-2L-01500 | PUMP SUB ASS'Y | 300001- | ||
| (\7\708-2L-06440) | CASE ASS'Y,FRONT | 300001- | ||
| 1 | \6\ | CASE,FRONT | 300001- | |
| 2 | \6\ | PLUG | 300001- | |
| 3 | 07000-B1009 | O-RING | 300001- | |
| 4 | 07044-12412 | PLUG | 300001- | |
| 5 | 07002-62434 | O-RING | 300001- | |
| 6 | 04530-11222 | BOLT,EYE | 300001- | |
| 7 | 708-8E-16150 | PLUG | 300001- | |
| 8 | 07002-61023 | O-RING | 300001- |
