| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (708-2H-00450) | PUMP ASSEMBLY | K50484- | |

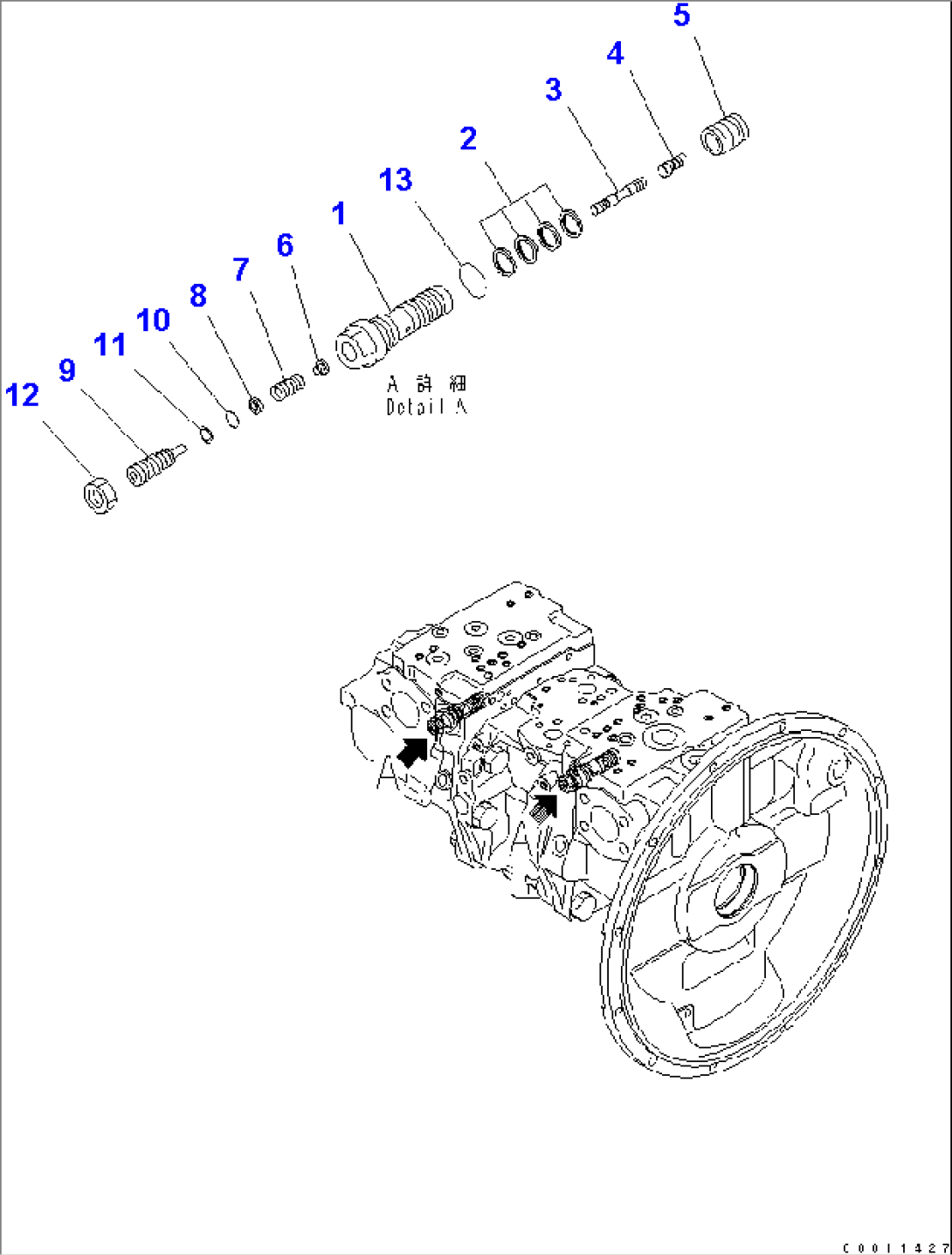

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 T0 Y1600-11A0. | ||||
| 1 | 708-2H-03610 | VALVE ASSEMBLY, LS | K50484- | |
| 1 | (\7\708-2L-35311) | SLEEVE | K50484- | |
| 2 | 708-2L-24680 | SEAL | K50484- | |
| 3 | (\7\708-2G-15412) | SPOOL | K50484- | |
| 4 | (\7\708-2L-28540) | PISTON | K50484- | |
| 5 | (\7\708-2L-35360) | SLEEVE | K50484- | |
| 6 | (\7\708-2L-35331) | SEAT | K50484- | |
| 7 | (\7\708-2L-35410) | SPRING | K50484- | |
| 8 | (\7\708-2L-35341) | SEAT | K50484- | |
| 9 | (\7\708-2L-35351) | PLUG | K50484- | |
| 10 | (\7\07000-B1009) | O-RING | K50484- | |
| 11 | (\7\07001-01009) | RING, BACK-UP | K50484- | |
| 12 | 01583-11408 | NUT | K50484- | |
| 13 | 07002-62434 | O-RING | K50484- |
