| Item | Part No. | Part Name | Qty | Serial No. |
| \0.99 | 723-2B-50201 | CONTROL VALVE, ASSEMBLY | F80210- | |
| 1 | 723-20-63300 | VALVE, RELIEF | F80210- | |
| 2 | 700-22-11410 | O-RING | F80210- | |
| 3 | 700-80-64220 | RING | F80210- | |
| 4 | 07002-12434 | O-RING | F80210- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc88mr 8 s/n f80003 up
- Hydraulic system
- Main control valve, for machine with 2 piece boom, inner parts (11/24)
Поиск по каталогу

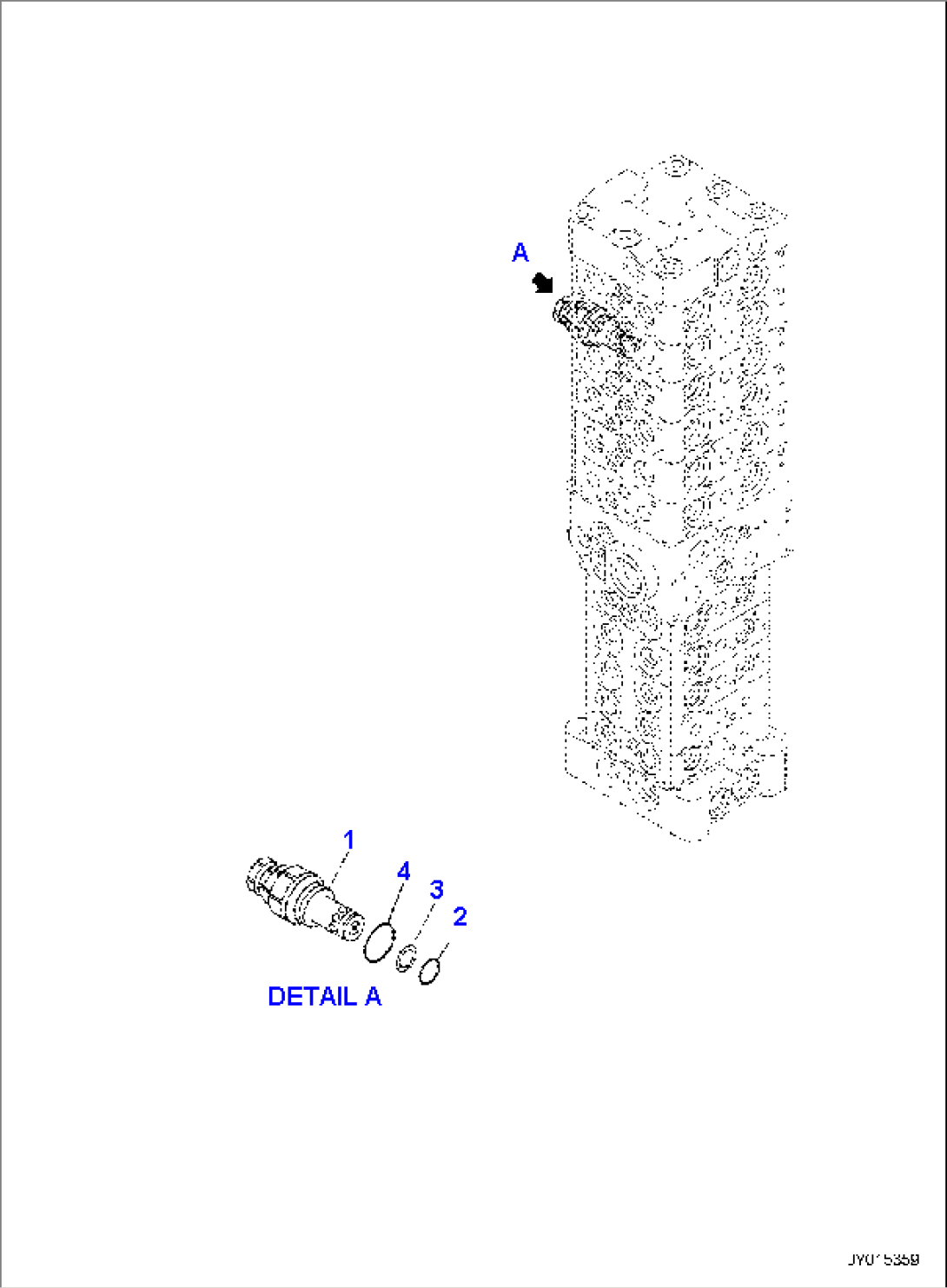

MAIN CONTROL VALVE, FOR MACHINE WITH 2-PIECE BOOM, INNER PARTS (11/24)
