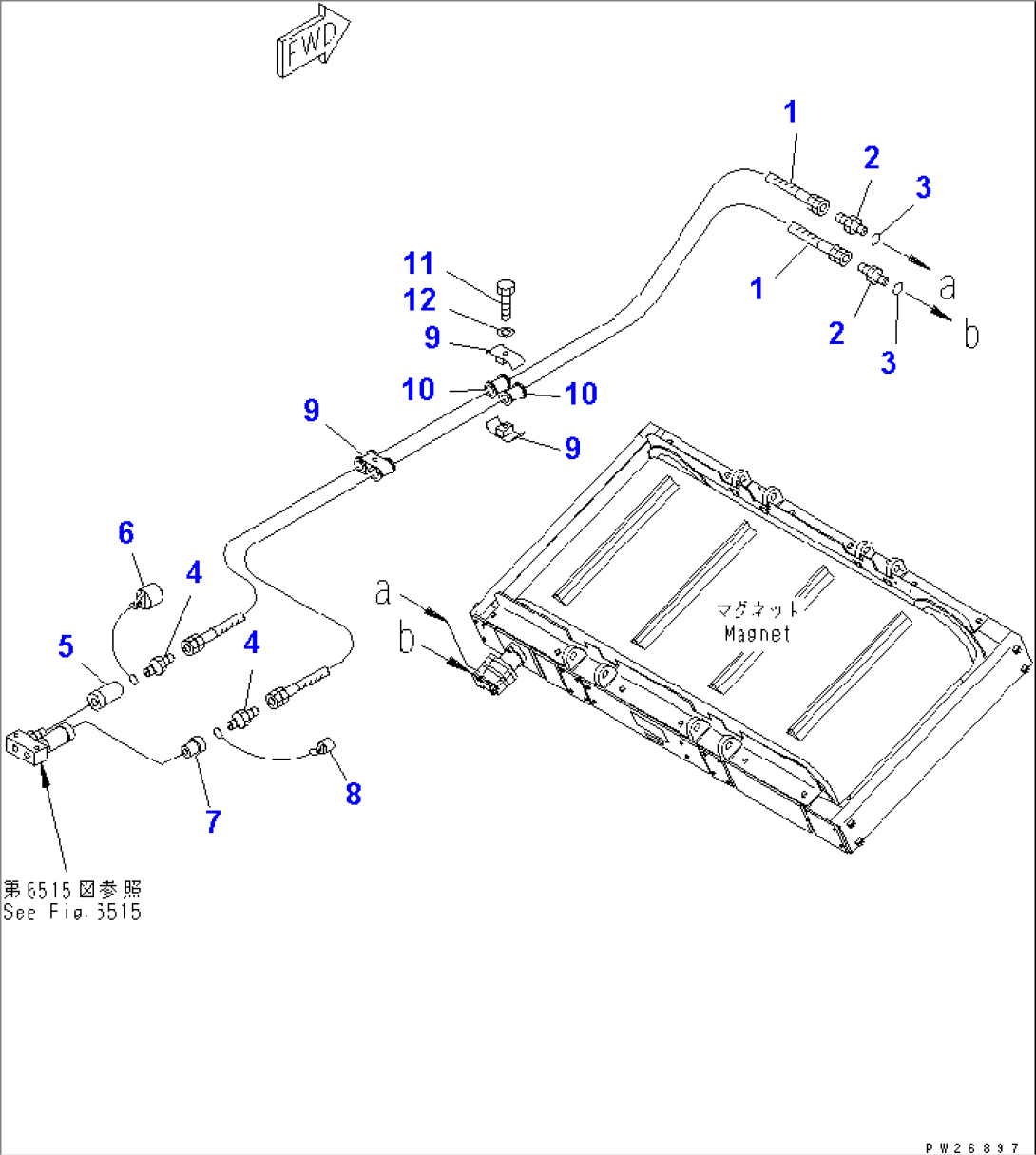

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07123-00325 | HOSE | 1002- | |
| 2 | 209-38-12450 | NIPPLE | 1002- | |
| 3 | 07000-12018 | O-RING | 1002- | |
| 4 | 176-62-12510 | NIPPLE | 1002- | |
| 5 | 8221-78-1160 | COUPLER | 1002- | |
| 6 | 8221-78-1210 | CAP | 1002- | |
| 7 | 8221-78-1150 | COUPLER | 1002- | |
| 8 | 8221-78-1190 | CAP | 1002- | |
| 9 | 07094-20315 | CLAMP | 1002- | |
| 10 | 07095-00318 | CUSHION | 1002- | |
| 11 | 01010-81260 | BOLT | 1002- | |
| 12 | 01643-31232 | WASHER | 1002- |
