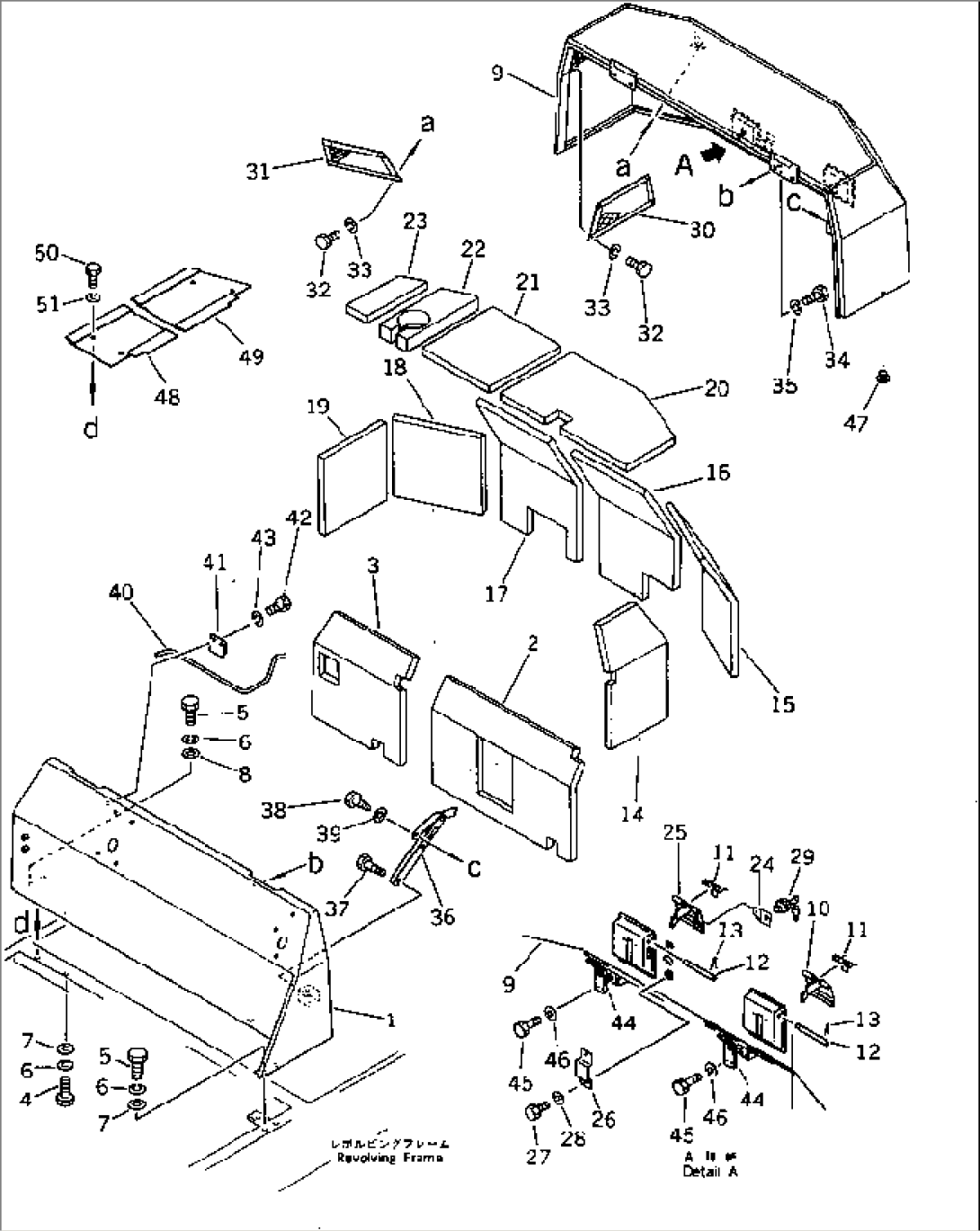

MACHINE CAB (2/2) (USA SPEC.)

MACHINE CAB (2/2) (USA SPEC.)
ItemPart No.Part NameQtySerial No.
20S-54-21300COVER ASS'Y18001-
120S-54-21310COVER18001-
220S-54-21330SHEET18001-
320S-54-21340SHEET18001-
401010-51025BOLT18001-
501010-51030BOLT18001-
601602-21030WASHER,SPRING18001-
701643-31032WASHER18001-
801643-31232WASHER18001-
20S-54-25100HOOD ASS'Y18001-
920S-54-25110HOOD18001-
1020S-54-21450LEVER18001-
1120T-54-26430SPRING18001-
1220S-54-21460PIN18001-
1304050-13018PIN,COTTER18001-
1420S-54-21210SHEET18001-
1520S-54-21220SHEET18001-
1620S-54-21430SHEET18001-
1720S-54-25120SHEET18001-
1820S-54-21250SHEET18001-
1920S-54-21260SHEET18001-
2020S-54-21270SHEET18001-
2120S-54-21280SHEET18001-
2220S-54-21290SHEET18001-
2320S-54-21350SHEET18001-
2420R-54-23240PLATE18001-
2520S-54-25130LEVER18001-
2620T-54-28130COVER18001-
2701010-50812BOLT18001-
2801643-30823WASHER18001-
29205-54-63730LOCK ASS'Y18001-
3020S-54-21120COVER18001-
3120S-54-21130COVER18001-
3201010-50816BOLT18001-
3301602-20825WASHER,SPRING18001-
3401010-51020BOLT18001-
3501602-21030WASHER,SPRING18001-
3620R-54-21430STAY18001-
3720R-54-21440BOLT18001-
3820R-54-21450BOLT18001-
3907005-01412GASKET18001-
4020S-54-21142BAR18001-
4120S-54-21160BRACKET18001-
4201010-51020BOLT18001-
4301602-21030WASHER,SPRING18001-
4420R-54-21170LOCK18001-
4501010-51025BOLT18001-
4601602-21030WASHER,SPRING18001-
47203-54-32260STOPPER18001-
4820S-54-21380COVER18001-
4920S-54-21390COVER18001-
5001010-51020BOLT18001-
5101602-21030WASHER,SPRING18001-
5220S-54-21170CLIP,(NOT SHOWN)18001-
