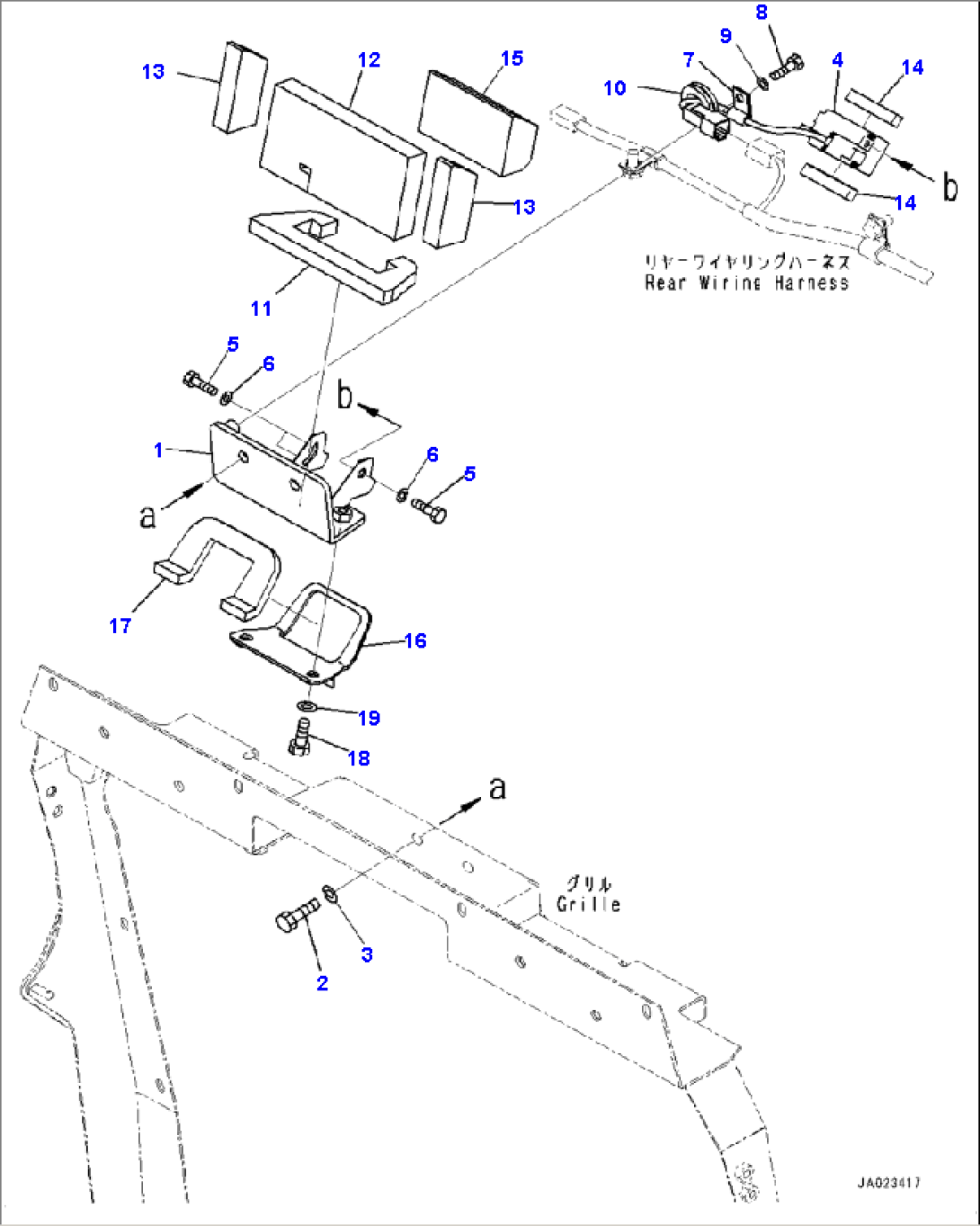

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-54-62131 | BRACKET | ||
| 2 | 01010-81025 | BOLT | ||
| 3 | 01643-31032 | WASHER | ||
| 4 | 7835-33-2001 | CAMERA | ||
| 5 | 01010-80620 | BOLT | ||
| 6 | 01643-30623 | WASHER | ||
| 7 | 04434-50608 | CLIP | ||
| 8 | 01010-80816 | BOLT | ||
| 9 | 01643-30823 | WASHER | ||
| 10 | 207-54-16860 | GROMMET | ||
| 11 | 418-54-62641 | SEAL | ||
| 12 | 418-54-62651 | SEAL | ||
| 13 | 418-54-62661 | SEAL | ||
| 14 | 419-54-63340 | SEAL | ||
| 15 | 419-54-63360 | SEAL | ||
| 16 | 419-54-63320 | COVER | ||
| 17 | 419-54-63330 | SEAL | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | 01643-31032 | WASHER |
