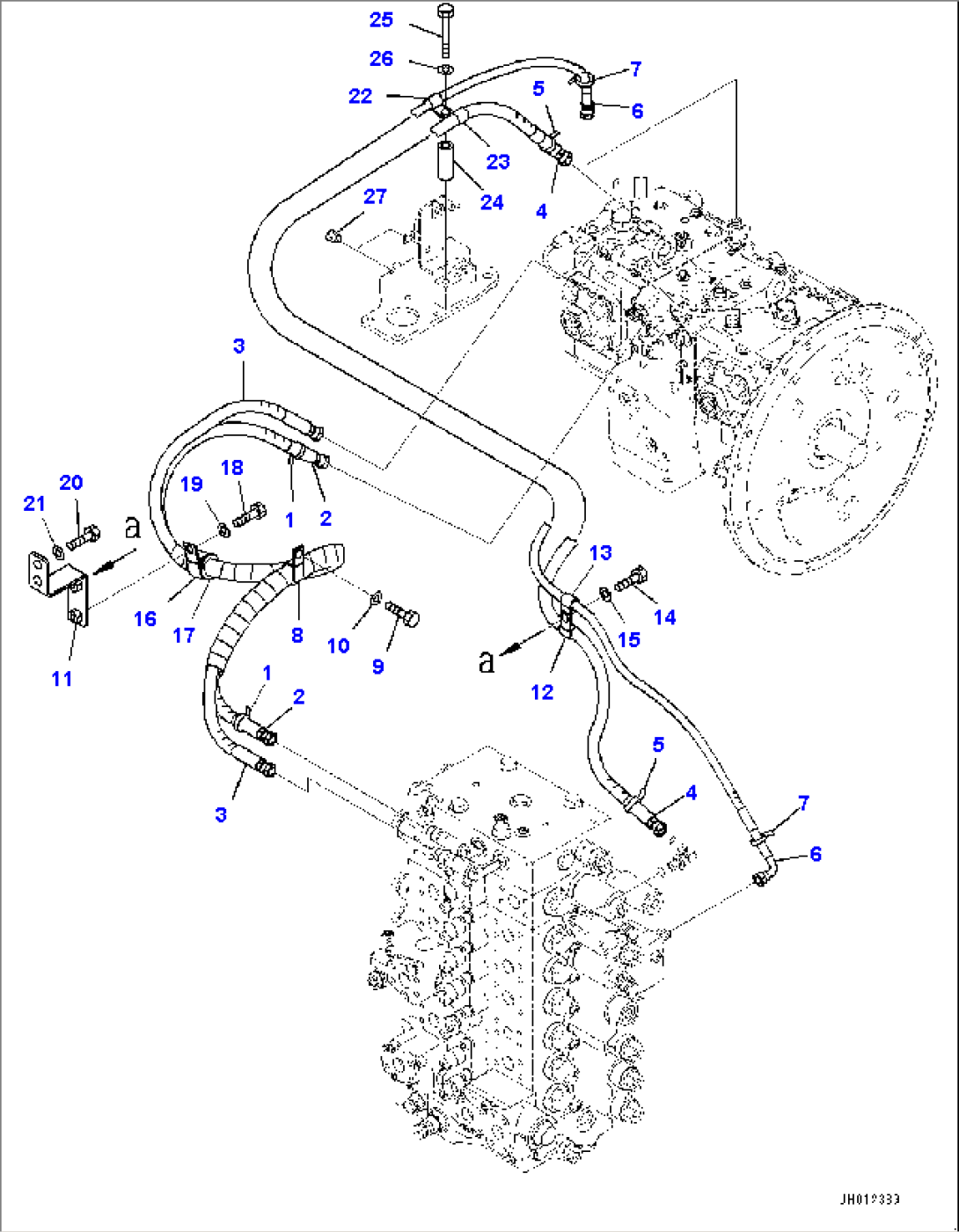

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-22790 | Band, Red | 35001- | |
| 2 | 2A6-62-11750 | Hose | 35001- | |
| 3 | 2A6-62-11760 | Hose | 35001- | |
| 4 | 2A6-62-11731 | Hose | 35001- | |
| 5 | 20Y-62-22820 | Band, Blue | 35001- | |
| 6 | 2A6-62-11771 | Hose Assembly | 35010- | |
| 7 | 20Y-62-22810 | Band, Yellow | 35001- | |
| 8 | 04435-51712 | Clip | 35001- | |
| 9 | 01010-81225 | Bolt | 35001- | |
| 10 | 01643-31232 | Washer | 35001- | |
| 11 | 2A6-62-11780 | Bracket | 35001- | |
| 12 | 04434-51512 | Clip | 35001- | |
| 13 | 04434-51212 | Clip | 35001- | |
| 14 | 01010-81225 | Bolt | 35001- | |
| 15 | 01643-31232 | Washer | 35001- | |
| 16 | 113-899-7950 | Clip | 35001- | |
| 17 | 07095-20627 | Cushion | 35001- | |
| 18 | 01010-81225 | Bolt | 35001- | |
| 19 | 01643-31232 | Washer | 35001- | |
| 20 | 01010-81225 | Bolt | 35001- | |
| 21 | 01643-31232 | Washer | 35001- | |
| 22 | 04434-51212 | Clip | 35001- | |
| 23 | 04434-51512 | Clip | 35001- | |
| 24 | 175-61-17240 | Collar | 35001- | |
| 25 | 01010-81285 | Bolt | 35001- | |
| 26 | 01643-31232 | Washer | 35001- | |
| 27 | 07049-01012 | Plug | 35001- |
